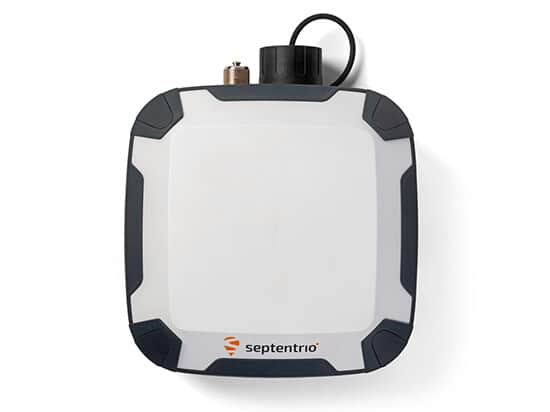

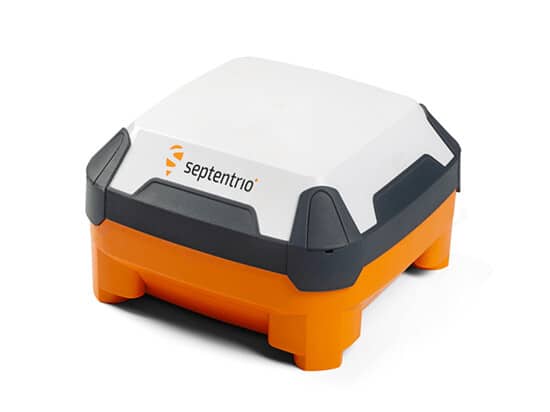

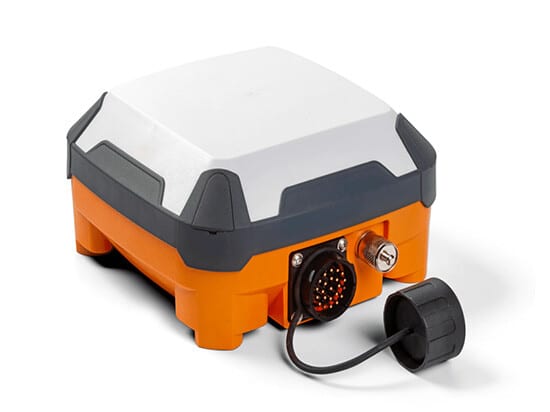

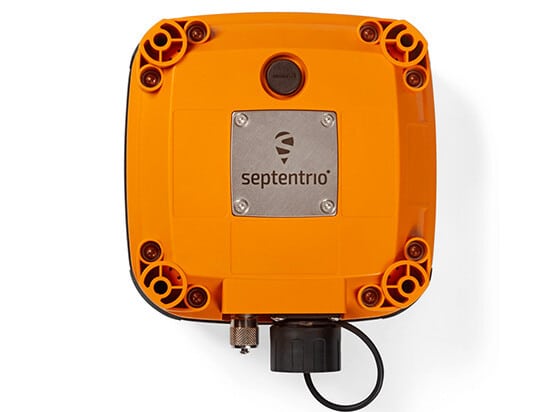

AntaRx-S3 GNSS Smart Antenna
The AntaRx-S3 smart antenna from Septentrio is designed to be strong inside and out. The receiver is protected by high impact resistance polycarbonate housing with IP69K sealing. On the inside, proprietary technology and advanced algorithms ensure robust tracking despite heavy vibrations or shocks. Septentrio core technology provides RTK, perfected over the last 20 years to deliver a high level of positioning accuracy. Choose the best fit for your system with either single or dual antenna modes for heading & pitch or heading and roll angles, 4G cell option or GNSS/INS version. Adding an auxiliary GNSS antenna to your receiver enables heading and pitch or heading and roll measurements without the need for movement.
Septentrio Proprietary Features
Mechanical vibrations or shocks caused by rough terrain can wreak havoc with satellite tracking. LOCK+ automatically adjusts the parameters of this receiver so you never lose position.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Metal and large nearby structures can reflect GNSS signals and produce multipath. The APME+ system effectively disentangles direct and reflected signals enhancing both position and measurement quality. APME+ is bias free and, in line with Septentrio’s commitment to maximum configurability, can be disabled.
