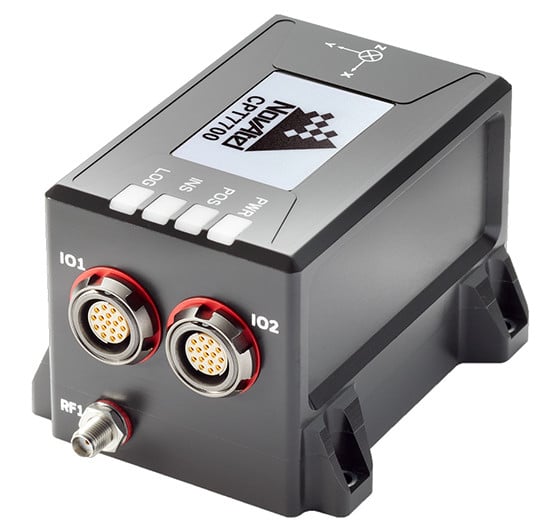

Single-antenna CPT7700 enclosure with GNSS+INS technology
Single-antenna CPT7700 enclosure with GNSS+INS technology
Item #: CPT7700

CPT7700 Single-Antenna Enclosure with GNSS+INS

The NovAtel CPT7700 is an Integrated receiver, and MEMS IMU which provides tactical grade performance for unmanned vehicles, mobile mapping and other commercial and military guidance applications. The CPT7700 is a small, lightweight and low-power solution with multiple communication interfaces for easy integration on various platforms. The deep coupling of GNSS and INS measurements enhances satellite tracking, enabling continuous positioning.

Request Info / Pricing
SKU: CPT7700 Categories: , , , , Manufacturer: NovAtel

NovAtel Single-Antenna CPT7700 Enclosure with GNSS+INS Technology

The CPT7700 from NovAtel is an ultra-compact enclosure containing an OEM7700 receiver from NovAtel and a high-performing Honeywell HG4930 Micro Electromechanical System (MEMS) Inertial Measurement Unit (IMU) to support leading-edge SPAN technology from NovAtel in an integrated, single enclosure solution. The accuracy of Global Navigation Satellite System (GNSS) positioning and the stability of IMU gyro and accelerometer measurements are deeply coupled to provide an exceptional 3D navigation solution with reliable velocity and attitude measurements. The internal OEM7700 receiver offers simultaneous tracking of multi-GNSS signals across all frequencies.

It provides tactical grade performance for unmanned vehicles, mobile mapping and other commercial and military guidance applications. The CPT7700 is a small, lightweight and low-power solution with multiple communication interfaces for easy integration on various platforms. The deep coupling of GNSS and INS measurements enhances satellite tracking and enables continuous positioning.

Features

  • MEMS gyro and accelerometers
  • SPAN GNSS+INS capability with configurable application profiles
  • Dedicated wheel sensor input (DMI)
  • Advanced interference mitigation features
  • Purchasable upgrade for high IMU data rate (up to 400 Hz)
  • Internal data logging and transfer (16 GB)
  • Four receiver status LEDs
  • Event in and event out to support 1 PPS
  • Multiple communication interfaces
  • Commercially exportable system (non-ITAR)

NovAtel Single-antenna CPT7700 enclosure with GNSS+INS technology Datasheet

GNSS-INS Enclosure

Model Description
CPT7700-DFN-RN N-TBE-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+QZSS, L 1/L2/L3/L5, SBAS L 1/LS Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU includes GLIDE & RAIM.
CPT7700-DFN-RNN-TBN-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+QZSS, L 1/L2/L3/L5, SBAS L 1/LS Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
Includes GLIDE & RAIM.
CPT7700-DFN-RYN-TBN-P 1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+QZSS, L 1/L2/L3/L5, SBAS L 1/LS Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
--Includes GLIDE & RAIM
CPT7700-DFN-RZN-TBN-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+QZSS, L 1/L2/L3/L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
Includes GLIDE & RAIM.
CPT7700-FFN-RNN-TBE-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
Includes GLIDE & RAIM.
CPT7700-FFN-RNN-TBE-P2 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL +BDS+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN enabled with Relative INS + Profiles (includes Heave), Mid Grade Tactical IMU
Includes GLIDE & RAIM.
CPT7700-FFN-RN N-TBN-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL +BDS+QZSS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU Includes GLIDE & RAIM
CPT7700-FFN-RNN-TBN-P2 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Mid Grade Tactical IMU
Includes GLIDE & RAIM.
CPT7700-FFN-RZN-TBN-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
Includes GLIDE & RAIM.
CPT7700-FFN-RZN-TBN-P2 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS+QZSS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B21/B2a/B2b, NavlC L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Mid Grade Tactical IMU
Includes GLIDE & RAIM.
CPT7700-GFN-RYN-TBN-P 1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+QZSS, L 1/L2/L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU includes GLIDE & RAIM.
CPT7700-GFN-RZN-TBN-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+QZSS, L 1/L2/L5, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU Includes GLIDE & RAIM.
CPT7700-GSN-NNN-NNN SPAN CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. Hardware only, requires firmware upgrade to produce output.
CPT7700-TFN-RZN-TBE-P1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU
Includes GLIDE & RAIM.
CPT7700-TFN-RZN-TBN-P 1 CPT7 single antenna enclosure containing OEM7700 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+QZSS,
L 1/L2/L5/E1/E5a/E5b/AltBOC, SBAS L 1/L5 Single Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU Includes GLIDE & RAIM.
CPT7700-FDN-RNN-TBN-P 1 (Dual-Frequency) CPT7700, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled,
Profiles/Heave enabled,_ Entry level IMU
