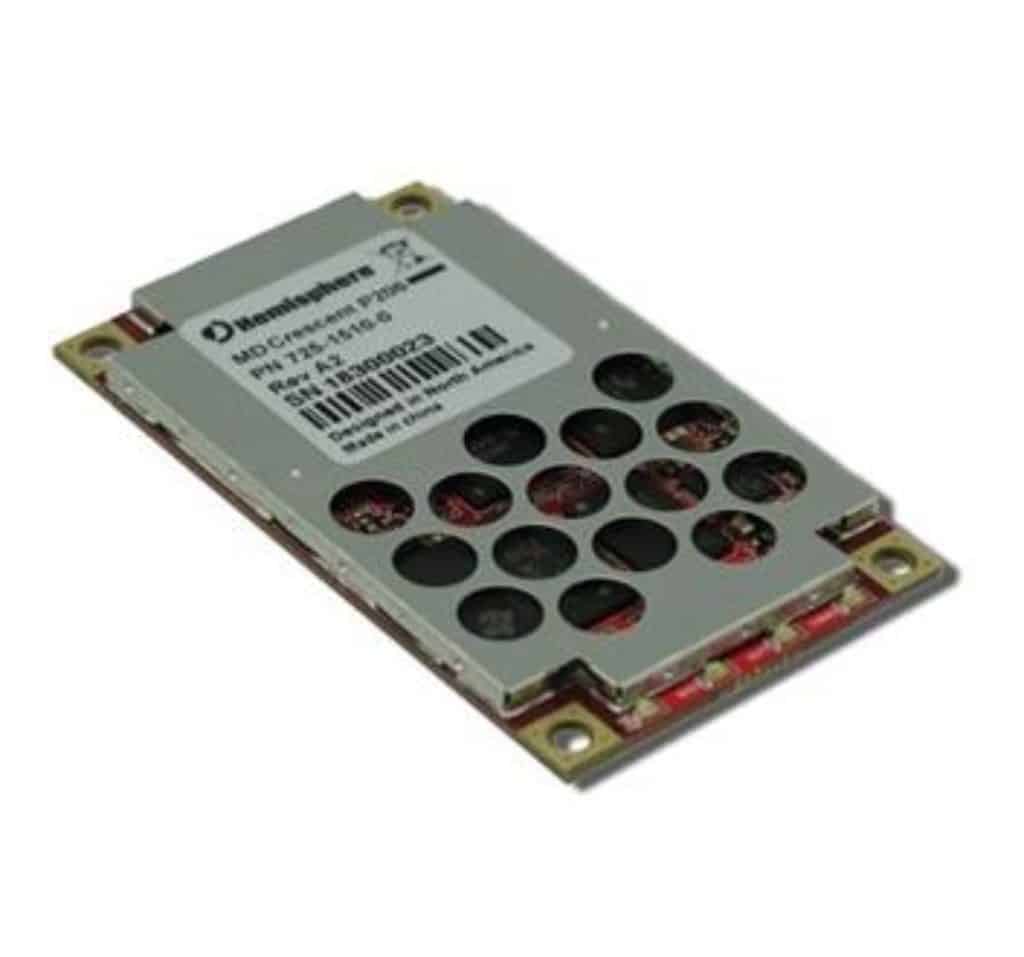

Crescent P206™ AND P207™ GNSS OEM Boards

Hemisphere has announced that these products are nearing the end of life (see EOL Notice) and will not take orders after December 31, 2021 for the P206 and April 30, 2021 for the P207. Hemisphere is recommending the Phantom 34 as a replacement for the P206 and the Phantom 20 as a replacement for the P207. Please refer to the Related Products tab for details about those products, or contact us for help.

Hemisphere GNSS’ new Crescent P206 and P207 OEM modules use GPS, GLONASS, and BeiDou, and are Galileo and QZSS ready.

SKU: P206P207 Categories: , , Manufacturer: Hemisphere GNSS

Hemisphere Crescent P206 AND P207 GNSS OEM Boards

Hemisphere GNSS’ Crescent P206 and P207 OEM modules use GPS, GLONASS, and BeiDou, and are Galileo and QZSS ready. Track more signals in challenging environments, and take advantage of a compact size and easy integration.

The 34-pin P206 module is a drop-in upgrade for many Hemisphere products. The P207 is a drop in upgrade for existing Crescent designs using standard 20-pin modules from other manufacturers.

DGPS and SBAS with patented COAST software enables Hemisphere receivers to use previous DGPS and SBAS correction data during times of interference, signal blockage and weak signal. The receiver will coast and continue to maintain sub-meter positioning for up to 40 minutes without any DGPS signal. When your corrections are only for one GNSS constellation, for example GPS using SBAS, Hemisphere’s patented SureTrack engages to model all other satellites, helping to maintain an accurate solution in challenging environments.

Key Features:

  • Single frequency, multi-constellation solution with up to 20 Hz update rate
  • Uses GPS, GLONASS and BeiDou; Galileo and QZSS ready
  • Fast start-up and reacquisition times
  • Differential positioning accuracy of 60 cm, 95% of the time
  • Exclusive e-Dif option where other differential signals are not practical
  • COAST and SureTrack maintain sub-meter DGNSS positioning for 40 minutes after correction loss
  • Small form and low-power consumption design is ideal for easy integration

Crescent Firmware Options

  • Crescent 10 Hz activation
  • Crescent 20 Hz activation
  • Crescent RTCM Base activation
  • Crescent L-Dif activation
  • Crescent RTK activation
  • Crescent mGNSS activation

Hemisphere GPS Crescent P206 and P207

Hemisphere P206 End of Life (EOL) Notice

Hemisphere P207 End of Life (EOL) Notice
