Item #: P328

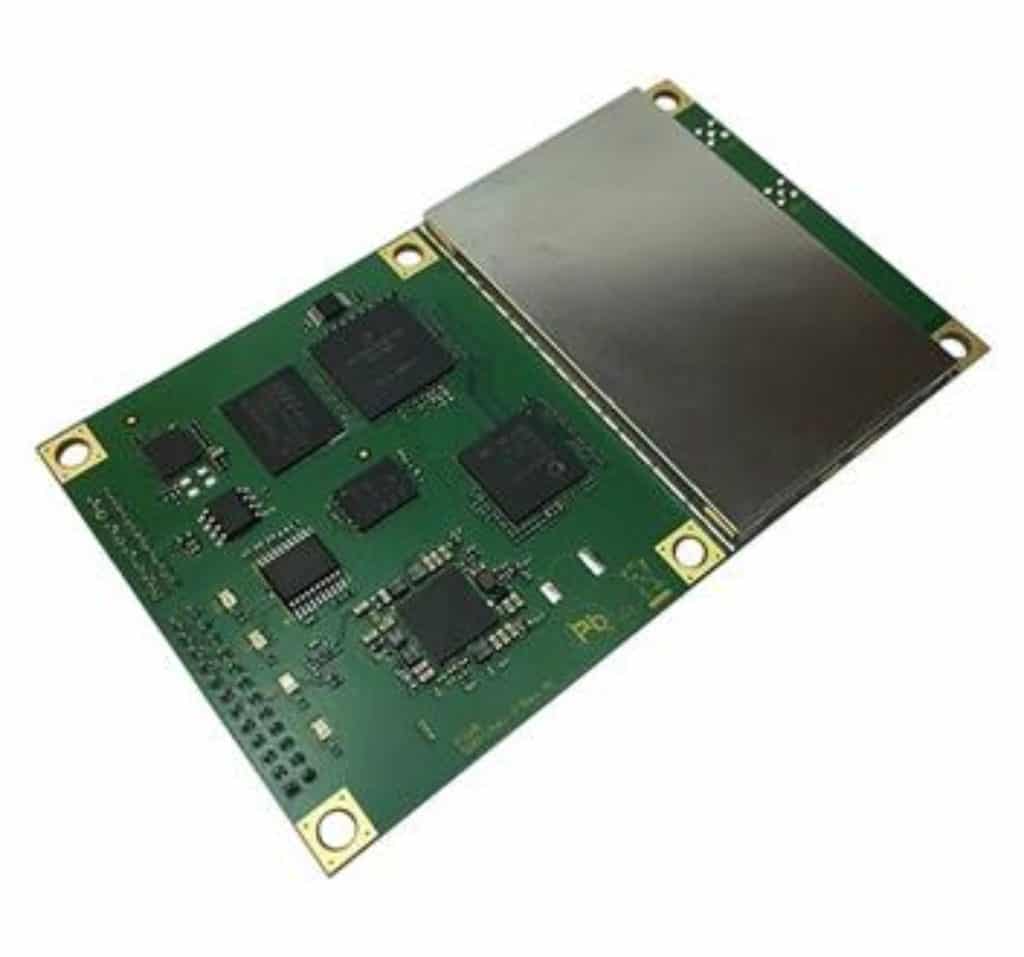

Eclipse P328 OEM Board

The manufacturer has issued an end of life notice for this product. Hemisphere is recommending the Phantom 40 OEM GNSS Receiver as a replacement. Please refer to the Related Products tab for details about that product, or contact us for help.

The Hemisphere GNSS Eclipse P328 OEM board is a multi-frequency, multi-constellation GNSS solution, allowing you to track more signals and take advantage of multi-frequencies at low-power.

SKU: 940-4088-0 Categories: , , Manufacturer: Hemisphere GNSS

Eclipse P328 OEM Board

Hemisphere GNSS new Eclipse P328 OEM board enables simultaneous tracking of all satellite signals including GPS, BeiDou, GLONASS, Galileo, QZSS, and L-band making it a robust and reliable solution for survey, mapping, and machine control. The power management system efficiently governs the processor, memory, and ASIC making it ideal for multiple integration applications.

The P328 is a highly accurate and reliable OEM board with three advanced Hemisphere technology features: SureFix™, aRTK™, and Tracer™.

  1. SureFix, is Hemisphere’s advanced processor. It delivers high-fidelity RTK quality information with guaranteed precision and virtually 100% reliability.
  2. Hemispheres all-new aRTK technology, powered by Atlas, allows the Eclipse P328 to operate with RTK accuracies when RTK corrections fail.
  3. Tracer utilizes specialized algorithms to sustain positioning in the absence of corrections data.

Features

Experience Unparalleled Accuracy and Reliability with MultiFrequency, Multi-GNSS RTK and Onboard Atlas L-Band

  • Uses GPS, GLONASS, BeiDou, Galileo, and QZSS
  • Long-range RTK baselines up to 50 km with fast acquisition times
  • Compatible with many RTK sources including Hemisphere GNSS ROX Format,  RTCM, CMR, CMR
  • Mechanically and electrically (pin-for-pin) compatible with many other  manufacturers modules
  • Atlas L-band corrections providing position accuracy down to 2 cm RMS, positioning sustainability with Tracer technology, and convergence
  •  time as low as 10 minutes
  • Athena GNSS engine providing best-in- class RTK performance
  • Serial, USB, Ethernet, and CAN support for ease of use and integration

Scalable

Scalable and field upgradable with all Hemisphere GNSS software and service options.

Easy Migration

Easily upgradable from other manufacturer’s modules.

Eclipse Firmware Options

  • Eclipse 10 Hz activation
  • Eclipse 20 Hz activation
  • Eclipse 50 Hz activation
  • Athena dFreq activation
  • Eclipse dFreq activation
  • Eclipse mGNSS activation
  • Eclipse RTK activation

Hemisphere GNSS Eclipse P328 OEM Board Datasheet

End of Life Notice for P328 OEM GNSS Receiver
