MIL-NLDCBS1X3 GPS Passive Mil-Spec 1X3 Splitter


GPS Passive Mil-Spec 1X3 Splitter is certified for EMI-Mil Std 461/462 and Environment-Mil Std 810F and is provides antenna voltage from a Mil DC connector.

View Full Description
SKU: MIL-NLDCBS1X3 Categories: , , , Manufacturer: GPS Networking

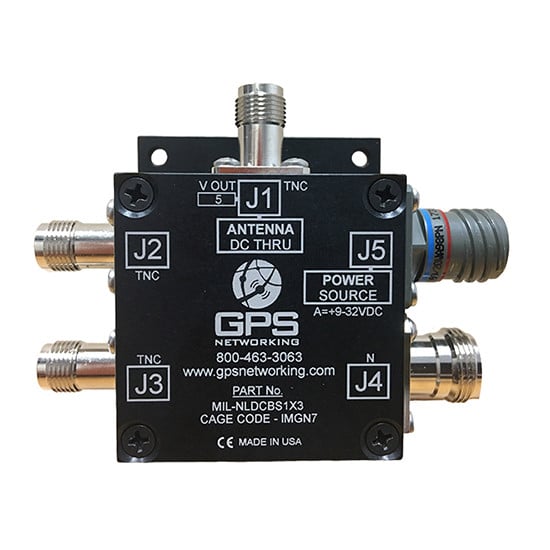

GPS Networking MIL-NLDCBS1X3 Passive Splitter

The MIL-NLDCBS1X3 GPS Splitter is a one input, three output device. The frequency response covers GPS L1, L2, L5, Galileo, and GLONASS bands with excellent gain flatness. The unit is completely MIL Qualified. It will accept any DC voltage from 8-32 VDC which is regulated down to 5VDC to power the GPS Antenna. The 5 VDC is sent to the antenna via the center conductor on the antenna port. The RF outputs (J2, J3, and J4) are DC Blocked with a 200 ohm load to simulate antenna current draw. The J2 and J3 ports are TNC connectors and the J4 port is a type N Connector.
These products are specifically designed for military applications, these products are hermetically sealed, EMI shielded, and virtually indestructible. Please see the documents tab above for certification and testing information.
  • Excellent Gain Flatness: |L1 L2| < 0.5dB
  • Extremely Flat Group Delay: Less that 1ns variation
  • Phase Matched Outputs: Phase (J1 J2) < 1.0°
We have worked with GPS Networking for many years. They are a  quality manufacturer of RF networking and DAS (distributed antenna systems) products. Contact us. We can help you with product specifics and information about connector types and other requirements for your project.

If you chose networking, you must also choose power options. Please review this explanation of your power options.

For military power options, please download this PDF: Military Power Options (MC vs MC28)
