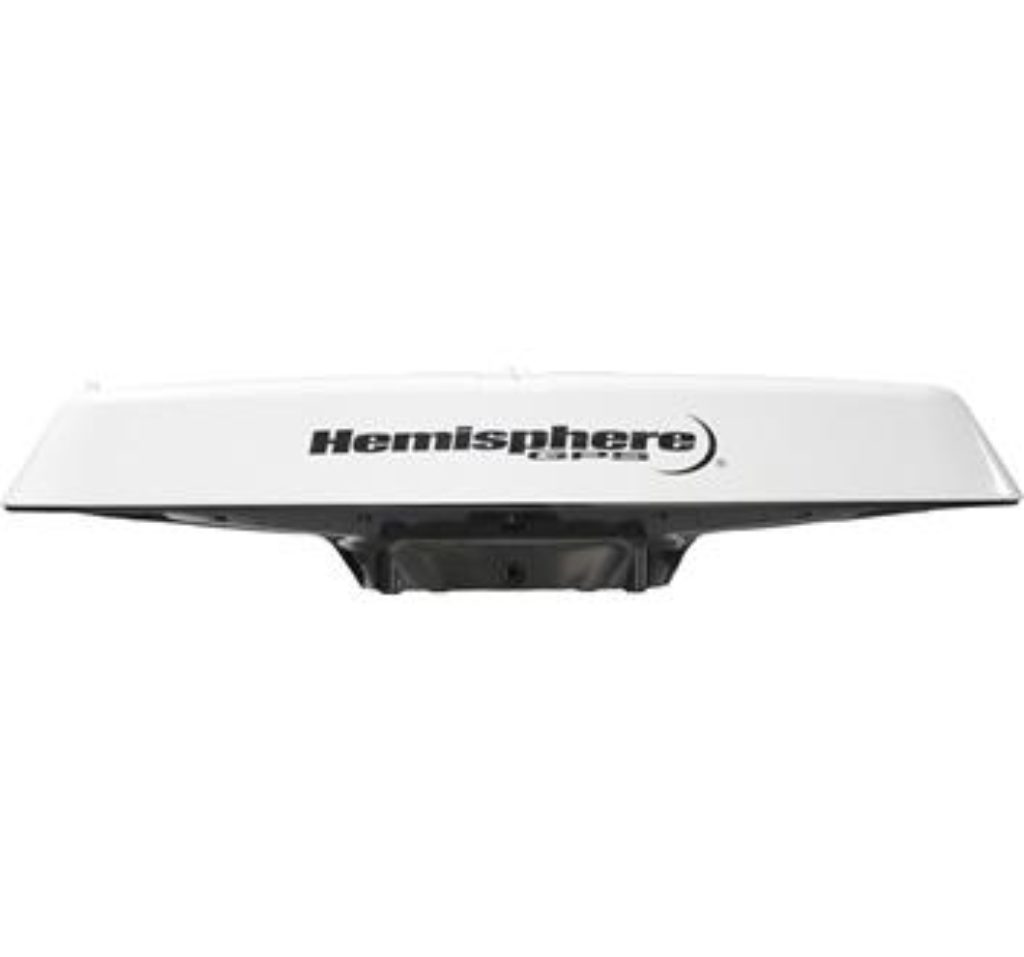

Hemisphere GPS Vector V103 and V113 Compass SMART Antennas

This product has been discontinued by the manufacturer. Please see the related items for replacement options or contact us.

The Hemisphere GNSS Vector V103 and V113 Compass SMART antennas utilize Hemisphere GNSS’ Crescent and Vector technology to deliver accurate positioning and heading.

SKU: 940-3094-0, 940-3095-0 Categories: , , , Manufacturer: Hemisphere GNSS

Vector V103 and V113â„¢ Compass SMART Antennas

This product has been discontinued by the manufacturer. Please see the related items for replacement options or contact us.

The Hemisphere GNSS Vector V103 and V113™ Compass SMART antennas utilize Crescent® and Vector technology. Cross-Dipole low-multipath antennas are separated by 50 cm between phase centers, resulting in better than 0.3 rms heading performance while delivering position accuracy of better than 60 cm 95% of the time when using SBAS (EGNOS, MSAS, & WAAS) or Beacon corrections.

The V103 and V113 DGPS heading SMART antennas support both NMEA 0183 and NMEA 2000 interfacing, enabling a seamless choice of communications protocols with Hemisphere GPS’ messaging. Crescent Vector technology delivers accurate and continuous performance, including position, heading, heave, pitch and roll. The stability and maintenance design of the Vector V103 Series replaces traditional gyrocompasses and stand-alone GPS at a fraction of the cost.

The IMO Wheelmarkedâ„¢ Vector V103â„¢ GPS Compass series offers professional level heading and positioning performance. The rugged IP69K design housing is sealed for the harshest environments. It incorporates fixed and pole mounting capability for both marine and land applications. The Vector V103 Series is suitable for both commercial and professional marine, as well as for machine mounting in open pit mining, construction and other applications.



Key Features

  • IMO type approved as a Transmit Heading Device (THD)
  • Professional heading < 0.3° rms
  • Differential position accuracy of < 60 cm @ 95%
  • Heave < 30 cm rms
  • Pitch and Roll < 1° rms
  • Reliable IP69K smart antenna housing design
  • Accurate heading up to 3 minutes during GPS outages
  • COAST technology maintains differentially-corrected positioning for 40 minutes or more after loss of differential signal
  • Integrated gyro and tilt sensors deliver fast start-up
  • Times and provide heading updates during temporary loss of GPS
  • Flexibility for easy integration into NMEA 0183 and 2000 interfaces

The V103 and V113 improves on and replaces the V101 and V111 family.
160-0209-000 Crescent Vector - 20 Hz (Activation)

940-3094-0 (formerly 940-3072-000) V103 Smart Antenna Kit

  • Includes L1 GPS, GLONASS, 20 Hz (heading and position), Raw data

940-3095-0 (formerly 940-3074-000) V113 Smart Antenna Kit

  • Includes L1 GPS, GLONASS, 20 Hz (heading and position), and Beacon activation

Note: Cable must be purchased separately

880-1042-000     15m V103/V113 Power/Data Cable (unterminated)

880-1043-000     30m V103/V113 Power/Data Cable (unterminated)



Hemisphere Vector V103/V113 EOL NOTICE
