Item #: VS330

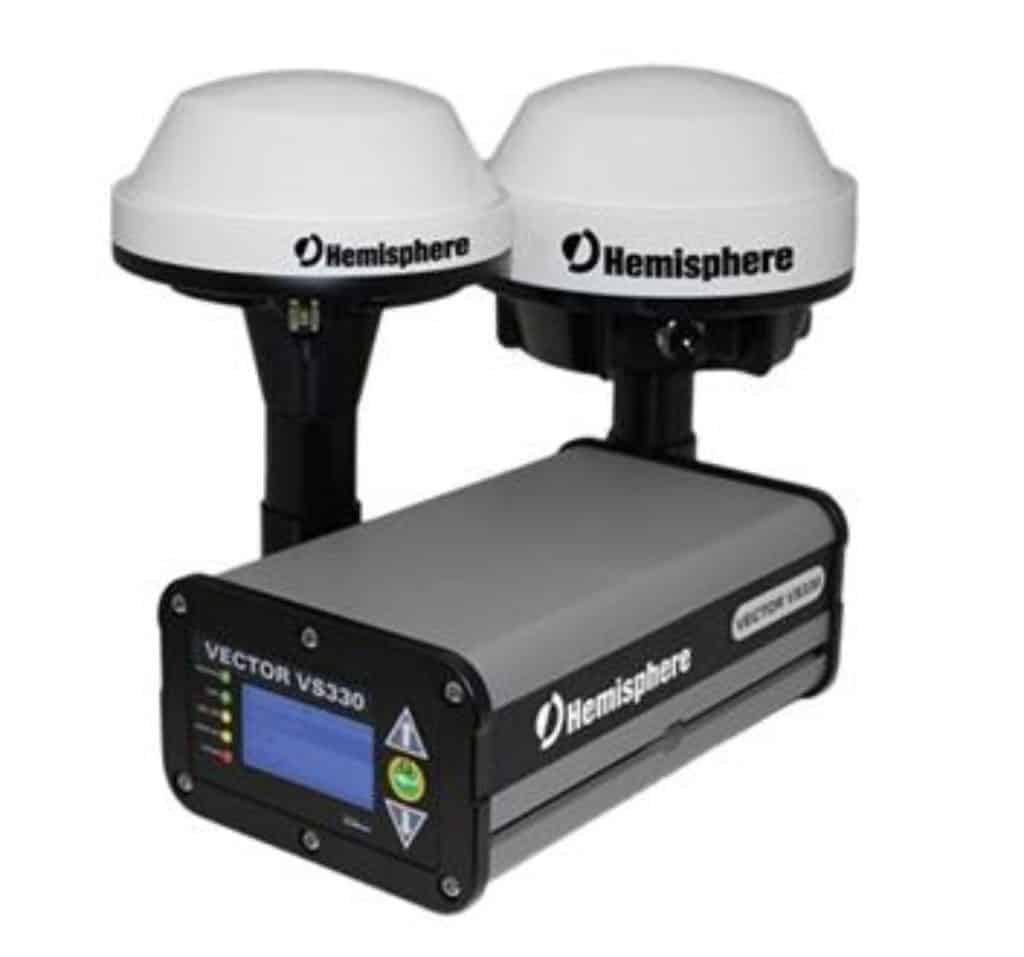

Hemisphere GPS Vector VS330 Compass GNSS Heading Receiver

The Hemisphere Vector VS330 GNSS Compass receiver supports GNSS L1 and L2 signals, with RTK capability. It uses Eclipse™ GNSS technology for applications that require highly accurate heading and RTK position. It also offers excellent multipath mitigation.

SKU: 940-3078-000 Categories: , , , Manufacturer: Hemisphere GNSS

Hemisphere Vector VS330 GNSS COMPASS

The Vector VS330 GNSS Compass from Hemisphere GNSS supports GNSS (GPS/GLONASS) L1 and L2 signals, with RTK capability. It utilizes the Eclipse™ GNSS technology to provide reliable positioning results for land and marine applications that require highly accurate heading and RTK position. The Vector VS330 offers excellent multipath mitigation, which can effectively reduce signal interferences caused by multipath, which happens when signals are being reflected from surfaces such as windows of building, trees, or even the ground. Furthermore, the VS330 receiver is equipped with two antennas that can be mounted separately according to the needs of the user-application.

The Vector™ VS330™ with Eclipse™ GNSS technology was developed for precise marine, dynamic positioning, and land applications requiring precise heading and RTK position performance.


The VS330  L1 L2 heading receiver, with its display and user interface, can be conveniently installed near the operator. The two antennas are mounted separately and with a user-determined separation to meet the desired heading accuracy. The Vector VS330 uses L-band DGNSS/HP/XP and SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning.

Note: This product is available as a single frequency or dual frequency receiver.

Key Vector VS330 GNSS Receiver Advantages
  • Extremely accurate heading with both short and long baselines up to 10 km
  • L1/L2 GPS/GLONASS RTK capable
  • L-band DGNSS/HP/XP(OmniSTAR®) capable
  • Beacon capable
  • Fast RTK acquision and reacquisition times
  • Excellent coasting performance
  • 5 cm rms RTK-enabled heave accuracy
  • Strong multipath mitigation and interference rejection


163-1005-000 - Glonass (Activation)
163-1001-000 - RTK Remote (Activation)
163-1007-000 - 20 Hz (Activation)
940-3078-000 - VS330 Heading Receiver Kit includes L1/L2 GNSS, SBAS, L-Band, Beacon

VS330 Kit Components include

803-3024-000# VS330 Unit
050-0011-022# CBL,IO-X,DSUB(F)9-DSUB(M)9,3M
052-0005-000# CBL,RF-X,TNC(M)-TNC(M),5M
054-0118-000# CBL,PWR,CIRC(M)2,A221
710-0056-000# KIT,MOUNTING,R100
804-3045-000# A42,WIDE.BAND,ANTENNA
804-3046-000# A43,ANT,DUAL-FREQ GNSS_BCN
710-0110-000# A21/42 MOUNT ASSY
710-0111-000# A31/43 MOUNT ASSY
