Item #: LA-21-1575-100

In-Line Amplifier, L1, 21dB (LA-21-1575-100)


Forsberg StarLink In-Line amplifiers are a convenient way to boost and filter GPS signals before they reach the receiver.

SKU: LA-21-1575-100 Categories: , , Manufacturer: Forsberg Services Ltd.

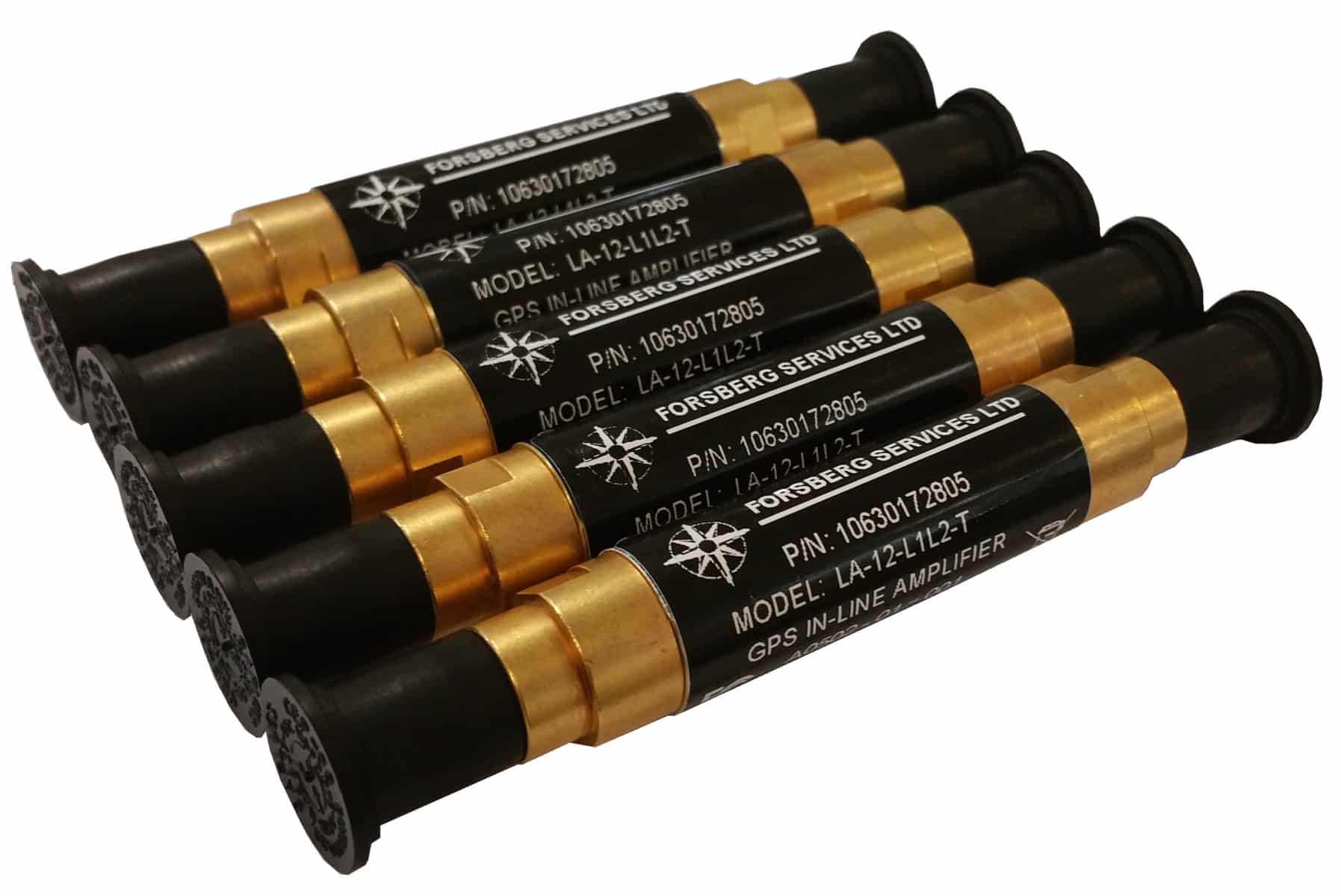

Forsberg StarLink (formerly Raven StarLink) GPS In-Line Amplifiers

GPS receiver performance can be degraded by using antenna cables that are too long (greater than 50 feet), or by exposure to electromagnetic interference (EMI). These 21dB StarLink In-line amplifiers are a convenient way to boost and filter GPS signals before they reach the receiver. These amplifiers are easy to install and are designed to be rugged and waterproof  effective for use anywhere that’s safe for a GPS antenna or cable.

These inline amplifiers are capable of amplifying all GNSS frequencies and will improve performance on receivers with cable lengths of over 50 ft. Theyre available with SMA, TNC, BNC, or N connectors and no special wiring is required, making installation a breeze.

Made with gold plated brass with rugged and watertight packaging, all you need to do is plug the amplifier directly inline with your antenna cable. Power to the GPS amplifier is already available from your GPS receiver. The amplifier uses the same power as the antenna so no extra wiring is required. These Forsberg StarLink inline amplifiers come with a full one year parts and labor warranty from the manufacturer.

Product Overview
  • Model Number: LA-21-1575-100-
  • ROHS: Yes
  • Input Voltage: 3 to 28VDC
  • Current Draw: <10ma
  • Input/Output Impedance: 50
  • Noise Figure: <3dB
  • Weight: < 1 lb.
  • Relative Humidity: 0-100% Condensing
  • Storage Temp: -55°C to 85°C
  • Operating Temp: -55°C to 70°C
Forsberg 1575 model In-Line amplifiers comply with UL62368-1.
Forsberg Services, Ltd., acquired Raven’s StarLink GNSS product line from Raven Industries in April 2015. NavtechGPS is the exclusive North American distributor for the Forsberg StarLink product line.

Forsberg StarLine Amplifier Data Sheet
