Item #: LA-12-L1L2

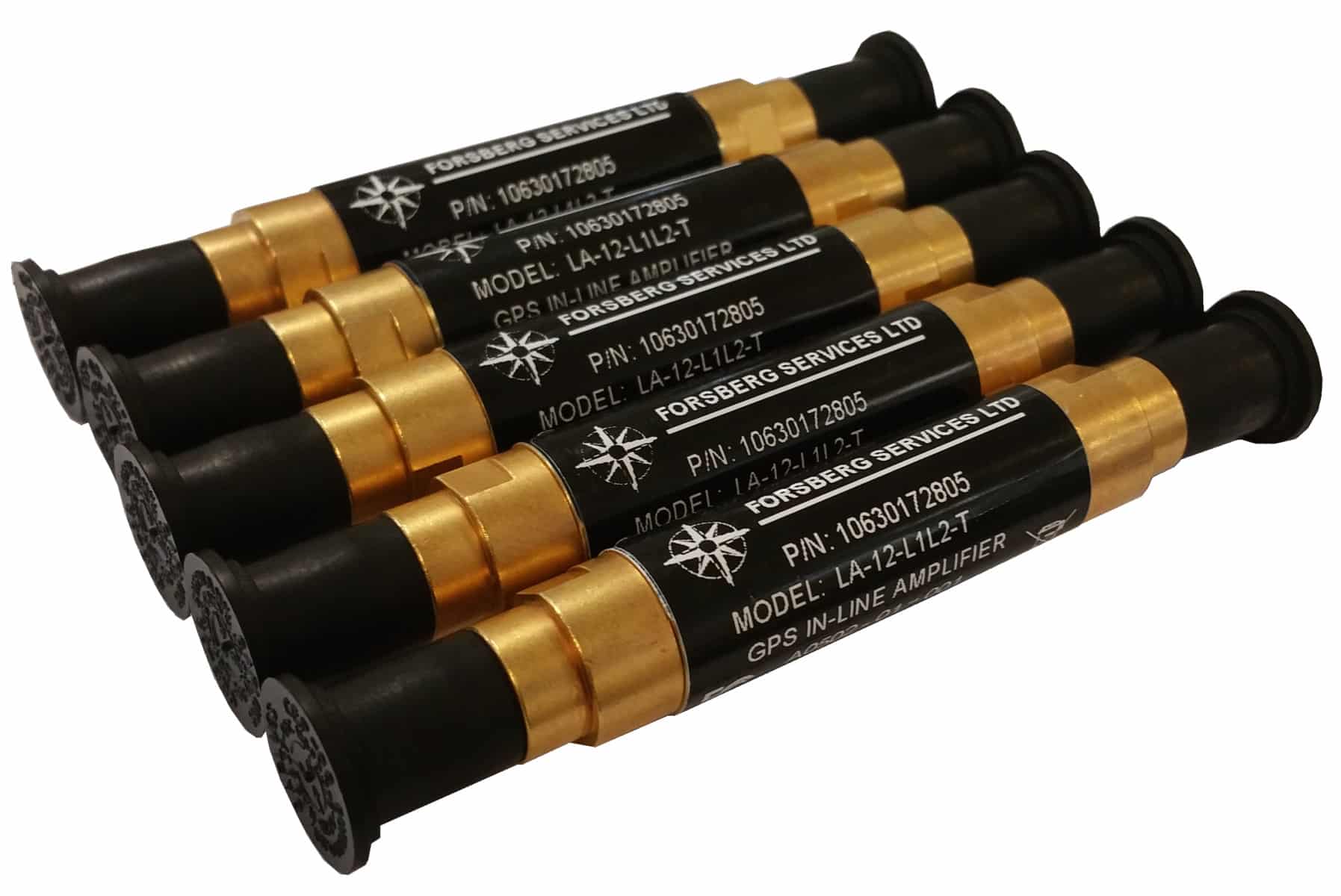

In-Line Amplifier, L1L2, 12dB (LA-12-L1L2)


Forsberg Starlink GNSS signal amplifier for cables runs up to 100 feet.

SKU: LA-12-L1L2 Categories: , , Manufacturer: Forsberg Services Ltd.

Forsberg StarLink (formerly Raven StarLink) GPS In-Line Amplifiers

L1L2 GPS receiver performance can be degraded by using antenna cables that are too long (greater than 50 feet), or by exposure to electromagnetic interference (EMI). In-line amplifiers are a convenient way to boost and filter GPS signals before they reach the receiver. These amplifiers are easy to install and are designed to be rugged and waterproof for use anywhere that’s safe for a GPS antenna or cable.

These in-line amplifiers are capable of amplifying all GNSS frequencies and will improve performance on receivers with cable lengths of over 50 feet. These splitters are available with SMA, TNC, BNC, or N connectors and no special wiring is required, making installation a breeze.

Made with gold plated brass with rugged and watertight packaging, all you need to do is plug the amplifier directly in-line with your antenna cable. Power to the GPS amplifier is already available from your GPS receiver. The amplifier uses the same power as the antenna so no extra wiring is required. These Forsberg StarLink inline amplifiers come with a full one-year parts and labor warranty from the manufacturer.

In-Line Amplifier Product Overview
  • Model Number: LA-12-L1L2-
  • ROHS: Yes
  • Input Voltage: 3 to 28VDC
  • Current Draw: <10ma
  • Input/Output Impedance: 50
  • Noise Figure: <3dB
  • Weight: < 1 lb.
  • Relative Humidity: 0-100% Condensing
  • Storage Temp: -55C to 85C
  • Operating Temp: -55C to 70C
Forsberg In-Line amplifiers comply with UL62368-1.
Forsberg Services, Ltd., acquired Raven’s StarLink GNSS product line from Raven Industries in April 2015. NavtechGPS is the exclusive North American distributor for the Forsberg StarLink product line.

Forsberg StarLine Amplifier Data Sheet
