The Trimble® MB-TWO High Perfomance RTK, Heading and RTX OEM Module
The manufacturer has issued and end of life (EOL) notice for this product. For replacement options, please contact us.

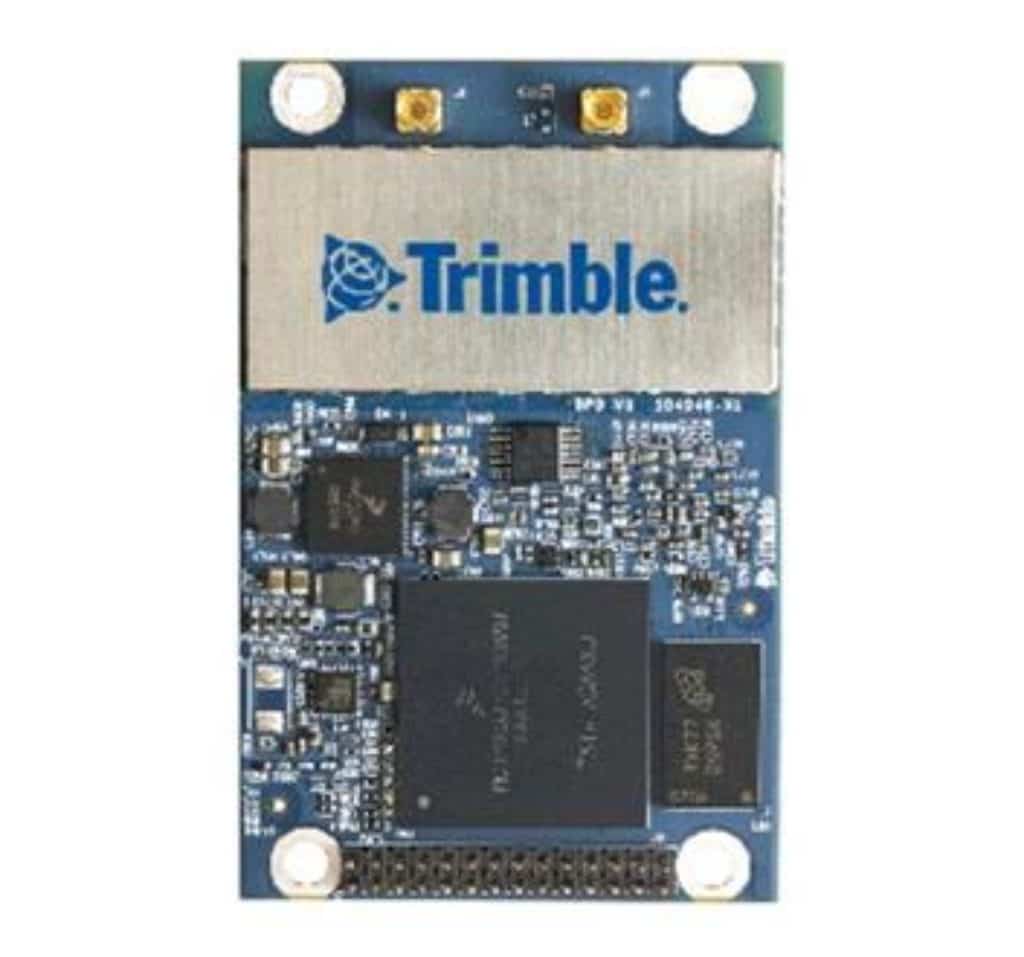

The Trimble MB-Two is the successor to the Trimble MB-One OEM receiver module. The MB-Two maintains the identical form-factor as its predecessor and offers customers a drop-in replacement to utilize the latest GNSS design innovations.
The MB-Two is versatile, powerful, compact and smart. The Trimble MB-Two provides faster dual frequency based heading acquisition and an improved positioning engine with additional GNSS signals. In addition, two MB-Two modules may be used for precise platform position (P3) using data from three antennas for full GNSS attitude.
The MB-Two allows a wide range of option-upgradable GNSS configurations from single frequency (GPS, SBAS) to dual frequency GNSS (GPS, QZSS, GLONASS, BeiDou, Galileo). Ashtech’s patented Z-Blade technology drives a powerful GNSS agnostic engine allowing the MB-Two to use any GNSS system for positioning, without any dependency on GPS. The GNSS engine utilizes over-the-air satellite corrections via embedded L-Band hardware to achieve centimeter/decimeter level accuracy with Trimble RTX corrections.
With worldwide availability of RTX corrections, the MB-Two delivers centimeter-level positioning without a dedicated base station.
KEY FEATURES
Dual Antenna Input for heading, pitch or roll
GNSS heading, pitch or roll
Faster TTFH using dual-frequency heading algorithms
Two antenna inputs (solo/dual mode)
Single board for RTK and heading
- Precise heading, pitch/roll
- Improved dual-frequency heading
- Dual core engine with Z-Blade technology
- Precise Platform Positioning (P3)
- Web user-interface
- Precise Point Positioning using Trimble® RTX
- Correction services:
- Trimble® CenterPoint® RTX for sub 4 cm accuracy
- Trimble® RangePoint® RTX for sub 50 cm accuracy
- Superior connectivity: Ethernet, USB 2.0, Serial Ports (LVTTL)
- Small form factor
- Low power
POWERFUL RTK ENGINE
The MB-Two has a powerful RTK engine that delivers centimeter-level accuracy for systems using corrections from a local base or an RTK network. It also features RTK against a moving base for relative positioning.
The network RTK capabilities include third-party network corrections such as VRS, FKP, and MAC. When two or more alternative RTK correcting data are available, MB-Two runs the Ashtech Hot Standby RTK algorithm allowing it to use them simultaneously in the positioning process.
Models
MB-Two Receivers:
106960-01: Trimble MB-Two, All options disabled, requires upgrade to output positions
106960-02: Trimble MB-Two, GPS L1, DGPS Base/Rover, 2Hz
106960-03: Trimble MB-Two, GPS, GLN, L1 DGPS, Base/Rover, 2Hz
106960-04: Trimble MB-Two, GPS, GLN, L1 DGPS, Heading, 20Hz
106960-05: Trimble MB-Two, GPS, GLN, L1/L2 RTK Rover, 20Hz
106960-06: Trimble MB-Two, GPS, GLN, L1/L2 RTK Base, 2Hz
106960-07: Trimble MB-Two, GPS, BDS, L1/L2 RTK Base, 2Hz
106960-08: Trimble MB-Two, GPS, GLN, L1/L2 DGPS Base/Rover, Heading, 20Hz
106960-09: Trimble MB-Two, GPS, BDS, L1/L2 DGPS Base/Rover, Heading, 20Hz
106960-10: Trimble MB-Two, GPS, BDS, L1/L2 RTK Rover, 20Hz
106960-11: Trimble MB-Two, GPS, GLN, BDS, L1/L2 RTK Base/Rover, Heading, 20Hz
106960-12: Trimble MB-Two, GPS, GLN, BDS, L1/L2 RTK Base/Rover, Heading, Attitude, 20Hz
106960-90: Trimble MB-Two, Altitude and Velocity Limits Removed – Under US State Department and ITAR Control (same config as -04)
106960-72: Trimble MB-Two, GPS, GLN, L1/L2 RTK Rover, 20Hz, 7/2 Dithering
106960-77: Trimble MB-Two, GPS, GLN, L1/L2 RTK Rover, 20Hz, 10/10 Dithering
106960-33: Trimble MB-Two, GPS, GLN, L1/L2 RTK Rover, 20Hz, 30/30 Dithering
MB-Two Field Installed Options:
Constellation:
101530-23: N, GPS (GPS) Field Option
101530-20: G, GLONASS (GLN) Field Option
101530-21: B, BeiDou (BDS) Field Option
101530-22: O, Galileo (GAL) Field Option
Signal Tracking:
101530-30: Y, S, Second frequency for installed constellations – L2 & L3
101530-31: Y, L2 Field Option
101530-32: S, L3 (BDS B2, Gal E5b) Field Option
Output Rate101530-13:5, 5Hz Field Option
101530-10: W, 20Hz Field Option
101530-12: 8, 50Hz Field Option
RTK Options:
101530-40: K, RTK Base Field Option
101530-41: F, RTK Flying RTK Field Option
101530-42: J, RTK Rover RTK Field Option (Includes Option F)
Extras:
101530-51: D, Dual Antenna Field Option
101530-50: E, Attitude Field Option (Includes Option D)
101530-60: I, RAIM Field Option
101530-61: R, Data Logging Field Option
Lband:
101530-70: L, Option to enable L-Band/MSS Signal Tracking required for RTX. MB-Two currently support the CenterPoint and RangePoint RTX services and subscription pricing for these can be found at http://www.trimble.com/positioning-services.com. The mentioned price does not include subscriptions price and is simply charged to enable the L-Band demodulator / option for use with RTX.
Special:
101530-25: Field Upgrade
MB-Two Evaluation Kit:
102926-00: Evaluation Kit (MB-Two appropriate version purchased separately)
102918-00-B: Evaluation & Development I/O Board
A02503: Pwr Sply,BD950,18V,3Ah (same power supply used by Trimble BD9xx eval kit)
A02584: TNC-MMCX connector
