NovAtel Smart2
NovAtel Smart2
Item #: SMART2

SMART2

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The NovAtel SMART2™ is a multi-constellation, multi-GNSS smart antenna offering flexible positioning solutions. The SMART2 compact rugged enclosure houses a high performance antenna for dual-frequency signal tracking and access to multiple GNSS signals for better satellite access in variable terrain and environments.

Request Info / Pricing
SKU: SMART2 Categories: , , , Manufacturer: NovAtel

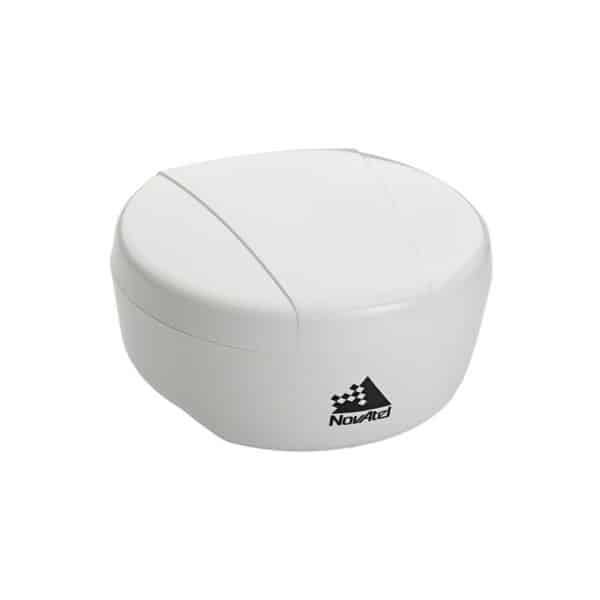

NovAtel SMART2™ GNSS Smart Antenna

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The NovAtel SMART2™ compact rugged enclosure houses a high performance antenna for dual-frequency signal tracking and access to multiple GNSS signals for better satellite access in variable terrain and environments. TerraStar® correction services add improved accuracy.

The SMART2 is capable of receiving GPS, GLONASS, BeiDou, Galileo and QZSS signals. Positioning solutions range from single-frequency meter-level positioning to centimeter-level Precise Point Positioning (PPP). The SMART2 also receives L-Band signals providing easy access to the world-wide TerraStar-L and TerraStar-C PRO Correction Services.

Key Features

  • GPS, GLONASS, BeiDou, Galileo, QZSS plus TerraStar correction signal reception
  • Optional Terrain Compensation
  • Optional Bluetooth
  • Simulated radar ground speed output
  • Integrated magnetic mounting
  • Flexible positioning accuracy from meter-level standalone positioning to centimeter-level using TerraStar-C PRO1
  • 15 cm pass-to-pass accuracy using TerraStar-L
  • Terrain Compensation corrects for vehicle roll and pitch to improve performance on uneven terrain
  • Smooth, consistent positions for pass-to-pass applications with optional GLIDE® technology
  • Dual-frequency tracking increases position reliability and mitigates ionospheric effects
  • Wireless connectivity simplifies integration with tablets and other Bluetooth-enabled devices
  • Compact, waterproof, one-piece GNSS receiver solution
  • 14-pin connector provides compatibility with existing AG-STAR/SMART6 cabling and installations



NovAtel SMART2 Datasheet
NovAtel Smart Antenna Brochure

Smart2 Smart Antenna

Dual-Frequency

SM2-DDN-LNN-TMN-B: SMART2 with GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-DDN-LNN-TMN-G: SMART2 with GPS+GLO, L1/L2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-DDN-PNN-TMN-B: SMART2 with GPS+GLO, L1/L2, PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-DDN-PNN-TMN-G: SMART2 with GPS+GLO, L1/L2, PPP+Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-FDN-LNN-TMN-B: SMART2 with GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-FDN-LNN-TMN-G: SMART2 with GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-FDN-PNN-TMN-G: SMART2 with GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, PPP+Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-GDN-LNN-TMN-B: SMART2 with GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-GDN-LNN-TMN-G: SMART2 with GPS, L1/L2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections



Single-Frequency

SM2-DSN-LNN-TMN-B: SMART2 with GPS+GLO, L1, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-DSN-LNN-TMN-G: SMART2 with GPS+GLO, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-DSN-LNN-TNN-G: SMART2 with GPS+GLO, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, No Measurements, No Base Station Corrections

SM2-FSN-LNN-TMN-B: SMART2 with GPS+GLO+GAL+BDS, L1/E1/B1, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-FSN-LNN-TMN-G: SMART2 with GPS+GLO+GAL+BDS, L1/E1/B1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-GSN-LNN-TMN-B: SMART2 with GPS, L1, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-GSN-LNN-TMN-G: SMART2 with GPS, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2-GSN-LNN-TNN-B: SMART2 with GPS, L1, Single Point+DGPS PNT, 20 Hz Data Output Rate, No Measurements, No Base Station Corrections

SMART2-B Smart Antenna

Dual-Frequency

SM2B-DDN-LNN-TMN-G: SMART2 with Bluetooth GPS+GLO, L1/L2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2B-DDN-PNN-TMN-G: SMART2 with Bluetooth, GPS+GLO, L1/L2, PPP+Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2B-FDN-LNN-TMN-G: SMART2 with Bluetooth, GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

Single-Frequency

SM2B-DSN-LNN-TMN-G: SMART2 with Bluetooth, GPS+GLO, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2B-FSN-LNN-TMN-G: SMART2 with Bluetooth, GPS+GLO+GAL+BDS, L1/E1/B1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2B-GSN-LNN-TMN-G: SMART2 with Bluetooth, GPS, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2B-GSN-LNN-TNN-B: SMART2 with Bluetooth, GPS, L1, Single Point+DGPS PNT, 20 Hz Data Output Rate, No Measurements, No Base Station Corrections

SMART2-TB Smart Antenna

Dual-Frequency

SM2TB-DDN-LNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO, L1/L2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2TB-DDN-PNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO, L1/L2, PPP+Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2TB-FDN-LNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2TB-FDN-PNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, PPP+Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

Single-Frequency

SM2TB-DSN-LNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO, L1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2TB-FSN-LNN-TMN-T0-G: SMART2 with Terrain Compensation and Bluetooth, GPS+GLO+GAL+BDS, L1/E1/B1, Single Point+DGPS PNT, GLIDE, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM2TB-GSN-LNN-TNN-T0-B: SMART2 with Terrain Compensation and Bluetooth, GPS, L1, Single Point+DGPS PNT, 20 Hz Data Output Rate, No Measurements, No Base Station Corrections
