Item #: S321+

S321+ GNSS Smart Antenna

The Hemisphere S321+ GNSS SMART ANTENNA is a multi-GNSS, multi-frequency, smart antenna. (It replaces the S321.) The S321+ (Plus) provides robust performance and high precision in a compact and rugged package.

SKU: S321+ Categories: , Manufacturer: Hemisphere GNSS

Hemisphere S321+ GNSS SMART ANTENNA

The S321+ (Plus) is a multi-GNSS, multi-frequency, smart antenna. (It replaces the S321.) The S321+ provides robust performance and high precision in a compact and rugged package. It has multiple communication ports and an open GNSS interface, and can be used in a variety of operating modes. Use the S321+ as a precise base station sending RTK to your existing rover network , or turn it  into a lightweight and easy to use rover by connecting it to a base via UHF radio or Wi-Fi . The built- in web user interface (web UI) can be used to control and manage the receiver status and operation, and to upgrade the S321+ with new firmware and activations. The S321+ is Athena-enabled and Atlas-capable.

Powered by Athena RTK technology. The S321 receiver is powered by the Athena RTK technology. With Athena, S321+ provides state-of-art RTK performance when receiving corrections from a static base station or network RTK correction system. With multiple connectivity options, the S321+ allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth, or serial connection. S321+ delivers centimeter-level accuracy with virtually instantaneous initialization times and cutting edge robustness in challenging environments.

Works with ATLAS. The S321+ receiver also enables users to work with the Atlas service. Atlas is Hemispheres industry leading global correction service, which can be added as a subscription to the S321+ . The Atlas system delivers world-wide centimeter-level correction data over L-band communication satellites. With Atlas, S321+ users are able to experience sub-decimeter positioning performance anywhere on earth, without the need to be nearby a GNSS or communication infrastructure.

Atlas L-band has the following benefits:

  • Positioning accuracy – Competitive positioning accuracies down to 2 cm RMS in certain applications.
  • Positioning sustainability – Advanced position quality maintenance in the absence of correction signals, using Hemispheres patented technology.

KEY FEATURES

  • Multi-Frequency, Multi-GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS)
  • Athena RTK engine and Atlas L-band global corrections
  • Dual hot-swappable lithium batteries provide 12 hours of battery life
  • Wi-Fi, UHF, Cellular, and Bluetooth wireless communication
  • Powerful WebUI control accessed via Wi-Fi
  • 8 GB internal memory for data logging, download, and upload
  • Internal tilt sensor corrects the collected point coordinates, to a maximum inclination of 15, in accordance with the tilt angle and direction of the range pole

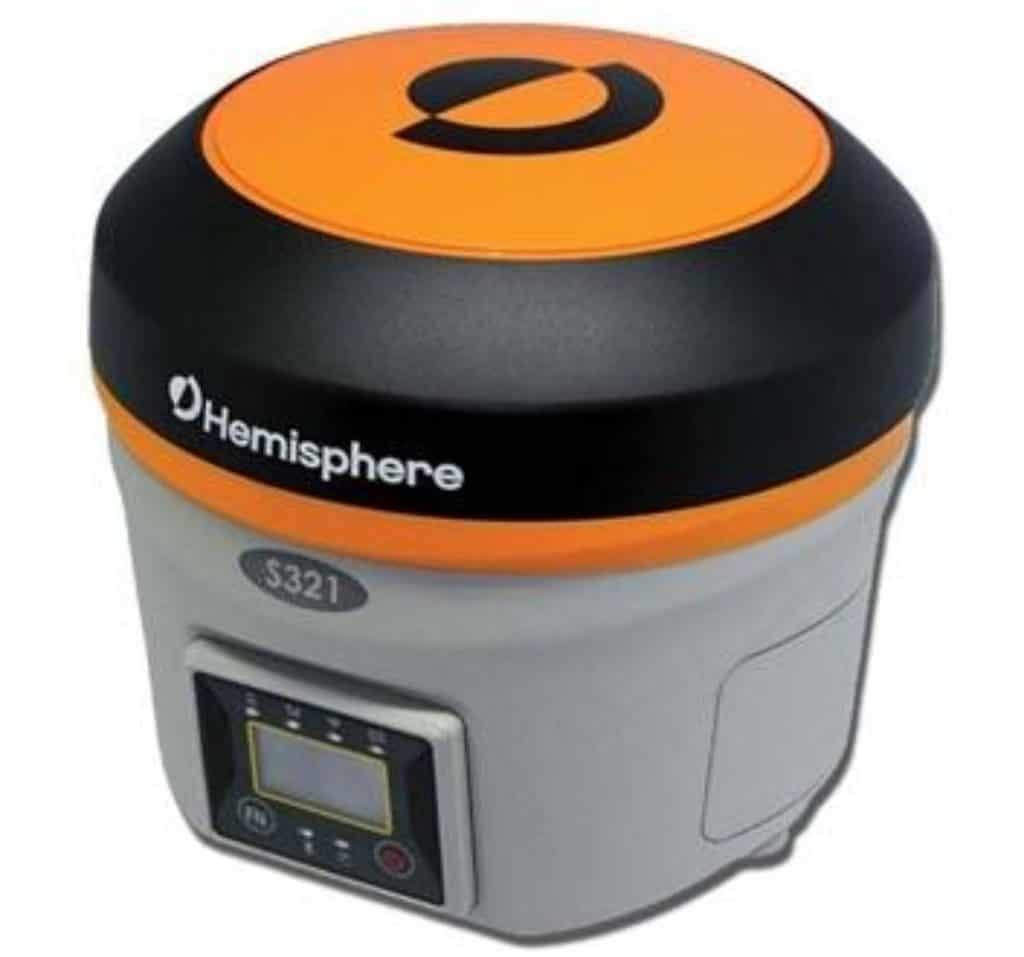

Hemisphere S321 (Plus) GNSS Smart Antenna
