Home » Products » GPS and GNSS Receivers » OEM » Septentrio AsteRx-m Integrator Kit Print Page

Item #: AsteRx-m IntKit

Septentrio AsteRx-m Integrator Kit

The manufacturer has issued an end of life (EOL) notice for this product. It has been replaced by the AsteRx-m2a Integrator Kit.

AsteRx-m is a very low power GPS/GLONASS dual-frequency RTK receiver smaller than a credit card, which is especially designed for integration in hand-held devices, mobile computing platforms and other solutions requiring high accuracy in low-power and space-constrained applications.

SKU: AsteRx-m IntKit Categories: , , Manufacturer: Septentrio

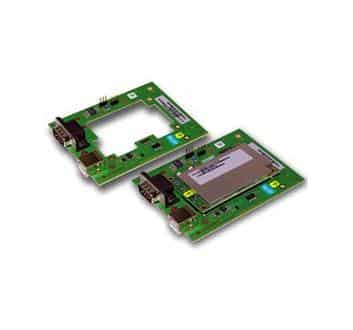

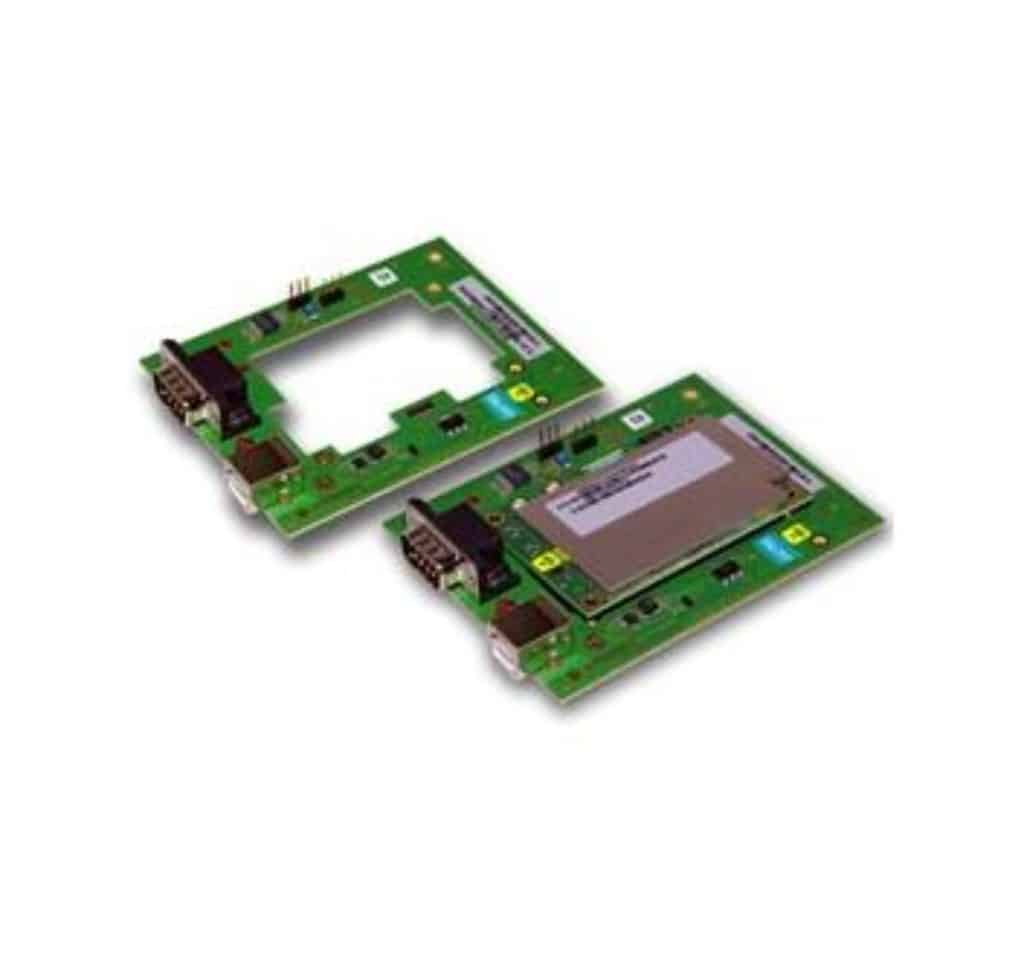

AsteRx-m Integrator Kit

The manufacturer has issued an end of life (EOL) notice for this product. It has been replaced by the AsteRx-m2a Integrator Kit.

The AsteRx-m integrator kit is available for the AsteRx-m, which is a very low power GPS/GLONASS dual-frequency RTK receiver smaller than a credit card, which is especially designed for integration in hand-held devices, mobile computing platforms and other solutions requiring high accuracy in low-power and space-constrained applications.

Main Features
* 136 hardware channels
* Up to 25 Hz data output rate
* A Posteriori Multipath Estimator technique (APME)
* Receiver Autonomous Integrity Monitoring (RAIM)
* Differential GPS (base station and rover)
* Includes up to 3 SBAS channels (EGNOS, WAAS, other)
* Innovative and flexible power management under user control
* Raw data output (code, carrier, navigation data)
* Highly compact and detailed Septentrio Binary Format (SBF) output
* Compact OEM board and housed solutions
* Includes intuitive GUI (RxControl) and detailed operating and installation manual
* NMEA v2.30 output format, up to 10 Hz
* RTK
* RTCM v2.2, 2.3, 3.0 or 3.1 input
* Reference Station Network compatible (FKP)
* CMR 2.0 and CMR input


Ax-m_GLO     Upgrade of AsteRx-m OEM GPS-only configuration with GLONASS

Ax-m_RTK     RTK + Moving Base option (RTK base/rover) (incl. DGPS) (Only for Dual

Ax-m_BASE   Outputs RTK Base corrections

Ax-m_Event   Event Marker option (2 marker inputs)

Ax-m_NCL      AsteRx-m with COCOM limits removed (an extra admin fee of 1500 Euro per order is required)


AsteRx-m IntKit            410001B1331 AsteRx-m Integrator Kit

AsteRx-m L1G IntKit    410001B1332 AsteRx-m L1G Integrator Kit (excl. Event Marker option)
