PP-SDK Post Processing Software

Septentrio’s PP-SDK is a professional software development kit that includes all the necessary tools to allow you to incorporate post-processing functionality into your own applications and products. The API and PostNav, an intuitive GUI application, are the main tools of the development kit. Both tools are based on the same core that drives Septentrio receivers enabling raw measurement data-file processing that results in similar high-precision PVT (position, velocity, time) solutions from your navigation and surveying applications as achievable by using Septentrio receivers. The PP-SDK is compatible with common programming languages such as C/C /C#. The main input/output format is SBF (Septentrio Binary Format) but RINEX is also supported. With the use of an intuitive GUI, the PP-SDK works as a standalone post-processing application.



KEY SOFTWARE FEATURES

• API: An Application Programming Interface enables the creation of applications to preprocess SBF input files, control the PVT calculation with commands similar to receiver commands and analyze the resulting output SBF files
• Post Processing Engine: the core engine that performs the actual standalone, SBAS and RTK PVT solutions using GPS/GLONASS data
• RINEX Module: converts RINEX 2.1 & RINEX 3.0 observation and navigation files to SBF, supports GPS, GLONASS and SBAS geostationary satellites
• SBF Stream: a rich set of functions is provided to merge, process or condition Septentrio Binary Files (SBF) files for PVT calculation

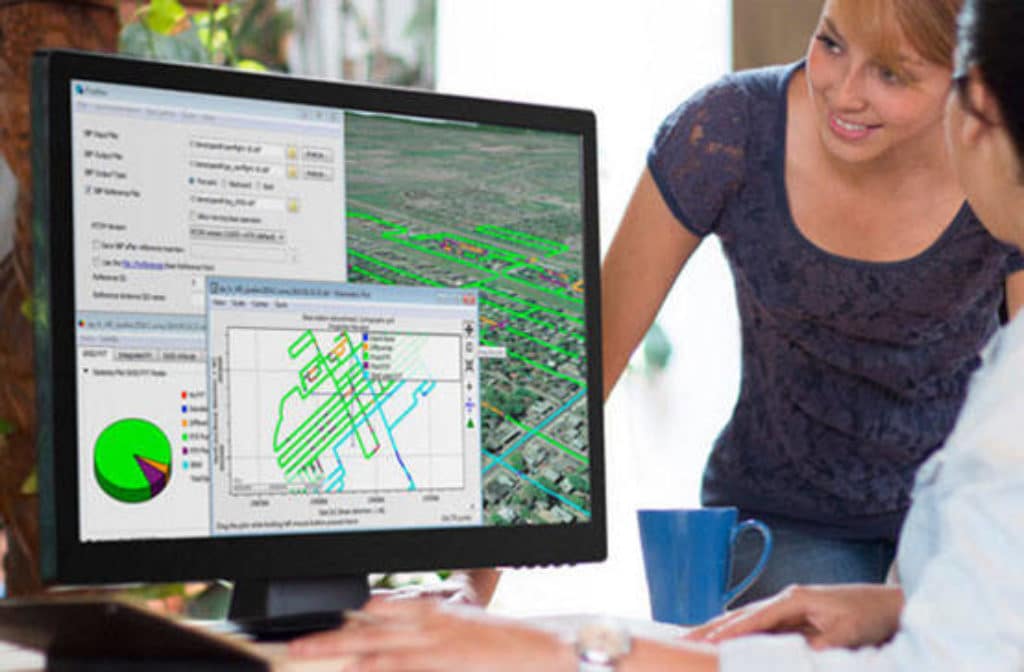

• PostNav: a graphical application for easy interaction with post processing functionality
• Libraries: both dynamic and static libraries are provided
• Sample applications to demonstrate key features of the PP-SDK for quick and easy integration
