Item #: AsteRxm2a

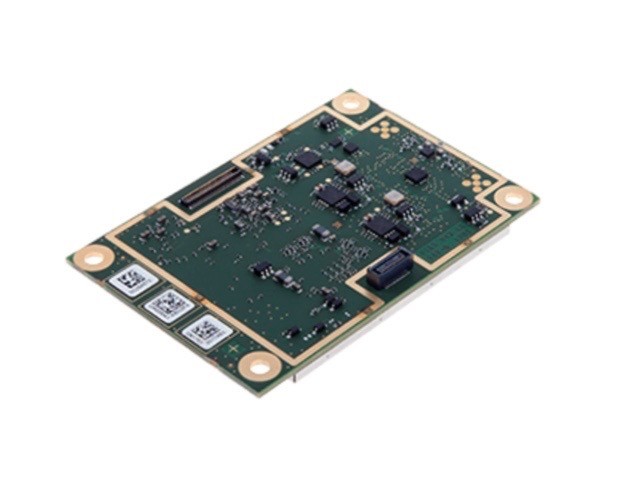

AsteRx-m2a Heading and RTK Receiver

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

Smaller-than-a-credit-card, Septentrio’s AsteRx-m2a Heading and RTK receiver is ideal for UAS, INS integrations and any other industrial application requiring high-reliability positioning combined with low power consumption.

SKU: AsteRxm2a Categories: , , , , Manufacturer: Septentrio

AsteRx-m2a Heading and RTK Receiver for UAS, INS Integration

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

Smaller-than-a-credit-card, the AsteRx-m2a is ideal for UAS, INS integrations and other industrial applications that require high reliability in positioning combined with low power consumption.

Features
  • all-in-view, multi-constellation, multi-frequency satellite tracking
  • Sub-degree GNSS heading and pitch/roll precision
  • Best-in-class reliable and scalable position accuracy
  • AIM anti-jamming and monitoring system
  • Ultra-compact design
  • Low power consumption (<1 W)
  • Easy to integrate
  • Interference robustness

Advanced Interference Mitigation Technology

The AsteRx-m2a features AIM ,  one of the most, if not the most, advanced on-board interference mitigation technology on the market. It can suppress the widest variety of interferers, from simple continuous narrowband signals to the most complex wideband and pulsed jammers. The RF spectrum can be viewed in real-time in both time and frequency domains.

Easy to Integrate

The AsteRx-m2a comes with fully-documented interfaces, commands and data messages. The included RxTools software allows receiver configuring, monitoring as well as data logging and analysis. An SDK is provided to help integrators create professional custom applications. The AsteRx-m2a is compatible with GeoTagZ Software and its SDK library for RPK (ReProcessed Kinematic) offline processing.

Weve taken the hugely successful AsteRx-m2 and added a second antenna input for high-precision GNSS heading. No need to manouver around in a figure of 8 trying to initialize INS heading or find space or additional power for a separate INS module. Now, all you need is a second antenna and youre good to go, stated Gustavo Lopez, OEM Product Manager at Septentrio.

Septentrio AsteRx-m2a Heading and RTK Receiver for UAS and INS Integration

GPS spoofing: Is your receiver ready for an attack?

Septentrio AsteRx-M2 EOL Notice

EOL Models Affected

Short Description Part Number
AsteRx-m2 OEM FULL 410210B1695
AsteRx-m2 OEM C 410210B1694
AsteRx-m2 OEM M 410210B1692
AsteRx-m2 OEM Base 410210B1696
SM-AsteRx-m2 OEM 410210B1691
AsteRx-m2 UAS FULL 410230B1705
AsteRx-m2 UAS RTK & GTZ 410230B1708
AsteRx-m2 UAS C 410230B1704
AsteRx-m2 UAS GTZ 410230B1707
AsteRx-m2 UAS M 410230B1702
AsteRx-m2 UAS Base 410230B1706
AsteRx-m2 UAS Sx 410230B1709
SM-AsteRx-m2 UAS 410230B1701
AsteRx-m2a OEM FULL 410233B1755
AsteRx-m2a OEM C 410233B1754
AsteRx-m2a OEM M 410233B1752
SM-AsteRx-m2a OEM 410233B1751
AsteRx-m2a UAS RTK & GTZ 410238B1768
AsteRx-m2a UAS GTZ 410238B1767
AsteRx-m2a UAS M 410238B1762
SM-AsteRx-m2a UAS 410238B1761

Products Replacement

Short Description Parts Number
AsteRx-m3 ProBase 410356
AsteRx-m3 Pro 410354
AsteRx-m3 Pro+ 410355
AsteRx-m3 Sx 410357
Robotics interface board 410358
