Item #: TW2410

TW2410 GPS L1+GLONASS Precision Grade Antenna

$75.45

The TW2410 by Tallysman Wireless is a professional grade GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1574 to 1606 MHz). It is especially designed for precision industrial, agricultural and military applications and offers excellent circular polarized signal reception, multipath rejection and out of band signal rejection.

View Full Description
SKU: 33-241 Categories: , Manufacturer: Tallysman Wireless

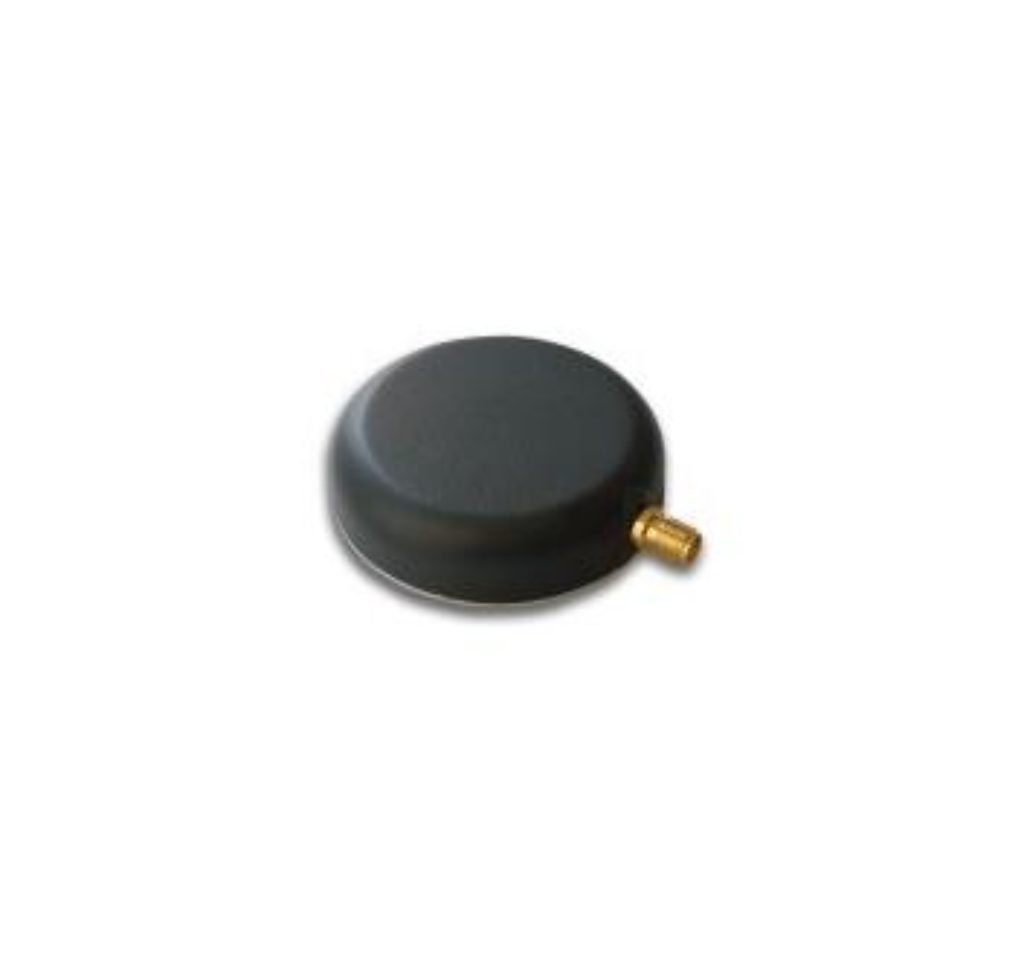

The TW2410 Magnetic Mount GPS/GLONASS Antenna


The TW2410/TW2412 employ Tallysmans unique Accutenna™ technology which provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection resulting in higher positional and timing accuracy. The TW2410 covers the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). The TW2410 is also available in an OEM / embedded version the TW2405.


The TW2412 has an additional tight pre-filter to protect against saturation by high level sub-harmonics and L-Band signals.

The TW2410/TW2412 are housed in compact, magnetic mount, IP67 compliant housings. The antenna can be ordered without the magnet. In such cases, the magnet is replaced with a plastic plug to provide a smooth under surface.

They are RoHS and REACH compliant.

FEATURES

  • Low Axial Ratio
  • Tight Phase Centre Variation
  • High rejection SAW filter
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

BENEFITS

  • Superior multipath signal rejection
  • Excellent choice for single frequency RTK systems
  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

LNA Pre-filter Available

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative TW2412 provides these additional benefits with an LNA pre-filter.

To minimize performance impact from signal jamming threats, the pre-filtered version of this antenna is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.

Tallysman Wireless TW2410 Data Sheet

Premium Antennas for Unmanned Vehicles (UAVs)

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

  Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
