Item #: TW7875

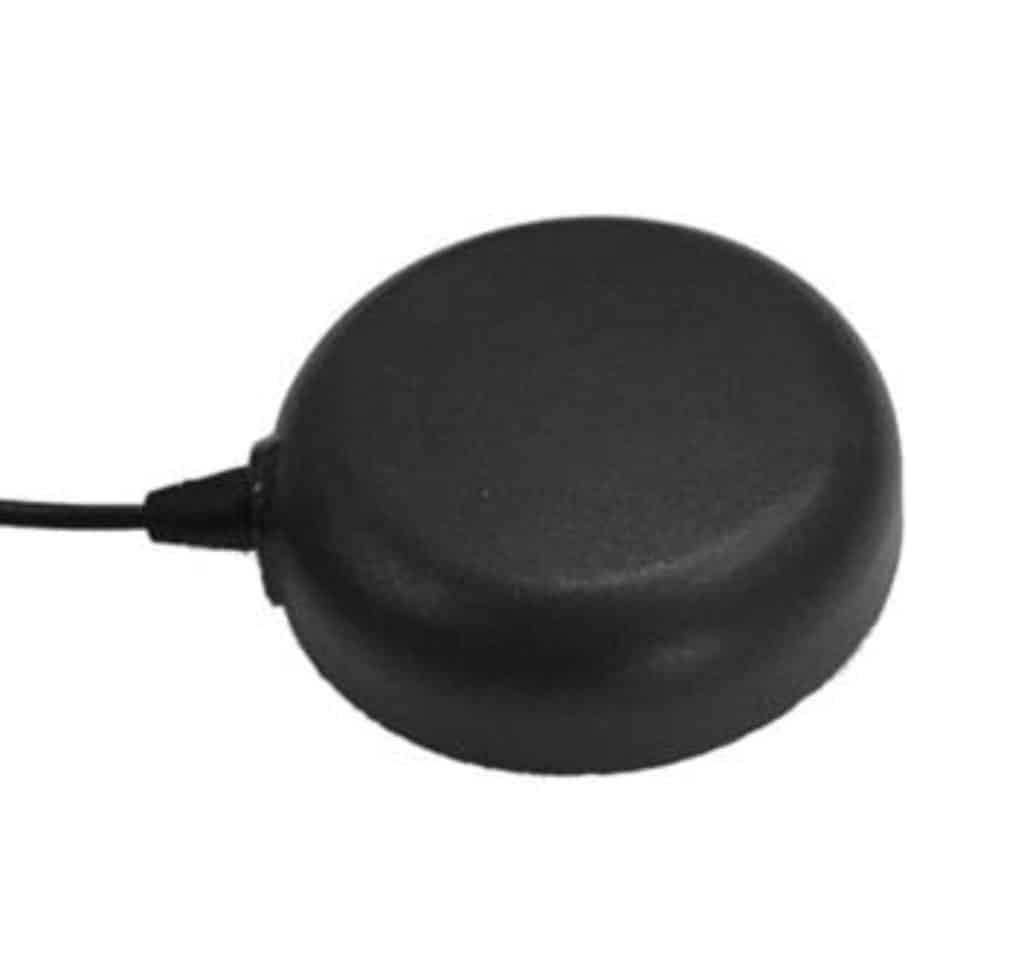

TW7875 Dual Band (L1/L5) GNSS Antenna

$199.00

The Tallysman TW7875 is precision tuned dual band, Accutenna® technology antenna for reception of GPS L1/L5, GLONASS G1, BeiDou B1, Galileo E1/E5a, NavIC L5 and is especially designed for precision dual frequency positioning.

View Full Description
SKU: 33-7875 Categories: , Manufacturer: Tallysman Wireless

Tallysman Magnetic Mount L1/L5 GNSS Antenna

The TW7875 is precision tuned dual band, Accutenna® technology antenna for reception of GPS L1/L5, GLONASS G1, BeiDou B1, Galileo E1/E5a, NavIC L5 and is especially designed for precision dual frequency positioning. The TW7875 provides multi-path rejection and axial ratio, a linear phase response, and tight Phase Centre Variation (PCV), while protecting against intermodulation and saturation caused by high level cellular 700MHz signals. This antenna is ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2.5dB typ.
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for RTK applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW7875 is housed in a magnetic mount (with pre-tapped screw holes), weather-proof enclosure for permanent installations. A 100 to 120mm ground plane is recommended.

This product is also available in an OEM format (TW3865 or TW3875E)

The TW7875 is IP67, REACH, and RoHS compliant.

Tallysman TW7875 Dual Band (L1/L5) GNSS Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
