Item #: VS-i8

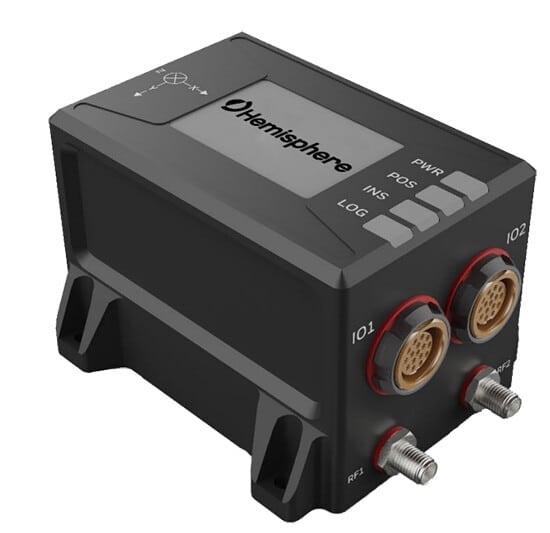

Vector VS-i8 Inertial Navigation System

The VS-i8 INS from Hemisphere is a high accuracy, high precision, Inertial Navigation System (INS). The VS-i8 INS design centers around the Hemisphere Vega™ 60 GNSS position and heading engine with the Honeywell® HG4930 IMU. Utilizing Honeywell® proprietary sensor fusion technology, the VS-i8 leverages a powerful multi-frequency, multi-constellation, RTK-ready navigation and positioning solution for a wide variety of GNSS platforms and applications.

SKU: VS-i8 Categories: , , Manufacturer: Hemisphere GNSS

Hemisphere Vector VS-i8 Inertial Navigation System

The Hemisphere VS-i8 is a high accuracy, high precision, Inertial Navigation System (INS). The VS-i8 INS design centers around the Hemisphere Vega™ 60 GNSS position and heading engine with the Honeywell® HG4930 IMU. Utilizing Honeywell® proprietary sensor fusion technology, the VS-i8 leverages a powerful multi-frequency, multi-constellation, RTK-ready navigation and positioning solution for a wide variety of GNSS platforms and applications.

The VS-i8 combines Hemisphere’s Athena RTK positioning engine, full Atlas L-band capability, and proven Honeywell IMU technology to deliver accurate time-stamped position, velocity, angular rate, linear acceleration, roll, pitch, and heading information. Featuring a lightweight compact size, the performance of the VS-i8 is ideal for marine, UAV, robotics, mapping, GIS, LiDAR, mobile mapping, and applications requiring high performance in a small package.

Features

  • Athena GNSS engine-providing best-in-class RTK performance
  • Dual-antenna heading
  • Atlas® L-band capable
  • Non-ITAR controlled
  • 0.03° heading, 0.015° pitch and roll accuracy on a 2m baseline
  • Rugged IP68 enclosure
  • Onboard data logging
  • SDK, ROS drivers available

Documents & Specs

Hemisphere Vector VS-i8 Inertial Navigation System Datasheet
