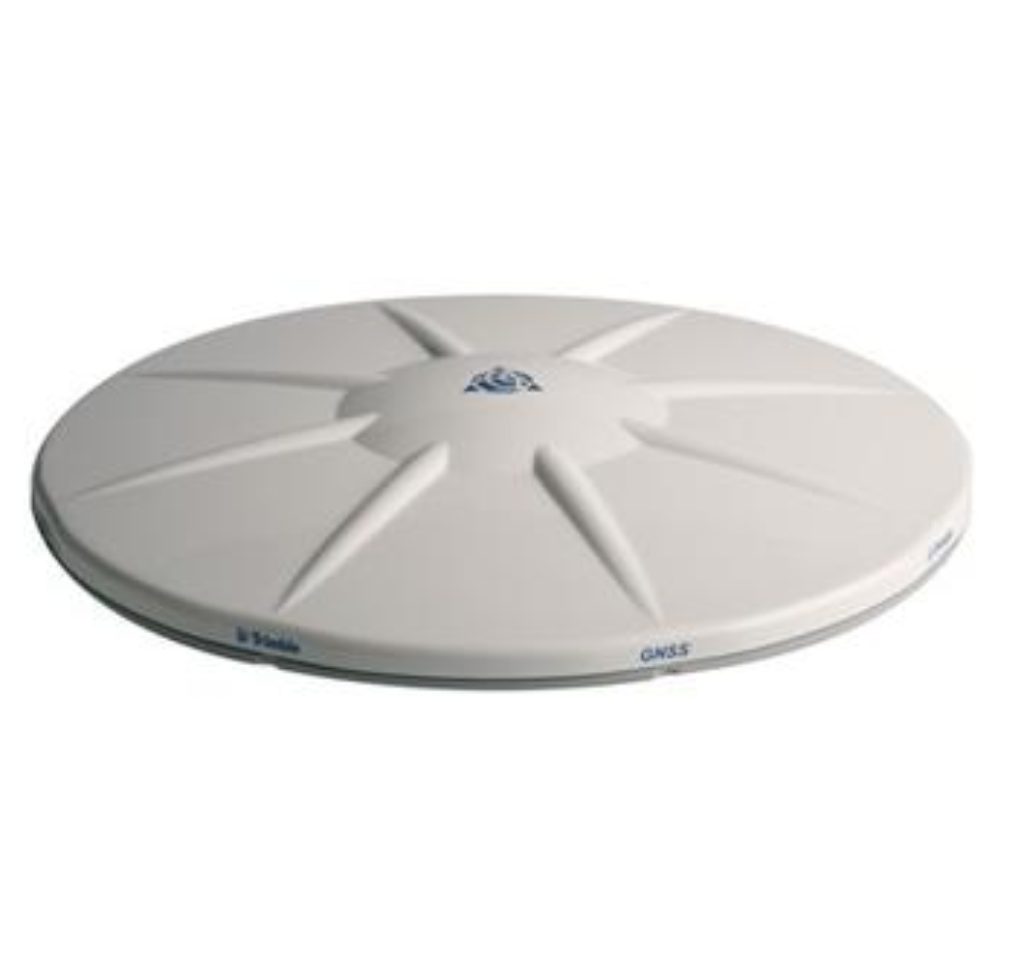

Trimble Zephyr Geodetic Antenna
Trimble Zephyr Geodetic Antenna
Alternative Views
  • Zephyr
  • Trimble Zephyr Geodetic Antenna

Zephyr 2 Geodetic GNSS Antenna

Item# Zephyr

The Trimble Zephyr Geodetic 2 Antenna is designed to receive all existing and proposed public GNSS signals, including GPS, GLONASS, Galileo and Compass. In addition, these antennas are used in the highest-accuracy IGS reference frame networks where only the best possible long-term performance is accepted. View Full Description

Category: GNSS
Manufacturer: Trimble Navigation
Manufacturer Number: 57971-10
Trimble Navigation


Zephyr 2 Geodetic GNSS Antenna

Consistently delivering phase-center eccentricities of less than 1 mm, the Zephyr Geodetic 2 Antenna’s performance guarantees that even in a large network, all stations will be capable of delivering accurate, repeatable measurements. This is not the only advanced feature of the Trimble Zephyr Geodetic 2 antenna—it also offers the unique Trimble Stealth™ ground plane. This resistive ground plane consumes unwanted signals before they can reach the receiving element and corrupt measurements. This modern, high technology approach to multipath mitigation is more compact than the original choke ring design and allows for the use of an integrated, low-profile radome over the entire antenna element and ground plane assembly.
