Item #: MB-ONE

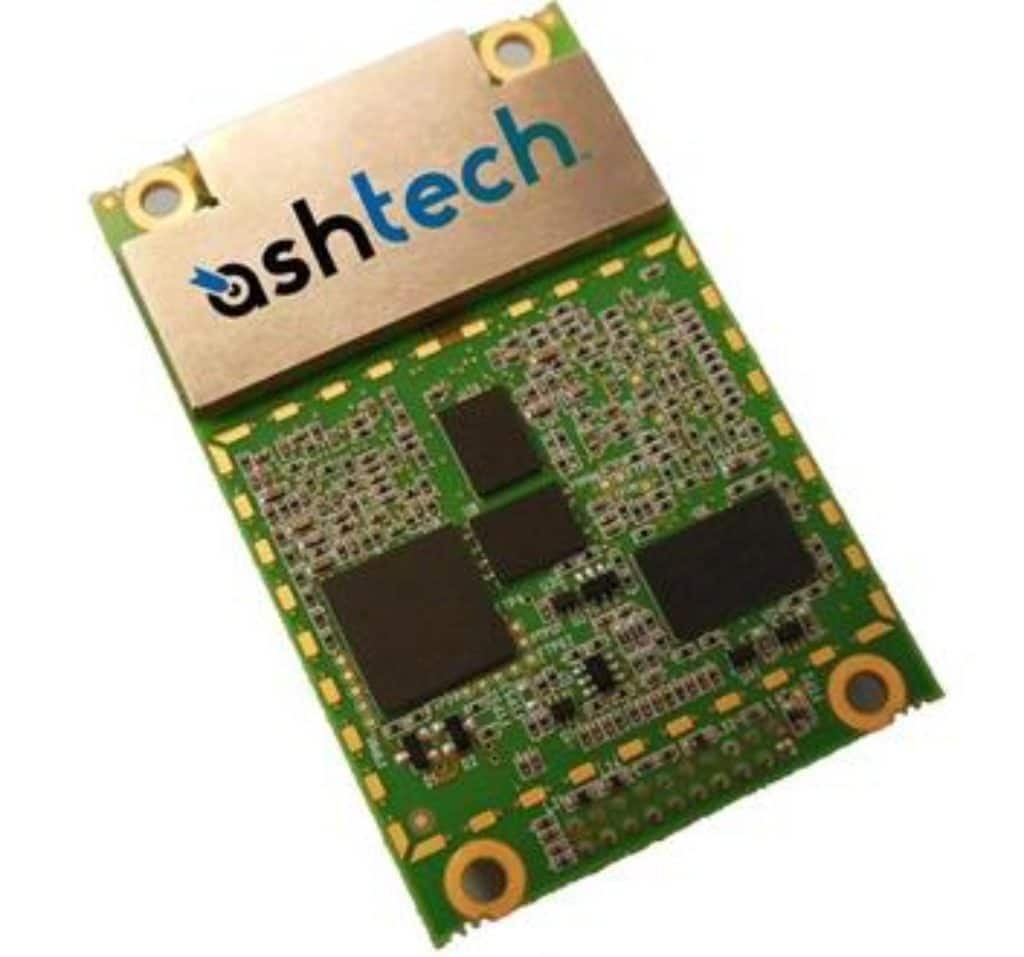

Ashtech MB-ONE Receiver Module

The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the MB-TWO.

The Trimble/Ashtech MB-One GNSS receiver module delivers highly accurate GNSS based heading, plus pitch or roll in an advanced industry standard form-factor.

SKU: 97768-02 Categories: , , Manufacturer: Trimble Navigation

Trimble / Ashtech MB-ONE GNSS Receiver Module

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. IT HAS BEEN REPLACED BY THE MB-TWO. PLEASE CONTACT US WITH QUESTIONS.
The Ashtech MB-One by Trimble delivers highly accurate GNSS-based heading plus pitch or roll in an industry standard form-factor for high performance centimeter level positioning and heading in a miniature power-saving design. The embedded Z-Bladeâ„¢ GNSS technology uses all available GNSS signals equally, without any constellation preference for fast and stable solutions. The MB-One features GNSS and RTK technology with features such as Ethernet that allows for a wide variety of unique applications, such as unmanned, agriculture, marine and military systems.

The MB-One has an enhanced dual-core GNSS engine with 240 channels capable of tracking a large range of GNSS systems including GPS, GLONASS, Galileo and BeiDou. It utilizes over-the-air satellite corrections using L-Band hardware to achieve decimeter-level accuracy. This module is capable of receiving and decoding Precise Point Positioning (PPP) for an accurate position solution that eliminates the need for a local base station.

Key Features
  • Dual antenna input
  • Precise Heading Pitch/Roll
  • Precise Point Positioning using L-Band services like Trimble RTXâ„¢
  • Dual Core Engine with Ashtech Z-Bladeâ„¢ Technology
  • L1-only RTK and L1/L2 RTK with Precise Platform Positioning (P3 ) including heading
  • Ethernet Support for web based applications
  • Small form factor, power saving, and rugged design for easy integration in demanding environments
The MB One offer low-power consumption in an extremely compact board.

The dual-core design offers distinct advantages such as a dedicated core for GNSS tracking that optimizes power consumption and ensures low power use while maintaining performance.

Ashtech MB-One Models and Options
Contact us for assistance with models and options.

PART NUMBER RECEIVER CONFIGURATION
 FEATURES
97768-02 MB-One Autonomous SBAS Positioning, GPS L1, 2Hz, DGPS Rover*
97768-03 MB-One Raw Data Version L1 GPS + GLONASS,  2Hz, DGPS Rover*
97768-04 MB-One Heading Onlly Rover (GPS / GLONASS) DGPS Rover*, 20Hz
97768-05 MB-One RTK Rover L1 / L2  GPS / GLONASS,  20Hz
97768-06 MB-One RTK Base Station Only (With Moving Base Capability),  20Hz
97768-07 MB-One Full Capability RTK Base / Rover (Moving Base + Rover), 20 Hz

*Limited DGNSS available.

END OF LIFE (EOL) NOTICE FOR ASHTECH OEM MB-ONE CUSTOMERS
