Home » Products » GPS Signal Distribution » Antenna Splitter » ALDCBS1X4 Active Antenna Splitter 1X4 Print Page

Item #: ALDCBS1X4

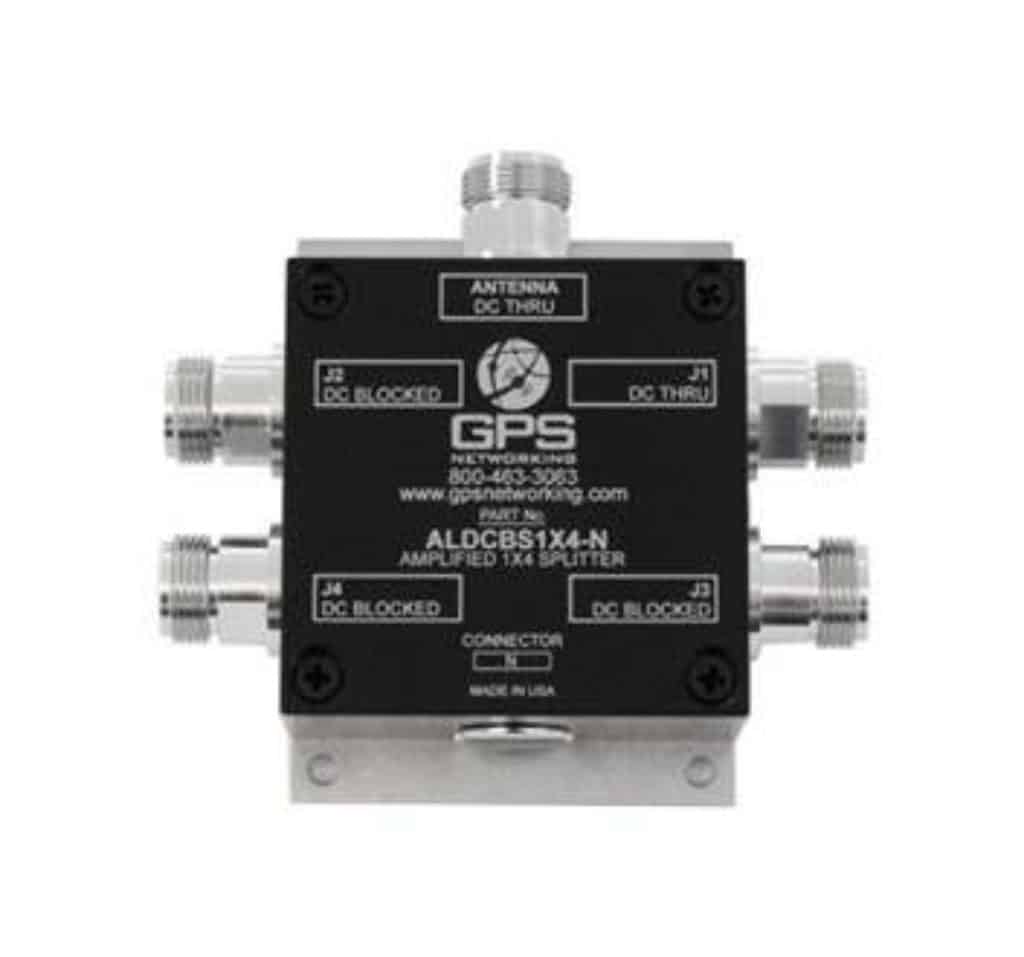

ALDCBS1X4 Active Antenna Splitter 1X4


The ALDCBS1X4 GPS Amplified Splitter from GPS Networking is a one input, four output device with a 17dB minimum gain block. This Amplified 1X4 Splitter, DC blocked is available with BNC, N-type, SMA, or TNC connectors.

View Full Description
SKU: ALDCBS1X4 Categories: , , Manufacturer: GPS Networking

GPS Networking ALDCBS1X4 GPS Active Antenna Splitter

The GPS Networking ALDCBS1X4 GPS Amplified Splitter is a one input, four output device with a 17dB minimum gain block. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness. In the normal configuration, one of the splitter RF outputs (J1) passes DC from the connected GPS receiver through the splitter to the antenna, allowing the GPS receiver to power both the antenna and the splitters amplifier. The other RF outputs (J2, J3 and J4) are DC loaded with a 200 ohms resistor to simulate the antenna current draw and prevent false antenna fault detection from connected receivers.

NavtechGPS is your GPS Networking source for RF networking products, including splitters and amplifiers for distributed antenna systems (DAS).

GPS Networking ALDCBS1X4 Data Sheet

If you chose networking, you must also choose power options. Please review this explanation of your power options.

For military power options, please download this PDF: Military Power Options (MC vs MC28)
