Item #: MarinePak7

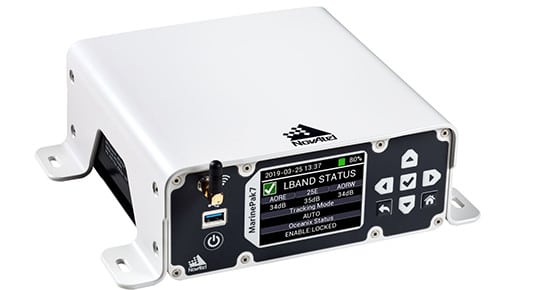

MarinePak7 Marine GNSS Receiver

The NovAtel MarinePak7 is a marine-certified Global Navigation Satellite System (GNSS) receiver with NovAtel OEM technology that delivers precise positioning up to three centimeters (95 percent) for demanding nearshore marine applications. The MarinePak7 supports multi-constellation GNSS signals and RTK corrections via mobile phone networks and MSK Beacon corrections.

SKU: MP7720 Categories: , , , Manufacturer: NovAtel

NovAtel MarinePak7 Marine GNSS Receiver

The MarinePak7 is a marine-certified Global Navigation Satellite System (GNSS) receiver with NovAtel OEM technology that delivers precise positioning and timing for demanding nearshore marine applications.

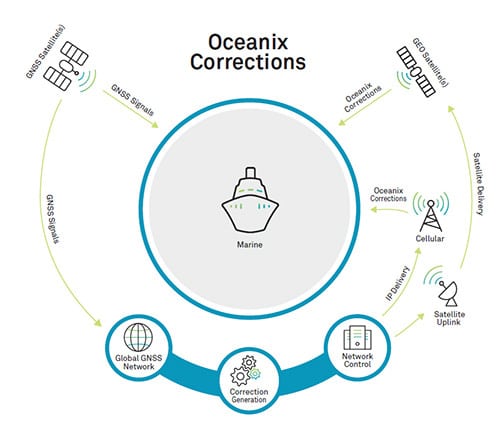

Engineered for harsh marine environments, the MarinePak7 is designed to receive Oceanix Correction Services for nearshore applications with accuracy levels up to three centimeters (95 precent). The MarinePak7 features an intuitive user interface that reduces training and setup time.

The MarinePak7 supports multi-constellation GNSS signals and RTK corrections via mobile phone networks and MSK Beacon corrections. Combined with SPAN GNSS+INS technology for attitude and heave measurements, this marine GNSS receiver delivers a robust, reliable and assured position at sea.

Several optional features are available with the MarinePak7, including GNSS heading, interference mitigation and UHF radio corrections. Users can add a removable battery, making the MarinePak7 a completely portable solution. With the battery, the marine receiver continues to operate when no direct power source is available and during periods of power loss.

Features

  • Built to endure challenging marine environments
  • Multi-constellation, multi-frequency GNSS signal tracking
  • GNSS+INS capabilities for velocity, attitude and heave measurements
  • Multi-channel L-Band supports Oceanix Correction Services
  • Reception of MSK Beacon corrections for safe navigation
  • Capable of PPP or RTK positioning
  • GNSS Heading
  • Internal or removable battery for a completely portable solution

NovAtel MarinePak7 Marine GNSS Receiver Data Sheet

MarinePak7 Enclosure

MP7720-DDD-PZN-TMN-A MarinePak7 enclosure. GPS+GLO, L1/L2, Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720-DDD-RZN-TBN-A MarinePak7 enclosure. GPS+GLO, L1/L2, Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720-DDD-RZN-TBN-P3-A MarinePak7 enclosure. GPS+GLO, L1/L2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections, SPAN Enabled, Profiles/Heave enabled, High grade tactical.
MP7720-DDN-PNN-TMN-A MarinePak7 enclosure. GPS+GLO, L1/L2, Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720-DDN-RNN-TBN-A MarinePak7 enclosure. GPS+GLO, L1/L2, RTK +Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements and Base Station Corrections
MP7720-FDD-PZN-TMN-A MarinePak7 enclosure.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720-FDD-RZN-TBN-A MarinePak7 enclosure.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections
MP7720-FDD-RZN-TBN-P3-A MarinePak7 enclosure.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections, SPAN Enabled, Profiles/Heave enabled, High grade tactical.
MP7720-FDN-PNN-TMN-A MarinePak7 enclosure. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720-FDN-RNN-TBN-A MarinePak7 enclosure. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements and Base Station Corrections
MP7720U-DDD-PZN-TMN-A MarinePak7 enclosure with UHF. GPS+GLO, L1/L2, Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720U-DDD-RZN-TBN-A MarinePak7 enclosure with UHF. GPS+GLO, L1/L2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections.
MP7720U-DDD-RZN-TBN-P3-A MarinePak7 enclosure with UHF. GPS+GLO, L1/L2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections, SPAN Enabled, Profiles/Heave enabled, High grade tactical.
MP7720U-DDN-PNN-TMN-A MarinePak7 enclosure with UHF. GPS+GLO, L1/L2, Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720U-DDN-RNN-TBN-A MarinePak7 enclosure with UHF. GPS+GLO, L1/L2, RTK +Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements and Base Station Corrections
MP7720U-FDD-PZN-TMN-A MarinePak7 enclosure with UHF.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720U-FDD-RZN-TBN-A MarinePak7 enclosure with UHF.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections
MP7720U-FDD-RZN-TBN-P3-A MarinePak7 enclosure with UHF.GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, ALIGN Heading, 20Hz Data Output Rate, Measurements and Base Station Corrections, SPAN Enabled, Profiles/Heave enabled, High grade tactical.
MP7720U-FDN-PNN-TMN-A MarinePak7 enclosure with UHF. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements Only, No Base Station Corrections
MP7720U-FDN-RNN-TBN-A MarinePak7 enclosure with UHF. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, RTK +Oceanix PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Measurements and Base Station Corrections

Other

12023325 V560 marine antenna, L1/L2/L5 GPS, L1/L2/L3 GLONASS, B1/B2/B3 BeiDou, E1/E5/E6 Galileo, L-band, MSK Beacon, Inmarsat Rejection, IEC 60945 Certified, TNC Connector
