Item #: BD982

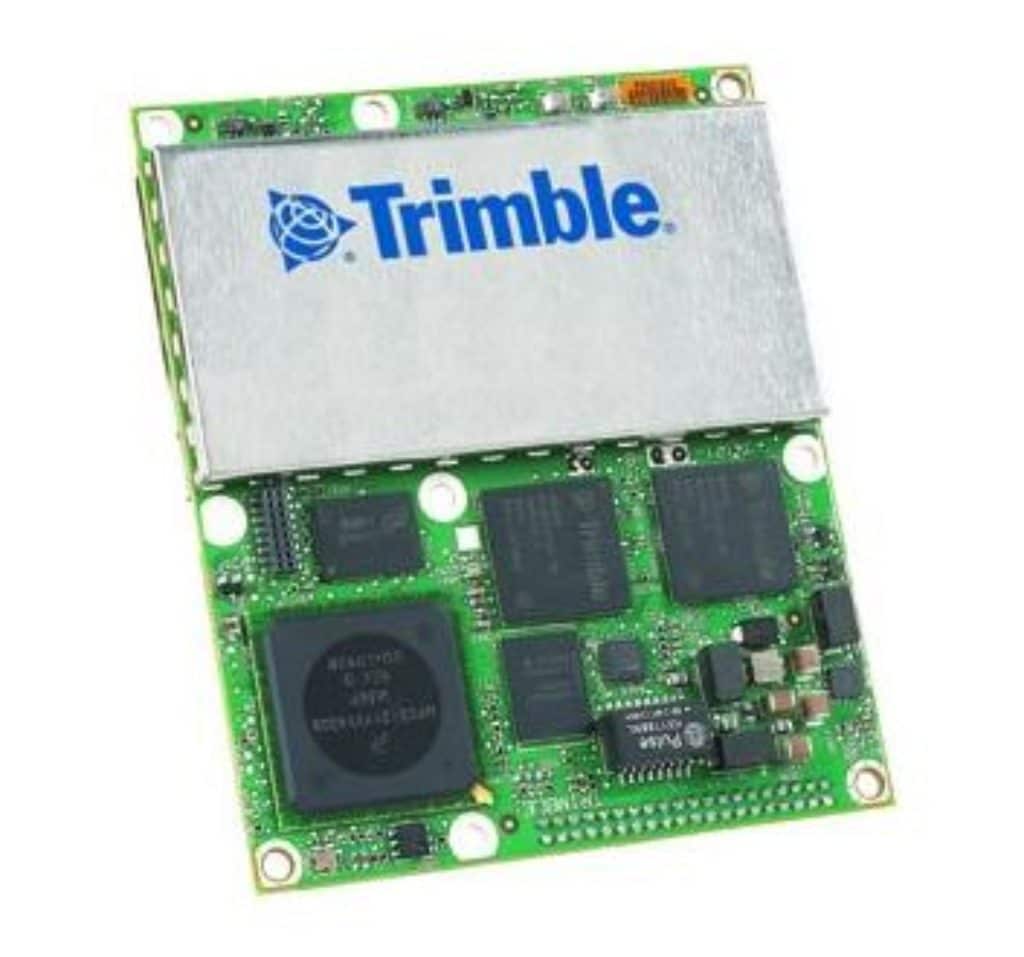

BD982 GNSS Receiver

The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the BD992. Please see EOL Notice and Related Products tabs for more information.

The Trimble BD982 GNSS receiver is a single board solution for precise position and heading. The product delivers the latest in GNSS signal support, delivering multi-constellation RTK baselines between the two connected antennas and to a remote base station.

SKU: BD982 Categories: , , , Manufacturer: Trimble Navigation

Trimble BD982 Receiver

DUAL-ANTENNA RECEIVER DELIVERS CENTIMETER ACCURATE POSITIONS and PRECISE HEADING

A compact, dual-antenna GNSS receiver designed to deliver centimeter accurate positions and precise heading to challenging guidance and control applications.
The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the BD992. Please see EOL Notice and Related Products tabs for more information.

The BD982 GNSS system is a single board solution for precise position and heading. It delivers multi-constellation RTK baselines between the two connected antennas to a remote base station. The dual chip BD982 passes the independent observations from the antennas to the processor where the multi-constellation RTK baselines are computed.

The Trimble BD982 GNSS supports GPS L1/L2/L5 and GLONASS L1/L2 signals. In addition, Trimble products are committed to the next generation of modernized GNSS configurations by making Galileo-compatible products available usually well in advance of Galileo system availability.

The new Trimble BD982 is capable of tracking the experimental GIOVE-A and GIOVE-B test satellites for signal evaluation and test purposes.

FEATURES
  • Dual-antenna inputs for precise heading calculation
  • Multi-constellation GNSS Support
  • OmniSTAR VBS/XP/G2/HP support
  • Flexible RS232, USB, Ethernet or CAN Interfacing
  • Centimeter-level position accuracy

End of Life (EOL) Notice

BD982 EOL Notice

BD982 Receivers

Part #         Description:

77911-01 - Trimble BD982 L1 GPS (Autonomous/SBAS Only, Single Antenna Enabled)
77911-02 - Trimble BD982,L1 DGPS Heading (Dual Antenna Enabled)*
77911-03 - Trimble BD982,OMNISTAR HP/XP/G2 Heading (Dual Antenna Enabled)*
77911-04 - Trimble BD982,RAW MEASUREMENT DATA ONLY (Dual Antenna Enabled)
77911-05 - Trimble BD982,RTK ROVER L1/L2/L5 GPS (Single Antenna Enabled)
77911-06 - Trimble BD982,RTK REFERENCE/ROVER L1/L2/L5 GPS Heading (Dual Antenna Enabled)
77911-07 - Trimble BD982,RTK REFERENCE/ROVER GPS/GLONASS (Single Antenna Enabled)
77911-00 - Trimble BD982,RTK REFERENCE/ROVER GPS/GLONASS Heading (Dual Antenna Enabled)
77911-08 - Trimble BD982,RTK REFERENCE/ROVER GPS/GLONASS/GIOVE (Single Antenna Enabled)
77911-09 - Trimble BD982,RTK REFERENCE/ROVER GPS/GLONASS/GIOVE Heading (Dual Antenna Enabled)
