Item #: TW125

TW125 Low Current / Low Voltage 1.2 to 1.8GHz 25dB In-Line Amp

PLEASE NOTE: The TW 125 has been replaced by the TW125B.

The TW125 by Tallysman Wireless is a low cost, rugged, waterproof, low noise, low current/low voltage in-line amplifier, for all GNSS frequency signals.

SKU: 33-125 Categories: , , Manufacturer: Tallysman Wireless

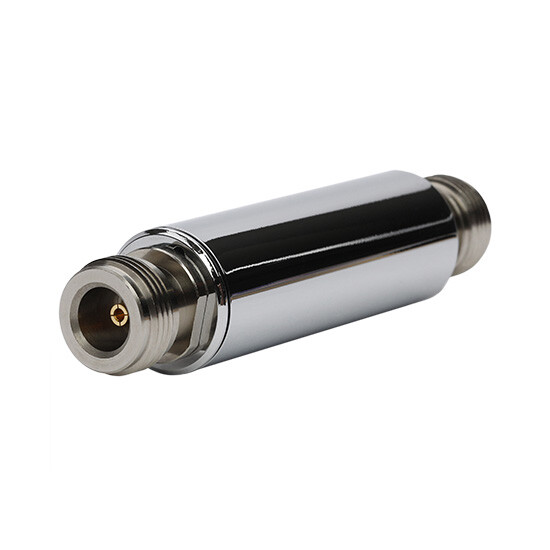

Tallysman TW125 In-Line Amplifier

PLEASE NOTE: The TW125 has been replaced by the TW125B.

The TW125 by Tallysman Wireless is a low cost, rugged, waterproof, low noise, low current/low voltage, 1.2 to 1.8 GHz band, 25dB gain in-line amplifier, specially designed to amplify all GNSS frequency signals, from GPS L2 to GLONASS L1. The TW125 provides for much longer cable runs from antenna to receiver, for applications such as mast-mount, large vehicle and timing systems, without degradation of system sensitivity.

Its low loading allows for both the antenna and the TW125 in-line amplifier to be powered by the GNSS receiver. The TW125 passes DC supply to the antenna, therefore not requiring additional hardware such as bias-T, power cable and power supply.

FEATURES
  • Low Current / low voltage
  • Very low noise
  • Wide input voltage 3 to 10 Volts
  • Nickel-plated brass, IP67 compliant housing
  • Powered via antenna coax from receiver
  • 50 Ohm port impedance
  • Available SMA & TNC jack connectors
  • RoHS compliant

Please specify connector type in the notes section of your order.
