Item #: TW3130

TW3130 GPS L1 Precision Grade Antenna

This product has been replaced by the TW3100.

The TW3130 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications. This is a specific configuration. See specifications below.

SKU: 33-3130 Categories: , Manufacturer: Tallysman Wireless

TW3130 GPS L1 Antenna (33-3130-0-00)


The TW3130  had been replaced by the TW3100.

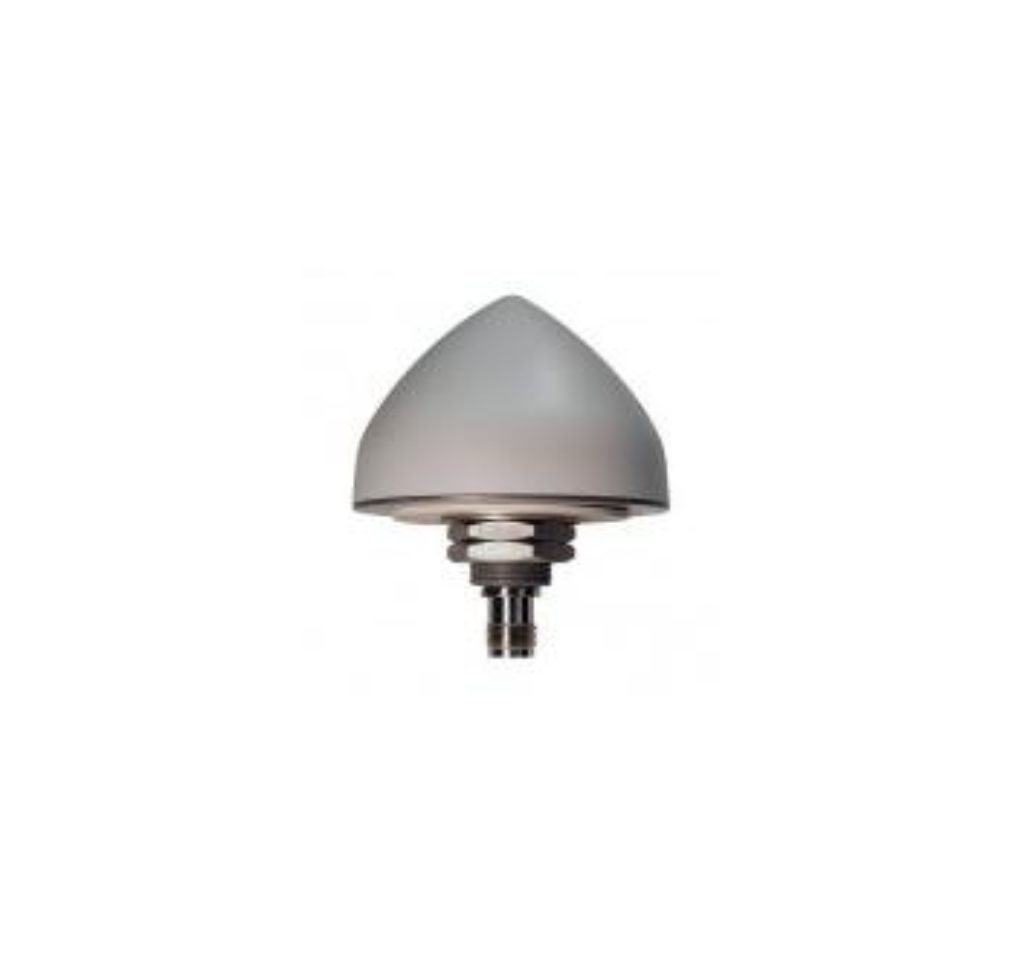

This antenna is being sold with this specific configuration. This TW3130 (33-3130-0-00 is housed in a compact, industrial- grade weather-proof, domed shaped enclosure. Its radome is available in dark gray or white, with a TNC female connector and a L-bracket for pole mount is available (P/N#23-0040-0). For other configurations, please contact us.

The TW3130 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications.

The TW3130 features a custom high performance, dual-feed, wide band patch element. Its LNA configuration provides a LNA for each feed, a mid section high rejection SAW for the combined signal, followed by a final stage of LNA. It provides ±10MHz bandwidth centred on 1575.42 MHz and covers all GPS L1, Galileo E1 and SBAS (WAAS/EGNOS/MSAS) signals. It features great axial ratio over the entire frequency range (<3dB), excellent circular polarized signal reception, great multipath rejection and out-of-band signal rejection.

The TW3130 is housed in a compact, industrial- grade weather-proof, domed shaped enclosure. Its radome is available in dark gray or white, it comes with a TNC female connector and a L-bracket for pole mount is available (P/N#23-0040-0).

Features:
  • Great axial ratio
  • Low noise LNA: 1 dB
  • High rejection SAW filter
  • High gain: 30 dB typ.
  • Low current: 10 mA typ.
  • ESD circuit protection: 15 KV
  • Wide voltage input range: 3.0 to 10 VDC
  • Weather proof housing: IP67



Tallysman Wireless TW3130 Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
