Item #: TW7972

TW7972 Triple Band GNSS Antenna

$373.75

The Tallysman TW7972 is an Accutenna® technology antenna providing triple band GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5 plus L-band correction services coverage and is especially designed for precision triple frequency positioning.

View Full Description
SKU: 33-7972 Categories: , Manufacturer: Tallysman Wireless

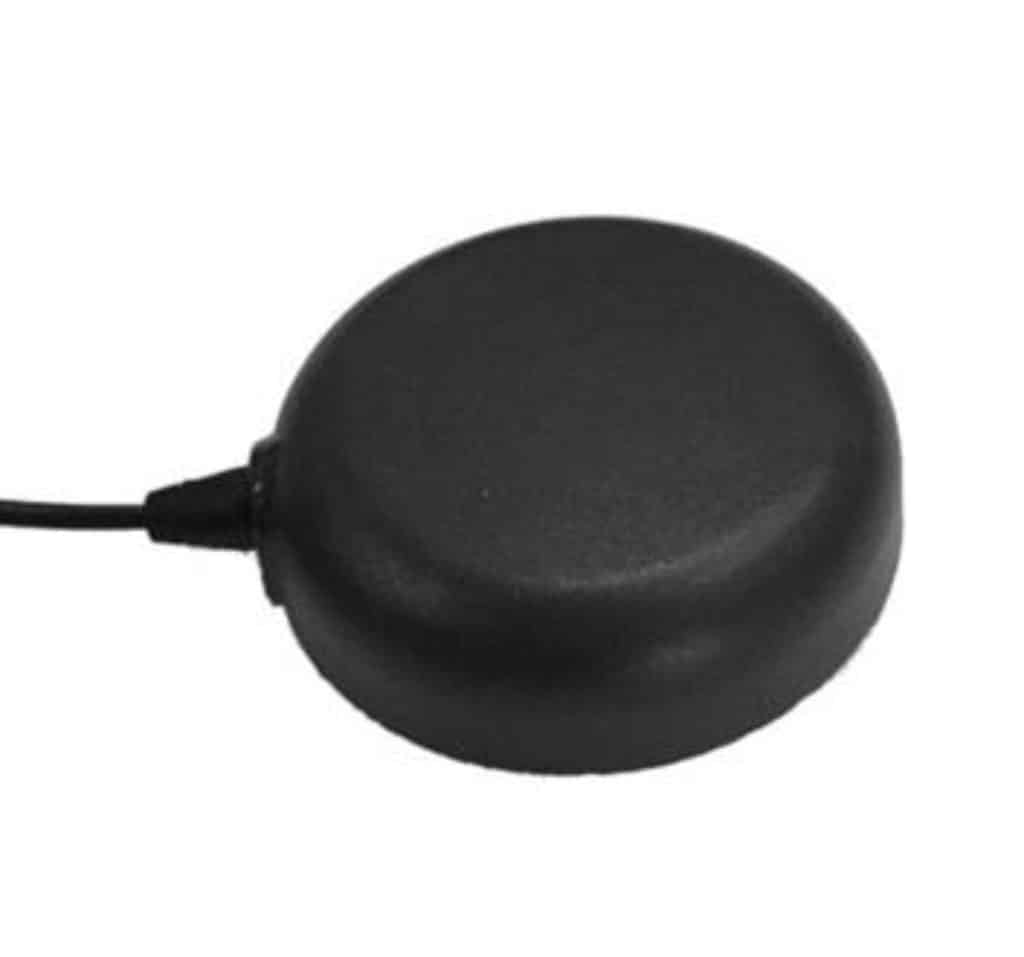

Tallysman TW7972 Antenna

The Tallysman TW7972 is an Accutenna® technology antenna providing triple band GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5 plus L-band correction services coverage and is especially designed for precision triple frequency positioning. The TW7972 provides multi-path signal rejection, a linear phase response, and tight Phase Centre Variation (PCV). This antenna is ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters. This antenna sets a new price/performance standard in its category.

The antenna also has a strong pre-filter to mitigate inter-modulated signal interference from LTE and other cellular bands.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2.5dB typ.
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for RTK applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW7972 is housed in a magnetic mount (with pre-tapped screw holes), weather-proof enclosure for permanent installations. A 100 to 120mm ground plane is recommended.

This product is also available in an OEM format (TW3967 or TW3972E)

The TW7972 is IP67, REACH, and RoHS compliant.

Tallysman TW7972 Triple Band GNSS Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
