Item #: VP6300

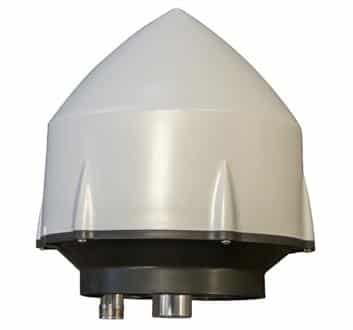

VeraPhase 6300 GNSS Antenna

The VP6300 antenna is capable of receiving GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, and Galileo E1/E5a+b (11674 1254MHz plus 1559-1610MHz). It has consistent performance (gain, axial ratio, PCV, and PCO) across the full bandwidth of the antenna. It provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5dB at zenith, <2 dB at horizon). It has an exceptional front to back ratios, high efficiency (>70%), a tight PCV, and near constant PCO for all azimuth and elevation angles, over all in-band frequencies.

SKU: VP6300 Categories: , Manufacturer: Tallysman Wireless

Tallysman VeraPhase 6300

The patented VeraPhase® technology produces the results of choke ring technology but is lighter, smaller, more economical and requires less power.

The antenna provides the lowest axial ratios (horizon to horizon, over all azimuths) across all received frequencies (<0.5dB at zenith, <2 dB typ. at horizon). It provides exceptional front to back ratios, high efficiency (>70%), a tight PCV (± 1mm), and near constant PCO for all azimuth and elevation angles, over all in-band frequencies. The VP6300 is ideal for GNSS / RTK reference networks, monitoring stations, and other high precision applications.

The VP6300 antenna is capable of receiving GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, and Galileo E1/E5a b (11674 1254MHz plus 1559-1610MHz). It has consistent performance (gain, axial ratio, PCV, and PCO) across the full bandwidth of the antenna. It provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5dB at zenith, <2 dB at horizon). It has an exceptional front to back ratios, high efficiency (>70%), a tight PCV, and near constant PCO for all azimuth and elevation angles, over all in-band frequencies.

Features

  • Low axial ratio from horizon to horizon
  • Very Tight Phase Center Variation (<1.5mm)
  • Invariant performance from: 2.7 to 24 VDC
  • Space in housing for integrated L1/L2 receivers RTK or other OEM system.

Benefits

  • Broadest tracking elevation
  • Extreme precision
  • Excellent multi-path rejection
  • Great signal to noise ratio
  • IP67, REACH, and RoHS compliant

Tallysman VeraPhase 6300 GNSS Antenna Data Sheet

The VeraPhase® technology provides:
The lowest axial ratios from horizon to horizon across all GNSS frequencies
The most stable and tightest Phase Centre Variations across all frequencies (+/- 1mm)
The highest gain across all GNSS frequencies (1164 – 1300MHz + 1559 – 1610MHz)

Tallysman VeraPhase® 6000 White Paper

Langley and White study comparing VeraPhase® antenna to Choke Ring Antennas

AVAILABLE MODELS

This antenna comes with various connector and radome options. Contact NavtechGPS for details.

VeraPhase 6300 Geodetic Antenna with flat Radome-35dB gain

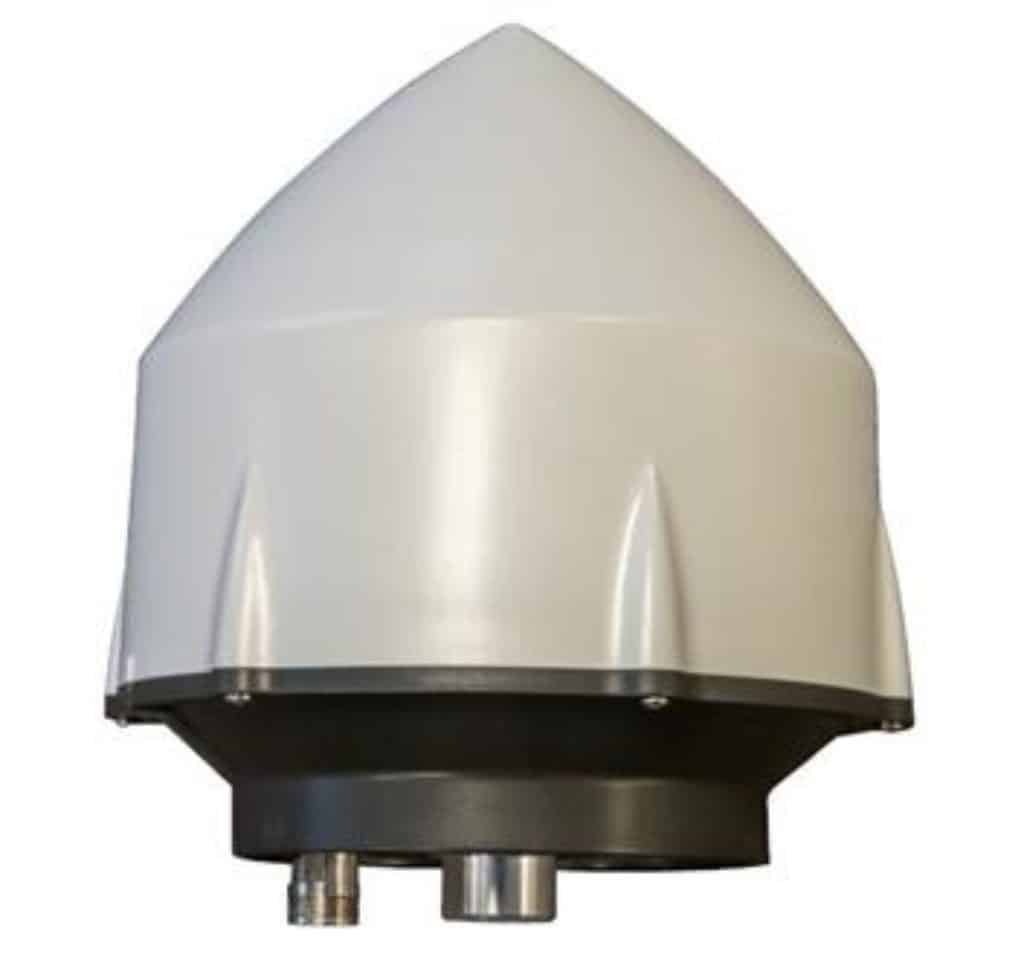

VeraPhase 6300 Geodetic Antenna with conical Radome-35dB gain

VeraPhase 6300 Geodetic Antenna with flat Radome-50dB gain

VeraPhase 6300 Geodetic Antenna with conical Radome-50dB gain
