Item #: GNSS-500

VEXXIS™ GNSS-500 Series Antennas

The low profile design and aerodynamic enclosure of the NovAtel GNSS-500 series antennas are ideal for ground vehicles in applications such as agriculture, machine control and mobile mapping.

SKU: VEXXIS Categories: , Manufacturer: NovAtel

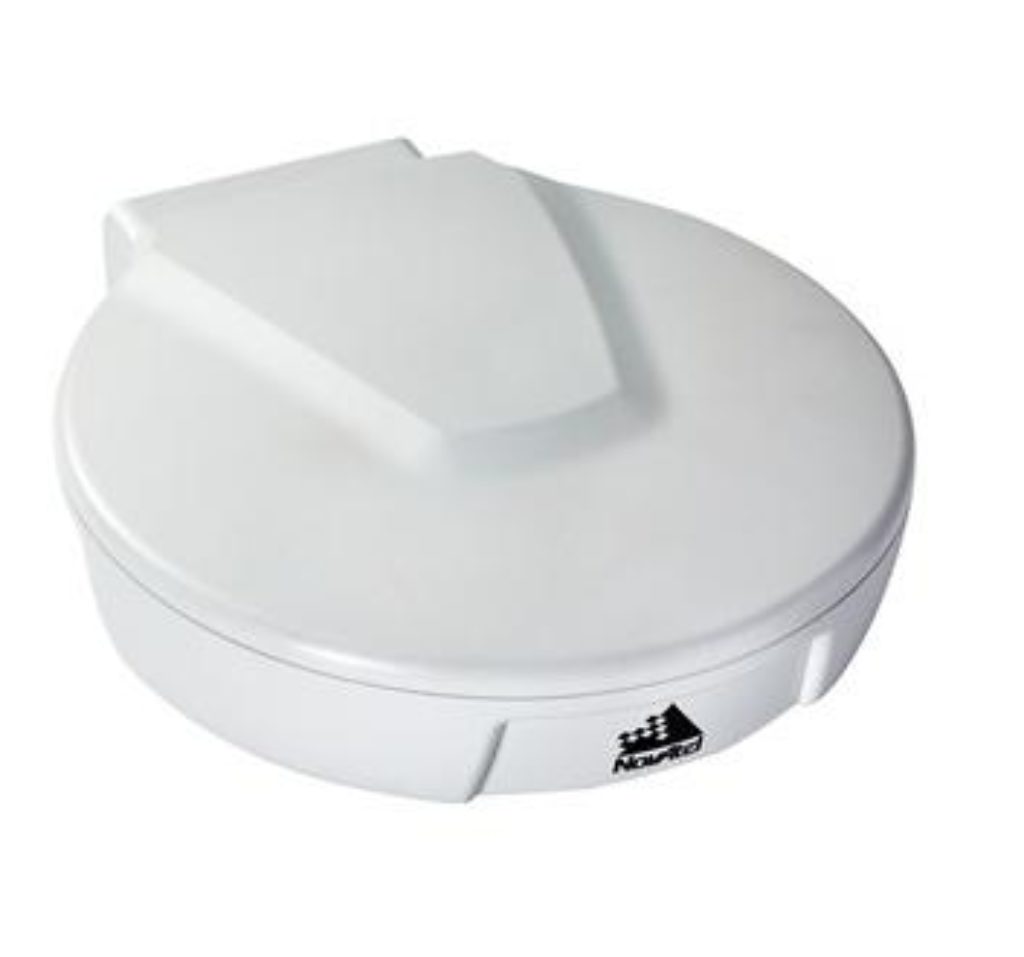

NovAtel VEXXIS™ GNSS-500 Series Antennas

The GNSS-500 series of antennas offers outstanding circularly polarized, symmetric radiation patterns with superior multipath rejection performance for a  stable phase center, as well as low elevation satellite tracking with high peak zenith gain. The new Vexxis™ technology enables the antenna to track the maximum number of satellites in any environment for an enhanced positioning solution.

The low profile design and aerodynamic enclosure is ideal for ground vehicles in applications such as agriculture, machine control and mobile mapping. Vehicle mounting is easy with the antennas magnetic or screw mounting options. Signal reception is unaffected by the rotation of the antenna or satellite elevation, further simplifying installation and placement. An exceptionally designed, durable enclosure has been proven to sustain harsh conditions by meeting IP67 and MIL-STD-810G for vibration and salt fog.

Both antennas in the VEXXIS GNSS-500 series are capable of receiving correction services transmitted in the L-Band, such as TerraStar. Customers can use the antenna for GPS-only or multi-constellation applications, resulting in increased flexibility and reduced equipment costs.

Features:

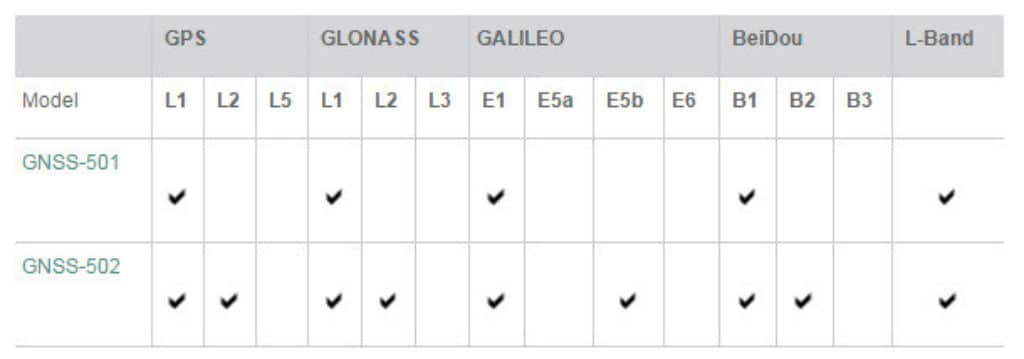

  • L1, L2, E1, E5b, B1, B2 supported frequencies, including L-band signal reception
  • Multi-point antenna feed provides stable phase center and enhanced multipath rejection
  • Low-profile enclosure ideal for machine control applications
  • Designed for high quality performance when used with NovAtel® GLIDE™ technology
  • Magnetic or screw mount options for easy installation

NovAtel GNSS-501 and GNSS-502 Datasheet

The GNSS-501 antenna is designed with a low profile, aerodynamic enclosure, ideal for ground vehicles in applications such as agriculture, machine control and mobile mapping. Learn more

The GNSS-502 antenna is designed with a low profile, aerodynamic enclosure, ideal for ground vehicles in applications such as agriculture, machine control and mobile mapping. Learn more.

NovAtel Antenna Accessories

Antenna cables :

  • GPS-C006 5 meter RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • GPS-C016 15 meter RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • GPS-C032 30 meter, low-loss RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • 60723154 15 cm RF cable with straight SMA male to TNC female connectors
  • 60723178 5 meter RF cable with straight SMA to TNC connectors
  • 60723177 2.5 meter RF cable with straight SMA male to TNC male connectors
