VN-310E Tactical Embedded GNSS/INS

The VN-310E tactical-grade, high-performance, dual antenna GNSS-Aided Inertial Navigation System (INS) incorporates the latest inertial sensor and GNSS technology. This extremely compact unit is ideal for SWaP-C applications where size, weight, power and profile are as important as precision.

SKU: VN-310E Categories: , , , , , , Manufacturer: VectorNav Technologies

VectorNav VN-310E Embedded Tactical Grade Dual GNSS Aided Inertial Navigation System

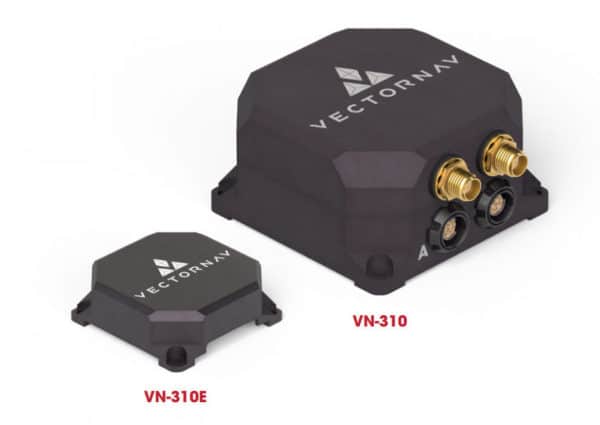

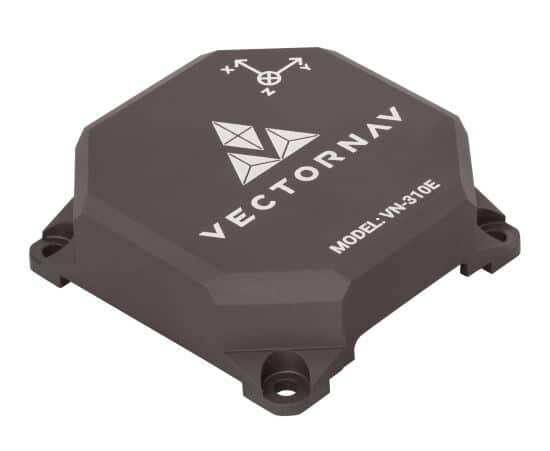

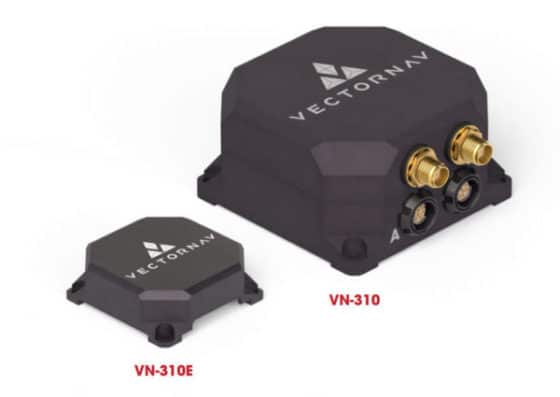

The VN-310E  is a miniature tactical-grade, high-performance, dual antenna GNSS-Aided Inertial Navigation System (INS). Like the VN-310, the VN310E combines tactical-grade inertial sensors, two multi-band L1/L2/ E1/E5b GNSS receivers, and advanced Kalman filtering algorithms to provide optimal estimates of position, velocity, and attitude in a miniature footprint.

VN310E Embedded Packaging Option Specifications

The VN-310E brings unprecedented capability and performance to SWaP-C constrained applications. It is designed to meet the demands of most military and aerospace applications.

► Miniature footprint: 31 x 31 x 11 mm
► Light weight: 16 grams
► Low Power: < 1.6 W
► 24-pin 1mm pitch board-to-board interface connector

Please refer to Related Product tab for the Tactical Grade VN-310 and other VectorNav product options.

VN-310E Tactical Embedded GNSS/INS Data Sheet

VectorNav Tactical Embedded Brochure

VectorNav Product Brochure
