Item #: VN-210E

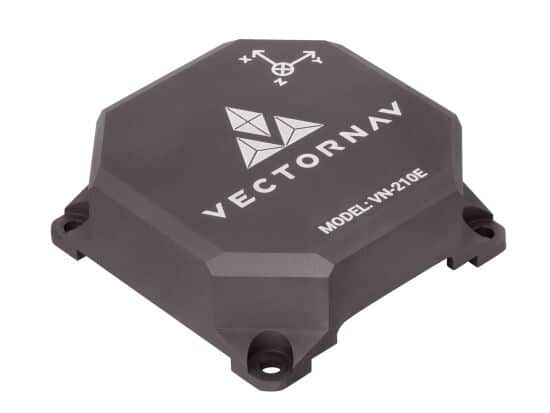

VN-210E Tactical Embedded GNSS Aided INS

The VectorNav VN-210E  tactical embedded GNSS-aided INS is a lightweight, low-profile unit. Measuring just 31 x 31 x 11 mm and 13 g, its size makes it perfect for applications where payload, power, and profile are just as important as precision.

SKU: VN-210E Categories: , , , Manufacturer: VectorNav Technologies

VectorNav VN-210E Tactical Embedded GNSS-Aided Inertial Navigation System

The VN-210E is an embedded, tactical-grade, high performance GNSS-Aided Inertial Navigation System (GNSS/INS) which combines 3-axis gyros, accelerometers and magnetometers, a Multi-band L1/L2/E1/E5b GNSS receiver, and advanced Kalman filtering algorithms to provide optimal estimates of position, velocity, and attitude. The VN-210E utilizes VectorNav’s proprietary onboard Extended Kalman Filter (EKF) to optimally combine high bandwidth inertial sensor measurements with high-accuracy, low bandwidth GNSS measurements to provide high-accuracy, low latency position, velocity, and attitude measurements in a miniature footprint.

Sensor Summary

VectorNav proprietary Extended Kalman Filter INS delivers coupled position, velocity, and a continuous attitude solution over the complete 360° range of operation

â–º Miniature footprint: 31 x 31 x 11 mm
â–º Light weight: 14 grams
â–º Low Power: < 1.5 W
â–º 24-pin 1mm pitch board-to-board interface connector

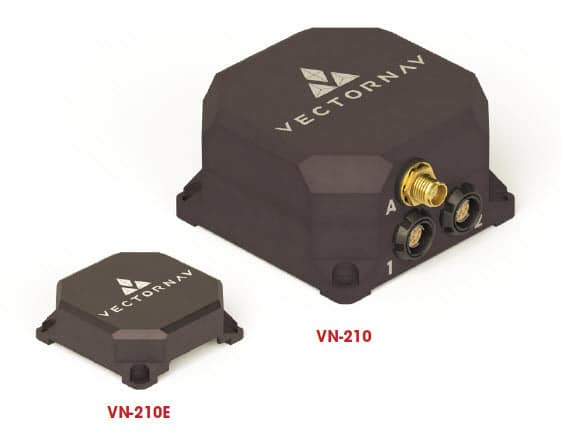

Please refer to Related Product tab for the Tactical Grade VN-210 and other VectorNav product options.
