Item #: VN-110E

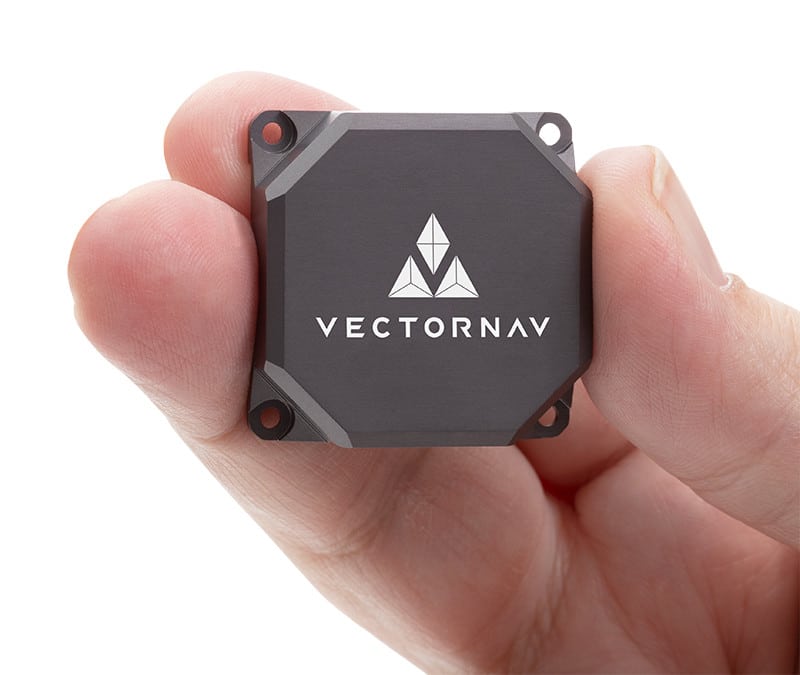

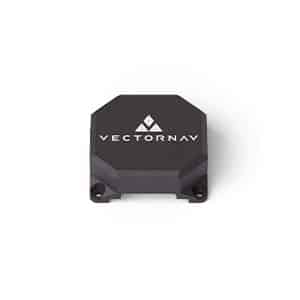

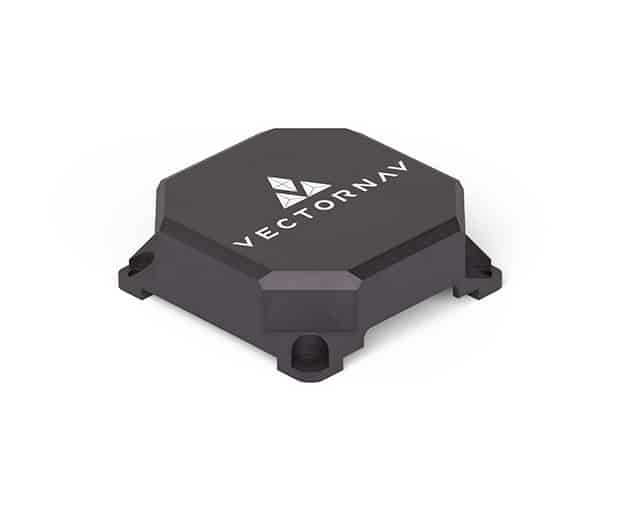

VN-110E Tactical Embedded IMU/AHRS

The VN-110E is a miniature, light weight, low power, high performance Inertial Measurement Unit (IMU) and Attitude and Heading Reference System (AHRS) available in a tactical grade embedded module package.

SKU: VN-110E Categories: , , , , , Manufacturer: VectorNav Technologies

VectorNav VN-110E Tactical Embedded IMU and AHRS

The VN-110E brings unprecedented capability and performance to SWaP-C constrained applications. The VectorNav VN-110E is a miniature tactical-grade inertial measurement unit and attitude heading reference system available in a tactical grade embedded module package.  Along with providing calibrated sensor measurements, the VN-110E also computes and outputs a real-time 3D orientation solution that is continuous over the complete 360 degrees of motion. The VN-110E incorporates inertial sensor technology, combining 3-axis accelerometers, 3-axis gyroscopes and 3-axis magnetometers.

Features

► Miniature footprint: 31 x 31 x 11 mm
► Light weight: 12 grams
► Low Power: < 1 W
► 24-pin 1mm pitch board-to-board interface connector

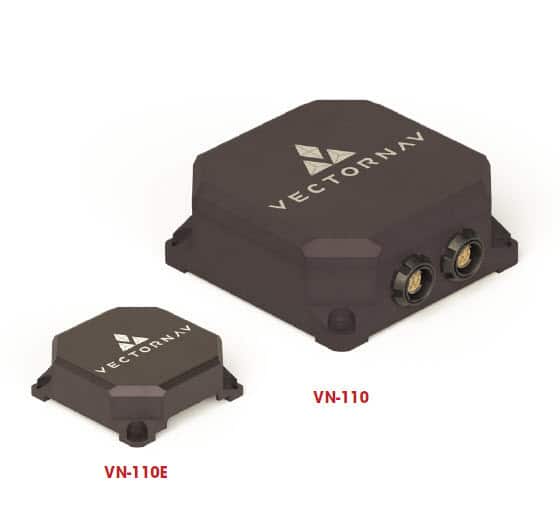

Please refer to the Related Product tab for the Tactical Grade VN-110 and other VectorNav product options.

VectorNav VN-110E Tactical Embedded IMU/AHRS Data Sheet

VectorNav Tactical Embedded Brochure

VectorNav Product Brochure
