NovAtel 700 Series High Performance Antennas

NovAtel GPS-700 Series antennas have a sleek, compact form factor and are recognized for their superior multipath rejection and highly stable phase center. Incorporating NovAtels patented Pinwheel technology, these GNSS antennas provide you with choke-ring-like performance without the cumbersome size and weight. Please note that the GPS-701-GG,  GPS-702-GGL and GPS-703-GGG are previous generation products and have been discontinued by the manufacturer. Other 700 series are still available.

SKU: GPS-700 Categories: , Manufacturer: NovAtel

NovAtel GPS-700 Series Antennas

Please note that the GPS-701-GG, GPS-702-GGL and GPS-703-GGG are previous generation products and have been discontinued by the manufacturer. Other 700 series are still available.

The NovAtel GPS-700 series takes advantage of pinwheel technology to provide exceptional multipath rejection. Signals arriving from low elevation angles are attenuated, virtually eliminating position errors due to troublesome signal reflections.

For added reliability, the antennas phase center remains constant as the azimuth and elevation angle of satellites change. With signal reception unaffected by the rotation of the antenna or satellite elevation, placement and installation can be completed with ease.

While providing equivalent multipath reduction, the GPS-700 series is significantly smaller, lighter, and more economical than a combined choke ring and antenna solution. Both L1 and L1/L2 models share the same enclosure and mounting system for quick conversion from single- to dual-frequency operation.

NovAtel GPS 704X Data Sheet

NovAtel GPS 700 Series Brochure

NovAtel GPS-701-GG Data Sheet (discontinued)

NovAtel GPS-701-GGL Data Sheet (disontinued)

NovAtel GPS-702-GGL Data Sheet (discontinued)

NovAtel GPS-702-GG Data Sheet (discontinued)

NovAtel GPS-702L Data Sheet

NovAtel GPS-703-GGG Data Sheet (discontinued)

Quadruple-Frequency
GPS-704-X Suitable for receiving GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, and GLONASS L1/L2, TNC connector

Triple-Frequency

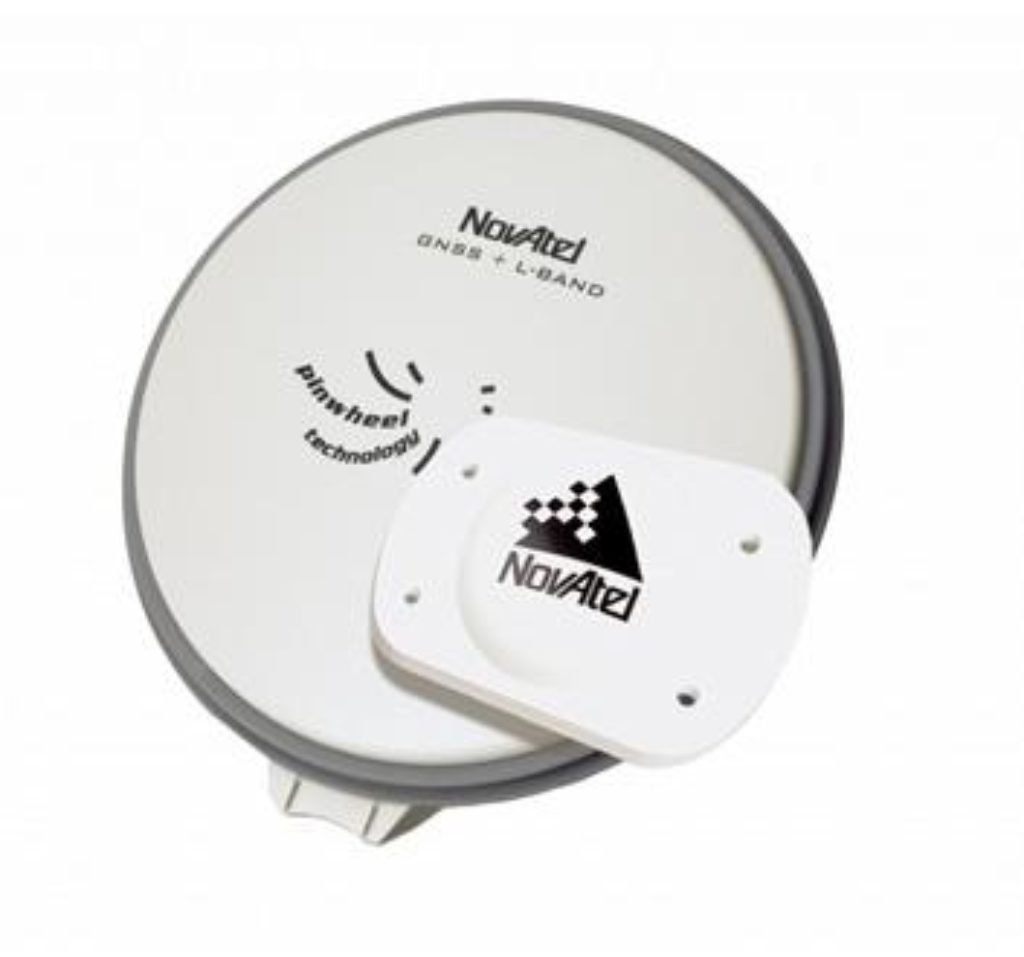

GPS-703-GGG L1/L2/L5 GPS, L1/L2 GLONASS Antenna, TNC connector (discontinued)

L1/L2 Dual-Frequency

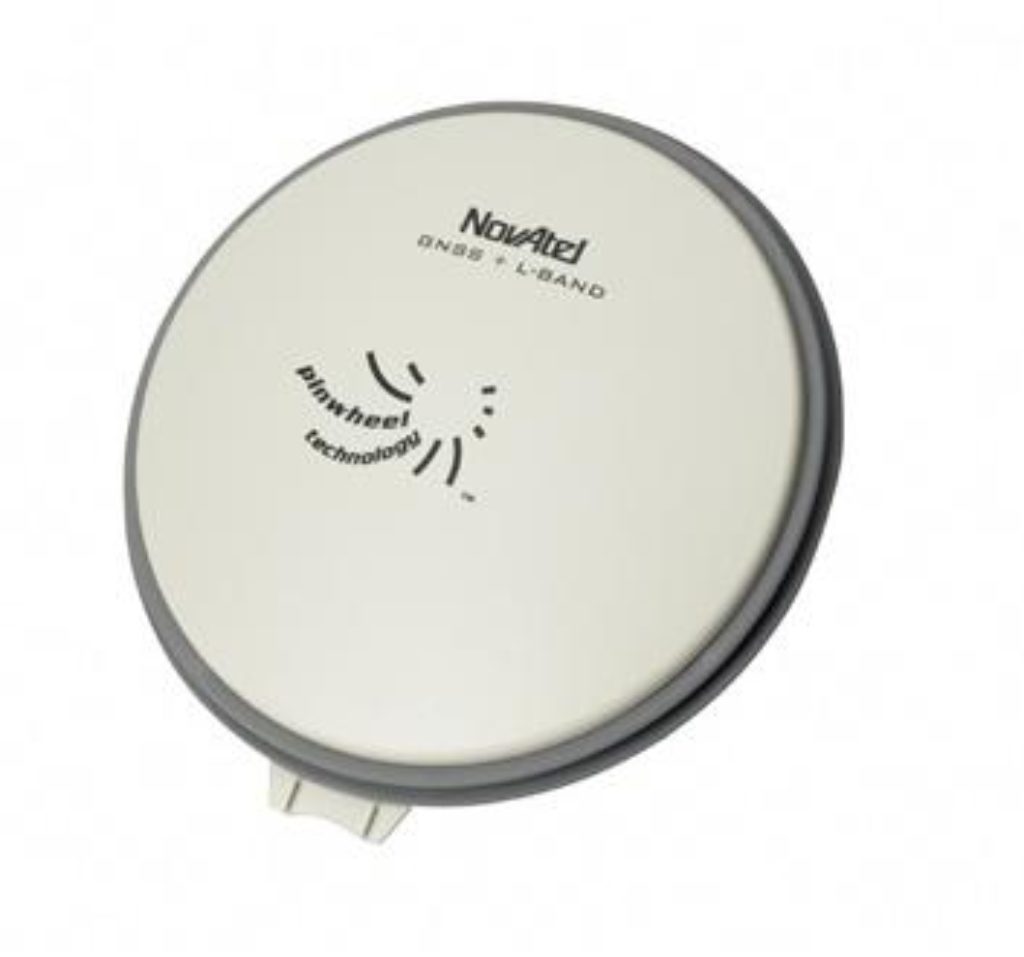

GPS-702-GG L1/L2, GPS+GLONASS, kinematic, zero-offset antenna, TNC connector (discontinued)
GPS-702-GG-N L1/L2, GPS+GLONASS, kinematic, zero-offset antenna, N connector (discontinued)
GPS-702-GGL L1/L2/L-Band, GPS+GLONASS kinematic, zero-offset antenna, TNC connector (discontinued)
GPS-702L L1/L2/L-Band, kinematic, zero-offset antenna, TNC connector (discontinued)

Single-Frequency

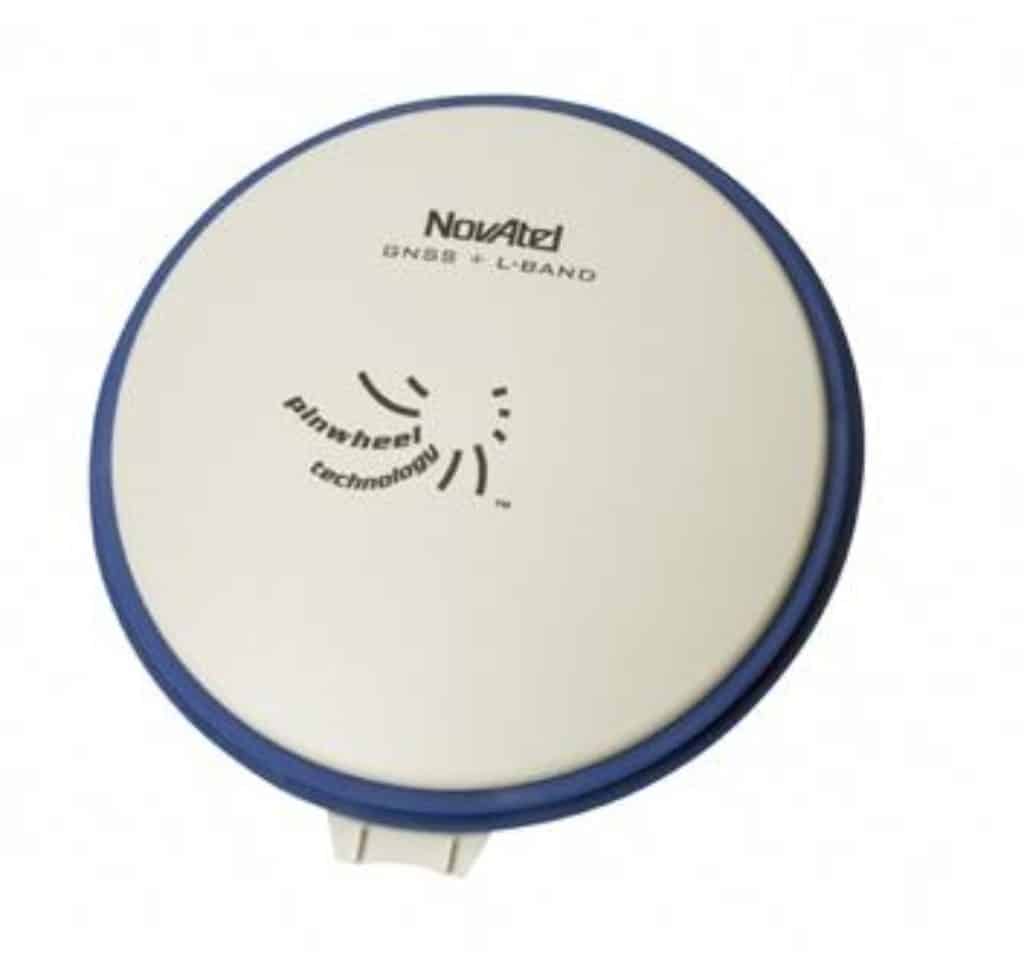

GPS-701-GG L1, GPS+GLONASS kinematic, zero-offset antenna, TNC connector (discontinued)
GPS-701-GGL L1/L-Band, GPS+GLONASS kinematic, zero-offset antenna, TNC connector (discontinued)

NovAtel Antenna Accessories

Antenna cables :

  • GPS-C006 5 meter RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • GPS-C016 15 meter RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • GPS-C032 30 meter, low-loss RF cable with straight TNC male plug connectors (for GPS-xxx and GNSS-xxx antennas), RoHS compliant
  • 60723154 15 cm RF cable with straight SMA male to TNC female connectors
  • 60723178 5 meter RF cable with straight SMA to TNC connectors
  • 60723177 2.5 meter RF cable with straight SMA male to TNC male connectors
