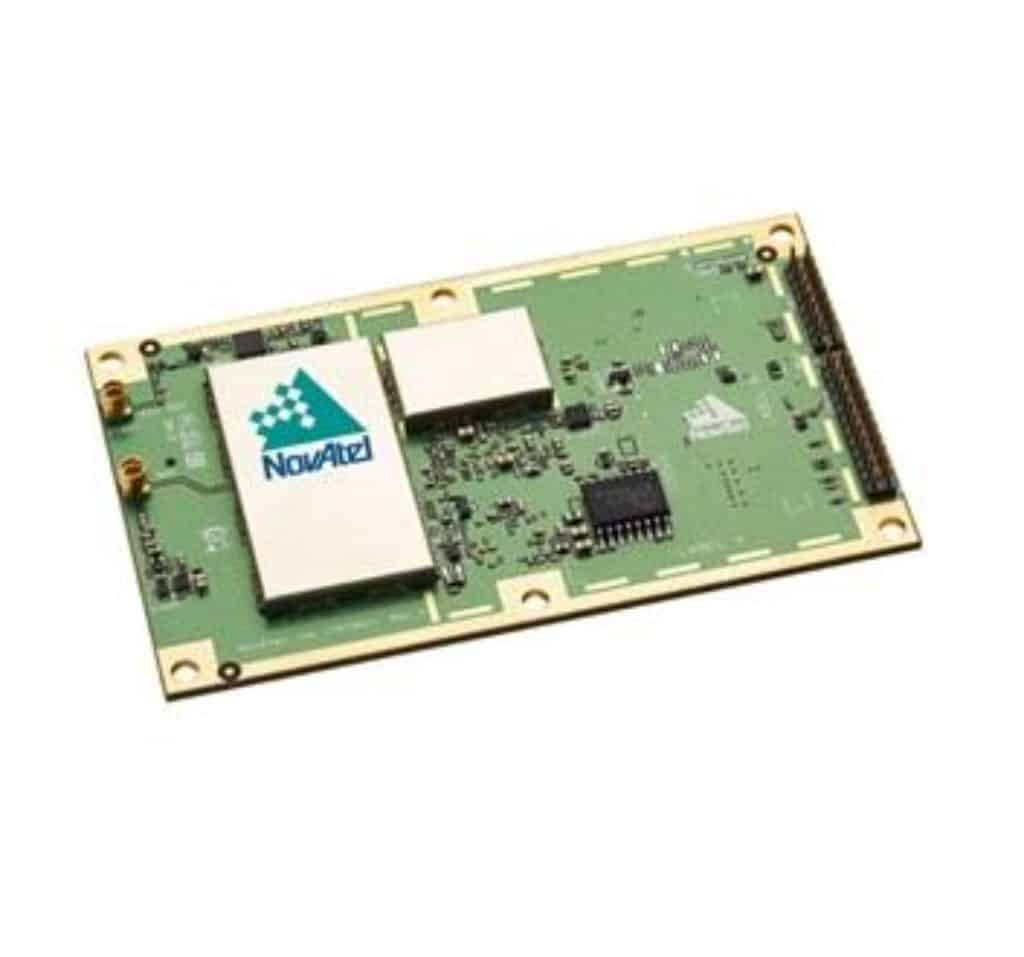

OEM729 Multi-Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The OEM 729 from NovAtel is a multi-frequency GNSS receiver that delivers precise positioning while retaining backwards compatibility with NovAtels OEM628â„¢ form factor.

SKU: OEM729 Categories: , , , Manufacturer: NovAtel

NovAtel OEM729 Multi-Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The OEM729 is a multi-frequency, backward compatible GNSS receiver. This receiver offers not only precise positioning, but also advanced interference mitigation, for performance in challenging environments. It uses a 555 channel architecture and is capable of tracking all current and upcoming signals as they become available. The OEM729 is scalable to offer sub-metre to centimetre level positioning, and is field upgradable to all OEM7 family firmware options.

Features
  • 555 channel all-constellation multi-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Serial, USB, CAN and Ethernet connectivity with web interface
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE, STEADYLINE, SPAN and ALIGN
  • Simple to integrate, industry common form factor with 20 g vibration performance rating
  • Compatible with existing OEM628 integrations
  • Supports external oscillator input

NovAtel OEM729 Multi-Frequency GNSS Receiver Data Sheet

NovAtel OEM7 Series GNSS Receivers Brochure

TRIPLE-FREQUENCY

OEM729-FFN-RNN-TBN-S4: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Navigation Grade IMU

OEM729-FFN-RYN-TBE-S4-A: OEM729, GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Navigation Grade, API

DUAL-FREQUENCY

OEM729-DDN-RNN-TBN-P2: GPS+GLO+QZSS, L1/L2, SBAS L1, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Mid Grade Tactical IMU Includes GLIDE & RAIM.

OEM729-DDN-RNN-TBN-S1: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

OEM729-DDN-RNN-TBN-S2: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Mid Grade Tactical IMU

OEM729-DDN-RNN-TBN-S2-A: OEM729, GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical, API

OEM729-DDN-RNN-TBN-S3: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, High Grade Tactical IMU

OEM729-DDN-RNN-TBN-S4: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Navigation Grade IMU

OEM729-GDN-RNN-TBE-P2: OEM729, GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical

OEM729-GDN-RNN-TBN-P2: OEM729, GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical

OEM729-GDN-RNN-TBN-S4: GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Navigation Grade IMU

OEM729-PDN-RNN-TBN-P2: OEM729, GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical

OEM729-PDN-RNN-TBN-S2: OEM729, GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical

OEM729-PDN-RNN-TBN-S4-A: OEM729, GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Navigation Grade, API

TRIPLE-FREQUENCY

OEM729-CFN-RNN-TBN: GPS/GLO/BDS, L1/L2/L5/B1/B2/B3, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-FFN-LNN-TBN: GPS/GLO/GAL/BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-FFN-LNN-TMN: GPS/GLO/GAL/BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-FFN-RNN-TBN: GPS/GLO/GAL/BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-TFN-LNN-TBN: GPS/GLO/GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point DGPS PNT,20 Hz Data Output Rate, Base Station CorrectionsPlus Measurements

OEM729-WFN-LNN-TMN: GPS/GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

DUAL-FREQUENCY
OEM729-CDN-LNN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-CDN-LNN-TMN: GPS/GLO/BDS, L1/L2/B1/B2, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-CDN-LYN-TNN: GPS/GLO/BDS, L1/L2/B1/B2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM729-CDN-LZN-TMN: GPS/GLO/BDS, L1/L2/B1/B2, Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-CDN-PNN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-CDN-RNN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-CDN-RZN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-DDN-LNN-TBN: GPS/GLO, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-DDN-LNN-TMN: GPS/GLO, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-DDN-LYN-TNN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM729-DDN-LZN-TNN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

OEM729-DDN-NZN-NNN: GPS/GLO, L1/L2, No Positioning, ALIGN Heading

OEM729-DDN-PNN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-DDN-PNN-TMN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-DDN-RNN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT,20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-GDN-LNN-TBE: GPS, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM729-GDN-LNN-TBN: GPS, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-GDN-LNN-TMN: GPS, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM729-GDN-PNN-TBN: GPS, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-GDN-RNN-TBE: GPS, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM729-GDN-RNN-TBN: GPS, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM729-PDN-RNN-TBN: GPS BDS, L1/L2/B1/B2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections, Plus Measurements


SINGLE-FREQUENCY
OEM729-DSN-LNN-TNN: GPS/GLO, L1 , Single Point DGPS PNT, 20 Hz Data Output Rate

OEM729-GSN-LNN-TBN: GPS, L1 , Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements
