OEM7700 Multi-Frequency GNSS Receiver

The OEM770 Multi-frequency GNSS receiver from NovAtel delivers robust positioning, simplifies integration and offers maximum connectivity in a small package.

SKU: OEM7700 Categories: , , , , Manufacturer: NovAtel

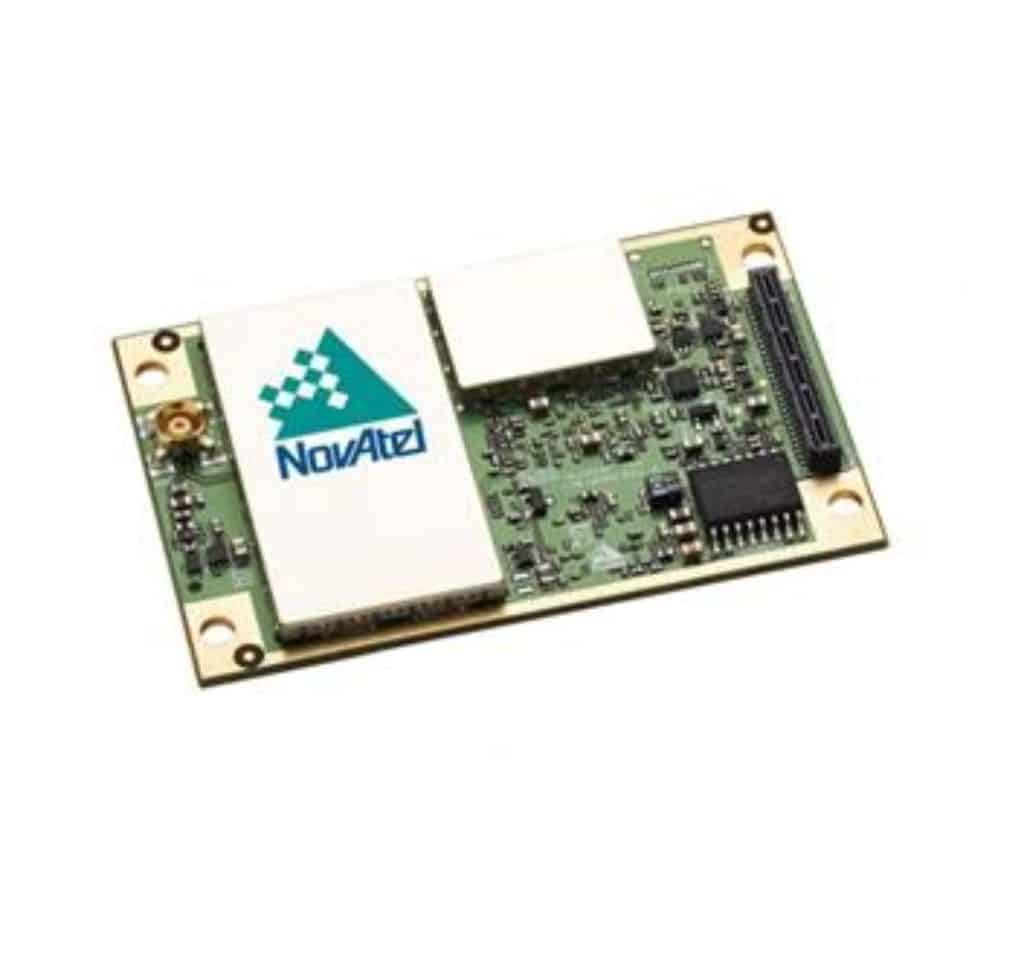

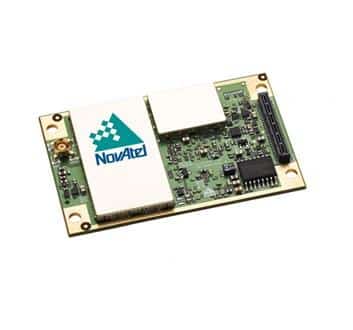

NovAtel OEM7700 GNSS Receiver

This multi-frequency GNSS receiver offers precise positioning and advanced interference mitigation for space constrained applications and challenging environments. With a 555 channel architecture, the OEM7700 can track current and upcoming GNSS constellations including GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS.

Firmware options include NovAtel CORRECT with RTK for centimeter level real-time positioning, ALIGN for precise heading and relative positioning, GLIDE for decimeter level pass-to-pass accuracy and SPAN for continuous 3D position, velocity and attitude.
FEATURES
  • 555 channel all-constellation multi-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Serial, USB, CAN and Ethernet connectivity with web interference
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE, STEADYLINE, SPAN and ALIGN
  • Simple to integrate, small form factor with 20 g vibration performance rating
  • SPAN INS functionality

NovAtel OEM7700 Multi-Frequecy GNSS Receiver Data Sheet

NovAtel OEM7 Receivers Brochure

Card

OEM7700-DSN-LNN-TBE: GPS, GLO, L1, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-DSN-LNN-TBN: GPS, GLO, L1, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-GSN-LNN-TBE: GPS, L1, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-GSN-LNN-TMN: GPS, L1 , Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections



Triple-Frequency

OEM7700-CFN-RNN-TBN: GPS, GLO, BDS, L1/L2/L5/B1/B2/B3, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DFN-LNN-TBN: GPS, GLO, L1/L2/L3/L5, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DFN-LNN-TMN: GPS, GLO, L1/L2/L3/L5, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-FFN-LNN-TBE: GPS, GLO, GAL, BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections  Plus Measurements, Interference Mitigation

OEM7700-FFN-LNN-TBN: GPS, GLO, GAL, BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections  Plus Measurements

OEM7700-FFN-LNN-TMN: GPS, GLO, GAL, BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-FFN-RNN-CBE: GPS, GLO, GAL, BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-FFN-RNN-TBN: GPS, GLO, GAL, BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-TFN-LNN-TBN: GPS, GLO, GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-TFN-LNN-TME: GPS, GLO, GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections, Interference Mitigation

OEM7700-TFN-LNN-TMN: GPS, GLO, GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-WFN-LNN-TMN: GPS, GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections



Dual-Frequency

OEM719-CDN-LYN-TMN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM719-DDN-LZN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM729-CDN-LYN-TMN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM729-DDN-LYN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM729-DDN-LZN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-CDN-LNN-TBN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-CDN-LNN-TMN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-CDN-LYN-TMN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-CDN-LYN-TNN: GPS, GLO, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM7700-CDN-PNN-TBN: GPS, GLO, BDS, L1/L2/B1/B2, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-CDN-RNN-CBN: GPS, GLO, BDS, L1/L2/B1/B2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-CDN-RNN-TBN: GPS, GLO, BDS, L1/L2/B1/B2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections  Plus Measurements

OEM7700-CDN-RYN-CBN: GPS, GLO, BDS, L1/L2/B1/B2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DDN-LNN-TBE: GPS, GLO, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-DDN-LNN-TBN: GPS, GLO, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DDN-LNN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-DDN-LYN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-DDN-LYN-TNN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM7700-DDN-LZN-TMN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-DDN-LZN-TNN: GPS, GLO, L1/L2, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

OEM7700-DDN-NZN-NNN: GPS, GLO, L1/L2, No Positioning, ALIGN Heading 1,995 1,596 OEM7700-DDN-PNN-TBN: GPS, GLO, L1/L2, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DDN-PNN-TMN: GPS, GLO, L1/L2, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-DDN-RNN-CBN: GPS, GLO, L1/L2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DDN-RNN-TBN: GPS, GLO, L1/L2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DDN-RYN-TBN: GPS, GLO, L1/L2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DSN-LNN-TMN: GPS, GLO, L1 , Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-FDN-LNN-TMN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-FDN-PNN-TMN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-FDN-RNN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-GDN-LNN-CBN: GPS, L1/L2, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-GDN-LNN-TBE: GPS, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-GDN-LNN-TBN: GPS, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-GDN-LNN-TMN: GPS, L1/L2, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-GDN-PNN-TBN: GPS, L1/L2, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-GDN-RNN-TBN: GPS, L1/L2, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-PDN-LNN-TBN: GPS, BDS, L1/L2/B1/B2, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-WDN-LNN-TMN: GPS, GAL, L1/L2/E1/E5b, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-WDN-LZN-TMN: GPS, GAL, L1/L2/E1/E5b, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections


Single-Frequency

OEM719-DSN-LNN-TMN: GPS, GLO, L1 , Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM729-DSN-LNN-TMN: GPS, GLO, L1 , Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-CSN-LNN-TMN: GPS, GLO, BDS, L1/E1/B1, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-DSN-LNN-CBN: GPS, GLO, L1, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7700-DSN-LNN-TNN: GPS, GLO, L1 , Single Point, DGPS PNT, 20 Hz Data Output Rate

OEM7700-FSN-LNN-TBE: GPS, GLO, GAL, BDS, L1/E1/B1, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7700-FSN-LNN-TBN: GPS, GLO, GAL, BDS, L1/E1/B1, Single Point, DGPS PNT, 20 Hz Data  Output Rate, Base Station Corrections Plus Measurements

OEM7700-FSN-LNN-TMN: GPS, GLO, GAL, BDS, L1/E1/B1, Single Point, DGPS PNT, 20 Hz Data Output Rate Plus Measurements Only, No Base Station Corrections

OEM7700-GSN-LNN-TBN: GPS, L1, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections ,  Measurements

OEM7700-GSN-LNN-TNN: GPS, L1, Single Point, DGPS PNT, 20 Hz Data Output Rate
