OEM7600 Dual Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The NovAtel OEM 7600 Compact Dual-Frequency GNSS Receiver delivers robust positioning plus L-band functionality in NovAtel’s smallest form factor.

SKU: OEM7600 Categories: , , , Manufacturer: NovAtel

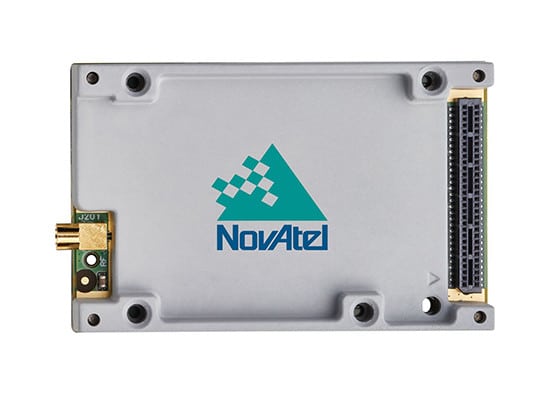

NovAtel OEM7600 Dual-Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The OEM7600 is a compact, dual-frequency Global Navigation Satellite System (GNSS) receiver that delivers robust positioning for space limited applications.

The OEM7600 offers a number of interface options for system integration plus L-Band functionality to ensure high performance GNSS positioning. It is capable of tracking all current and upcoming GNSS constellations and satellite signals, including GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS.

This receiver has up to 555 channels in its architecture.

All OEM7 firmware is field upgradable with the OEM7600. Firmware options available include NovAtel CORRECT with RTK for centimetre level real-time positioning, ALIGN for precise heading and relative positioning, GLIDE for decimetre level pass-to-pass accuracy and RAIM for increased GNSS pseudorange integrity.

FEATURES
  • 555 channel all-constellation dual-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Serial, USB, CAN and Ethernet connectivity with web interface
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE, STEADYLINE, SPAN and ALIGN
  • Simple to integrate, compact from factor with 20 g vibration performance rating
  • SPAN INS functionality


NovAtel OEM7600 GNSS Compact Dual-Frequency Receiver

NovAtel OEM7 Series GNSS Receivers Brochure

Dual-Frequency


OEM7600-CDN-LNN-TBN GPS+GLO+BDS, L1/L2/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-CDN-PNN-TMN GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-CDN-RNN-TBN GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-DDN-LNN-TBN GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-DDN-LNN-TMN OEM7600, GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-DDN-PNN-TMN GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-DDN-RNN-TBN GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-FDN-LNN-TBN GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-FDN-LNN-TME OEM7600, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

OEM7600-FDN-PNN-TMN GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-FDN-PNN-TNN OEM7600, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate

OEM7600-FDN-RNN-TBE OEM7600, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

OEM7600-FDN-RNN-TBN GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-FDN-RYN-CBE-A OEM7600, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, API

OEM7600-GDN-LNN-TBN GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-GDN-RNN-TBN GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-TDN-LNN-TBN GPS+GLO+GAL, L1/L2/E1/E5b, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-TDN-RNN-TBN GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-WDN-RNN-TBN GPS+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements



Single-Frequency


OEM7600-DSN-LNN-TMN GPS+GLO, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-DSN-LNN-TNN OEM7600, GPS+GLO, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate

OEM7600-GSN-LNN-TBN OEM7600, GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

OEM7600-GSN-LNN-TMN GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7600-GSN-LNN-TNN GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate

Dual-Frequency

OEM7600-DDN-RNN-TBE-P1: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7600-DDN-RNN-TBN-S1: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7600-FDN-RNN-TBE-P1: GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7600-FDN-RNN-TBE-S1: GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

OEM7600-GDN-RNN-TBE-P1: GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7600-GDN-RNN-TBN-S1: GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7600-PDN-RNN-TBE-S1: GPS+BDS+QZSS, L1/L2/B1/B2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU
