Item #: PWRPAK7

PwrPak7

The NovAtel PwrPak7 is a compact enclosure that delivers scalable Global Navigation Satellite System (GNSS) with internal storage and INS options.

SKU: PWRPAK7 Categories: , , , Manufacturer: NovAtel

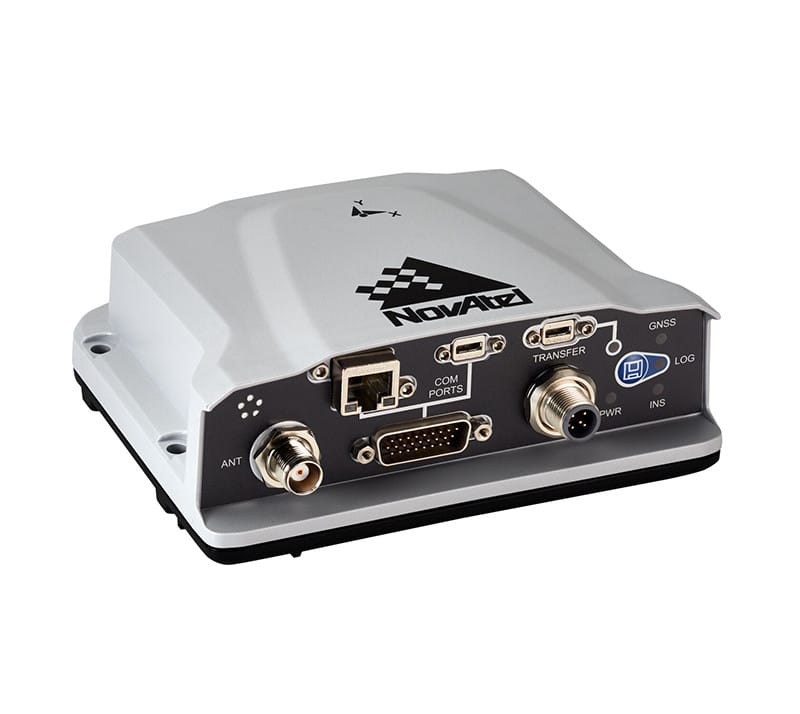

NovAtel PwrPak7™ GNSS High Precision Receiver Enclosure

The PwrPak7 is a compact enclosure that delivers scalable Global Navigation Satellite System (GNSS) with internal storage and INS options. It is capable of tracking all present and upcoming GNSS constellations and satellite signals, and it offers optional integrated INS support for continuous position, velocity and attitude through short periods of GNSS outage.

With a powerful GNSS engine, onboard NTRIP v1.0 and v2.0 client and server support, optional 16GB of internal storage and enhanced connection options including serial, USB, CAN and Ethernet, the PwrPak7 is ideal for base station or rover applications.

Expected delivery starting in summer 2017.

Features

  • Increased satellite availability with 555 channel capability and all-constellation tracking
  • GLIDE smoothing algorithm
  • RAIM for increased GNSS pseudorange integrity
  • RTK and ALIGN firmware options
  • Intelligent interference detection and mitigation
  • SPAN INS functionality

Benefits

  • Next generation NovAtel GNSS technology
  • Supports current and future GNSS signals
  • Multiple communication interfaces for easy integration and installation
  • Compact, lightweight and easy to integrate

NovAtel PwrPak7 Data Sheet

Triple-Frequency

PW7700-CFN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+BDS, L1/L2/L5/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-LNN-CMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 100 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-FFN-LNN-TBE:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections +Measurements, Interference Mitigation

PW7700-FFN-LNN-TBE-A:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, API

PW7700-FFN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-LNN-TME:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

PW7700-FFN-LNN-TMN: PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-FFN-PNN-CMN:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT PPP+Single Point+DGPS PNT, 100 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-FFN-PNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-PNN-TBN-A:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, API

PW7700-FFN-PNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-FFN-RNN-CBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-RNN-TBE: PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-FFN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-RYN-CBE:  PwrPak7 single antenna enclosure containing OEM7700GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-FFN-RYN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FFN-RZN-TBE:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 HzData Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-GFN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2/L5, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GFN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2/L5, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, Base Station Corrections

PW7700-GFN-LNN-TNN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2/L5, Single Point+DGPS PNT, 20 Hz Data Output Rate

PW7700-GFN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2/L5, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-TFN-LNN-TBE:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections +Measurements, Interference Mitigation

PW7700-TFN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-TFN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-TFN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-WFN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700GPS+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-WFN-PNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements



Dual-Frequency

PW7700-CDN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+BDS, L1/L2/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-CDN-RNN-TBE:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-CDN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-CDN-RYN-TBN:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DDN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DDN-LNN-TME:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

PW7700-DDN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-DDN-NZN-NNN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, No Positioning, ALIGN Heading

PW7700-DDN-PNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DDN-PNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-DDN-RNN-CBN:  PwrPak7 single antenna enclosure containing OEM7700GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DDN-RNN-TBE:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-DDN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DDN-RNN-TBN-A:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, API

PW7700-DDN-RYN-CBE: PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections+ Measurements, Interference Mitigation

PW7700-FDN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FDN-PNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-FDN-RNN-5BN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 5 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FDN-RNN-TBE:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-FDN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/E1/E5b/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-FDN-RYN-TBE:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7700-GDN-LNN-CBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GDN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GDN-LNN-TME:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

PW7700-GDN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-GDN-LNN-TNN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate

PW7700-GDN-LYN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-GDN-NZN-NNN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2, ALIGN Heading

PW7700-GDN-PNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GDN-PNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7700-GDN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GDN-RNN-TBN-A:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, API

PW7700-GDN-RYN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-PDN-RNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700, GPS+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-WDN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GAL, L1/L2/E1/E5b, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections



Single-Frequency

PW7700-DSN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-DSN-LNN-TNE:  PwrPak7 single antenna enclosure containing OEM7700, GPS+GLO, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Interference Mitigation

PW7700-DSN-LNN-TNN:  PwrPak7 single antenna enclosure containing OEM7700GPS+GLO, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate

PW7700-FSN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+GLO+GAL+BDS, L1/E1/B1, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GSN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7700-GSN-LNN-TMN:  PwrPak7 single antenna enclosure containing OEM7700, GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only,No Base Station Corrections

PW7700-GSN-LNN-TNN:  PwrPak7 single antenna enclosure containing OEM7700GPS, L1 , Single Point+DGPS PNT, 20 Hz Data Output Rate

PW7700-PSN-LNN-TBN:  PwrPak7 single antenna enclosure containing OEM7700. GPS+BDS, L1/B1, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements
