PwrPak7D™

NovAtel PwrPak7D™

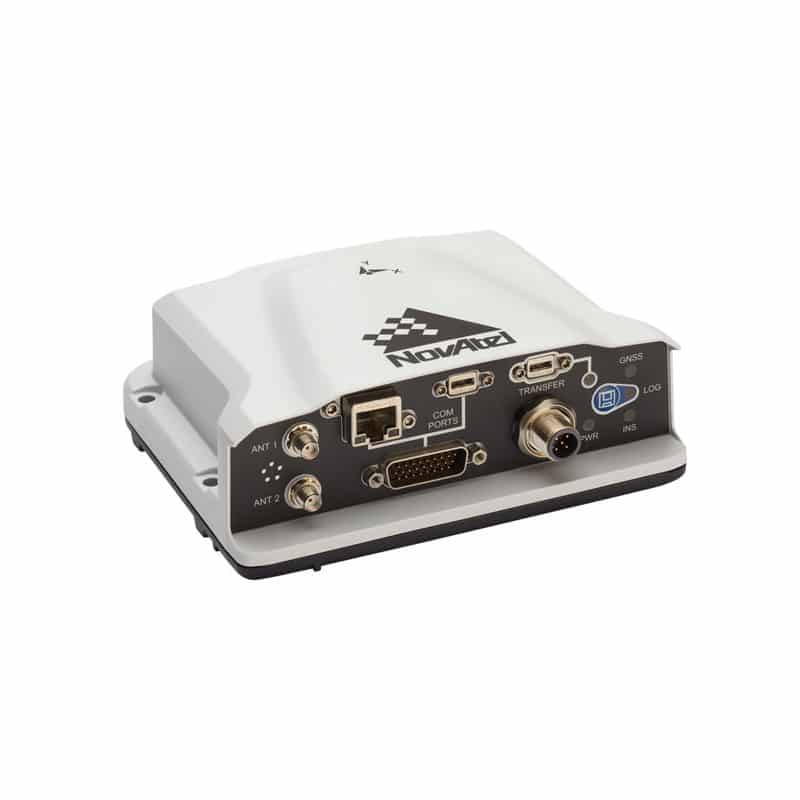

The NovAtel PwrPak7D is a high precision receiver ideal for ground vehicle, marine or aircraft based systems.

Its multi-frequency dual antenna input allows the PwrPak7D to utilize NovAtel CORRECT® with RTK and ALIGN® functionality. The PwrPak7D has a powerful OEM7® Global Navigation Satellite System (GNSS) inside and offers built-in Wi-Fi, on board NTRIP client and server support and 16 GB of internal storage.

Features

• 555 channel, all-constellation, multi-frequency positioning solution
• Multi-channel L-Band supports TerraStar correction services
• Multiple communication interfaces for easy integration and installation
• Built-in Wi-Fi support
• ALIGN heading solution
• 16 GN of internal storage
• SPAN® INS functionality

Triple Frequency
PW7720-GFD-LZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2/L5, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

Dual-Frequency

PW7720-CDD-RYN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-CDD-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-DDD-LYN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO,L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-DDD-LZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-DDD-LZN-TME PwrPak7D dual antenna enclosure containing OEM7720GPS+GLO, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

PW7720-DDD-LZN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-DDD-LZN-TNN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

PW7720-DDD-PYN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-DDD-PZN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-DDD-RYN-CBE PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate,Base Station Corrections + Measurements, Interference Mitigation

PW7720-DDD-RYN-CBN PwrPak7D dual antenna enclosure containing OEM7720GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-DDD-RYN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-DDD-RZN-TBE PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7720-DDD-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-DDN-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-FDD-LYN-CBE PwrPak7D dual antenna enclosure containing OEM7720GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7720-FDD-LYN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-FDD-LZN-TME PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections, Interference Mitigation

PW7720-FDD-LZN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-FDD-LZN-TNN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

PW7720-FDD-RYN-CBE-A PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 100 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, API

PW7720-FDD-RYN-TBE PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7720-FDD-RYN-TBE-A PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, API

PW7720-FDD-RYN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-FDD-RZN-TBE PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7720-FDD-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-FDN-RZN-TBE PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation

PW7720-FDN-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Single Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-GDD-LYN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-GDD-LZN-TBN PwrPak7D dual antenna enclosure containing OEM7720GPS, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 HzData Output Rate, Base Station Corrections + Measurements

PW7720-GDD-LZN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

PW7720-GDD-LZN-TNN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

PW7720-GDD-PZN-TMN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, Single Point+DGPS +PPP, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections. Note TerraStar C service requires GPS+GLONASS to meet published resolve times.

PW7720-GDD-RYN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-GDD-RZN-TBN PwrPak7D dual antenna enclosure containing OEM7720. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-GDN-LNN-TBN PwrPak7D dual antenna enclosure containing OEM7720 with only one antenna activated. GPS, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

PW7720-TDD-RZN-CBE PwrPak7D dual antenna enclosure containing OEM7720. GPS+GLO+GAL, L1/L2/E1/E5b, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 100 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation
