Item #: PwrPak7-E1

PwrPak7-E1

The PwrPak7-E1 contains an Epson G320 MEMS IMU to deliver NovAtel SPAN technology in an integrated, single box solution. For SPAN® (GNSS+INS capability)  see the SPAN Models tab

SKU: PwrPak7-E1 Categories: , , , Manufacturer: NovAtel

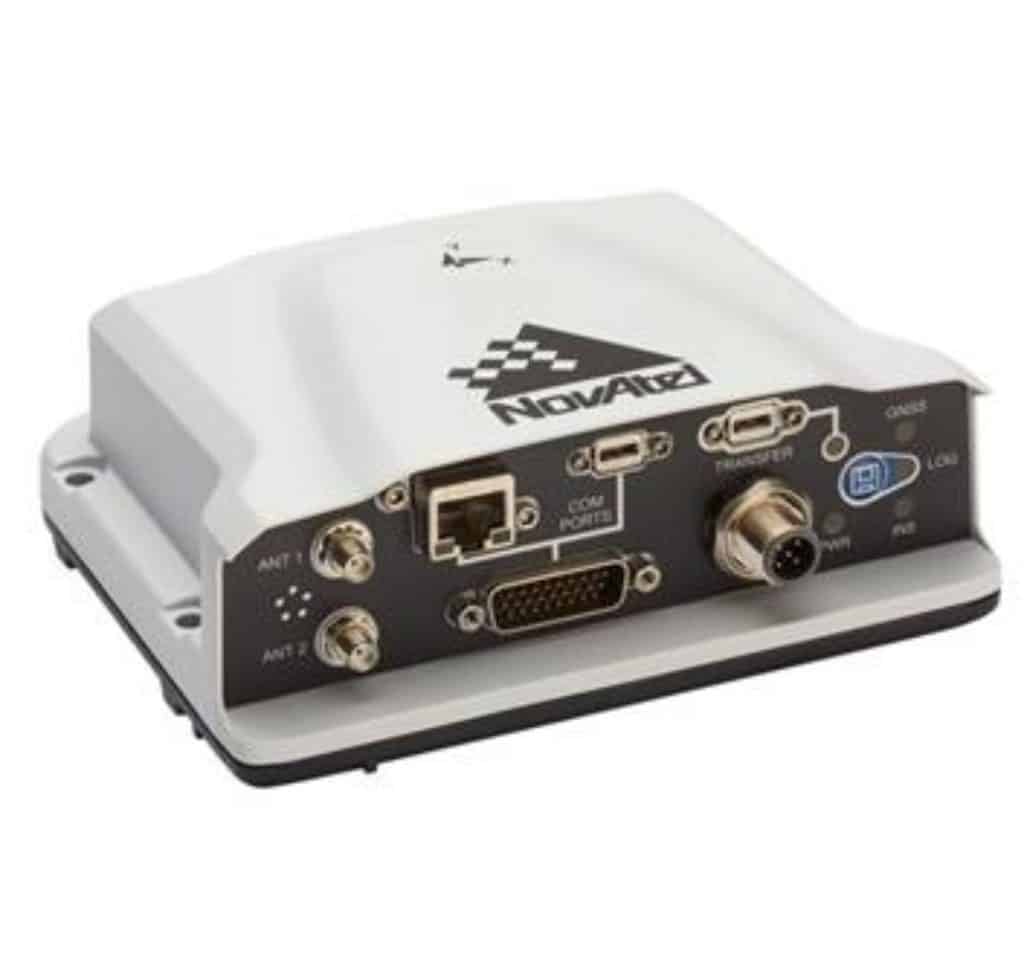

NovAtel SPAN® PwrPak7-E1

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The NovAtel PwrPak7-E1 contains an Epson G320 MEMS IMU to deliver NovAtel SPAN technology in an integrated, single box solution. It has a powerful OEM7™ GNSS engine, integrated MEMS IMU, built in Wi-Fi, on board NTRIP client and server support, and 16 GB of internal storage. The PwrPak7-E1 also has enhanced correction options including serial, USB, CAN and Ethernet.

Features

  • SPAN enabled enclosure featuring NovAtels tightly coupled GNSS INS engine
  • 555 channel, all-constellation, multi-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Commercially exportable IMU
  • Multiple communication interfaces for easy integration and installation
  • Built-in Wi-Fi support
  • 16 GB of internal storage
  • Can be paired with an external receiver to support ALIGN® GNSS azimuth aiding for low dynamic applications

NovAtel PwrPak7-E1 GNSS Internal Navigation System Data Sheet.pdf

NovAtel Span Product Line Brochure

NOVATEL SPAN PWRPAK7 MODELS (GNSS+INS capability with Integrated IMU options)

Triple-Frequency

PW7700E1-FFN-RNN-TBE-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7700E1-FFN-RNN-TBE-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN Enabled, Entry Level IMU Includes GLIDE & RAIM.

PW7700E1-FFN-RNN-TBE-S1-A PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU, API

PW7700E1-FFN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-FFN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-FFN-RYN-TBE-P1-A PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU, API

PW7700E1-GFN-RNN-TBE-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+QZSS, L1/L2/L5/L6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

PW7700E1-GFN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+QZSS, L1/L2/L5/L6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7700E1-TFN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-TFN-RNN-TBN-S3 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

PW7700E1-WFN-RZN-TBE-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GAL+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7700ME1-GFN-RNN-TBN-P1 PwrPak7M single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, no Wi-Fi, no internal storage. GPS+QZSS, L1/L2/L5/L6, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Profiles (includes Heave), Entry Level IMU Dual-Frequency

PW7700E1-CDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-CDN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-DDN-RNN-TBE-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-DDN-RNN-TBE-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

PW7700E1-DDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-DDN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-DDN-RNN-TBN-S1-A PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU, API

PW7700E1-DDN-RNN-TBN-S3 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMUGPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

PW7700E1-DDN-RNN-TBN-S4 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Navigation Grade

PW7700E1-DDN-RYN-TBE-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7700E1-FDN-RNN-TBE-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-FDN-RNN-TBE-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

PW7700E1-FDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU Includes GLIDE & RAIM.

PW7700E1-GDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-GDN-RNN-TBN-P2 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical

PW7700E1-GDN-RNN-TBN-P3 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, High grade tactical

PW7700E1-GDN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-GDN-RNN-TBN-S3 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMUGPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

PW7700E1-PDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles (includes Heave), Entry Level IMU

PW7700E1-PDN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

PW7700E1-TDN-RNN-TBN-P1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU, GPS+GLO+GAL+QZSS, L1/L2/E1/E5b, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7700E1-TDN-RNN-TBN-S1 PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+GLO+GAL+QZSS, L1/L2/E1/E5b, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

PW7700E1H-GDN-RNN-TBN-P1-H *CG* PwrPak7 single antenna enclosure containing OEM7700 with Epson G320N MEMS IMU. GPS+QZSS, L1/L2, SBAS L1, RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Relative INS + Profiles (includes Heave), Entry Level IMU, High Speed Includes GLIDE & RAIM.

PW7700ME1-GDN-RNN-TBN-P1-A PW7700ME1, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU, API

PW7700ME1-GDN-RNN-TBN-P2 PW7700ME1, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical
