PwrPak7D-E1™

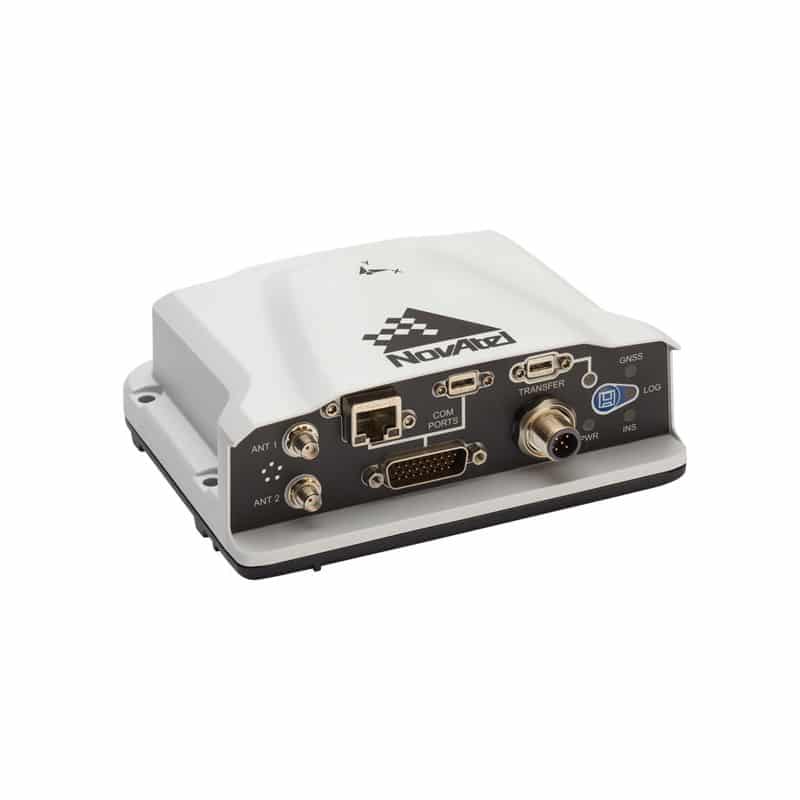

NovAtel PwrPak7D-E1 Receiver

The NovAtel PwrPak7D-E1 is a high-precision receiver that has multi-frequency, dual antenna input and provides industry leading Global Navigation Satellite System (GNSS) multi-constellation heading and position data. These capabilities make the PwrPak7D-E1 ideal for ground vehicle, marine or aircraft based systems.

NovAtel’s Synchronous Position, Attitude and Navigation (SPAN®) technology brings together GNSS positioning and inertial navigation to provide an exceptional 3D navigation solution that is stable and continuously available.

The PwrPak7D-E1 has anOEM7® GNSS engine, integrated Epson G320N MEMS IMU, built-in Wi-Fi, on board NTRIP client and server support and 16 GB of internal storage.

Features

• SPAN enabled enclosure featuring NovAtel’s tightly coupled GNSS INS engine
• Enhanced connection options including serial, USB, CAN and Ethernet
• 555 channel, all-constellation, multi-frequency positioning solution
• Multi-channel L-Band supports TerraStar correction services
• Multiple communication interfaces for easy integration and installation
• Built-in Wi-Fi support
• 16 GB of internal storage
• ALIGN® heading solution

Dual-Frequency

List Dealer MPQ

PW7720E1-CDD-RYN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-CDD-RYN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-CDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-CDD-RZN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-CDD-RZN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-DDD-RYN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-DDD-RYN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-DDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-DDD-RZN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-DDD-RZN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-FDD-RYN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-FDD-RYN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements, SPAN enabled, Entry level IMU

PW7720E1-FDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-FDD-RZN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-FDD-RZN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements, SPAN enabled, Entry level IMU

PW7720E1-GDD-RYN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-GDD-RYN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-GDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-GDD-RZN-TBN-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-GDD-RZN-TBN-S1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled, Entry level IMU

PW7720E1-PDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, BDS, L1/L2/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-TDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GLO, GAL, L1/L2/E1/E5b, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

PW7720E1-WDD-RZN-TBE-P1: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. GPS, GAL, L1/L2/E1/E5b, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

Single-Frequency

PW7720E1-GSN-NNN-NNN: PwrPak7D dual antenna enclosure containing OEM7720 with Epson G320N MEMS IMU. Hardware only, requires firmware upgrade to produce output
