Item #: asteRx-m2a UAS

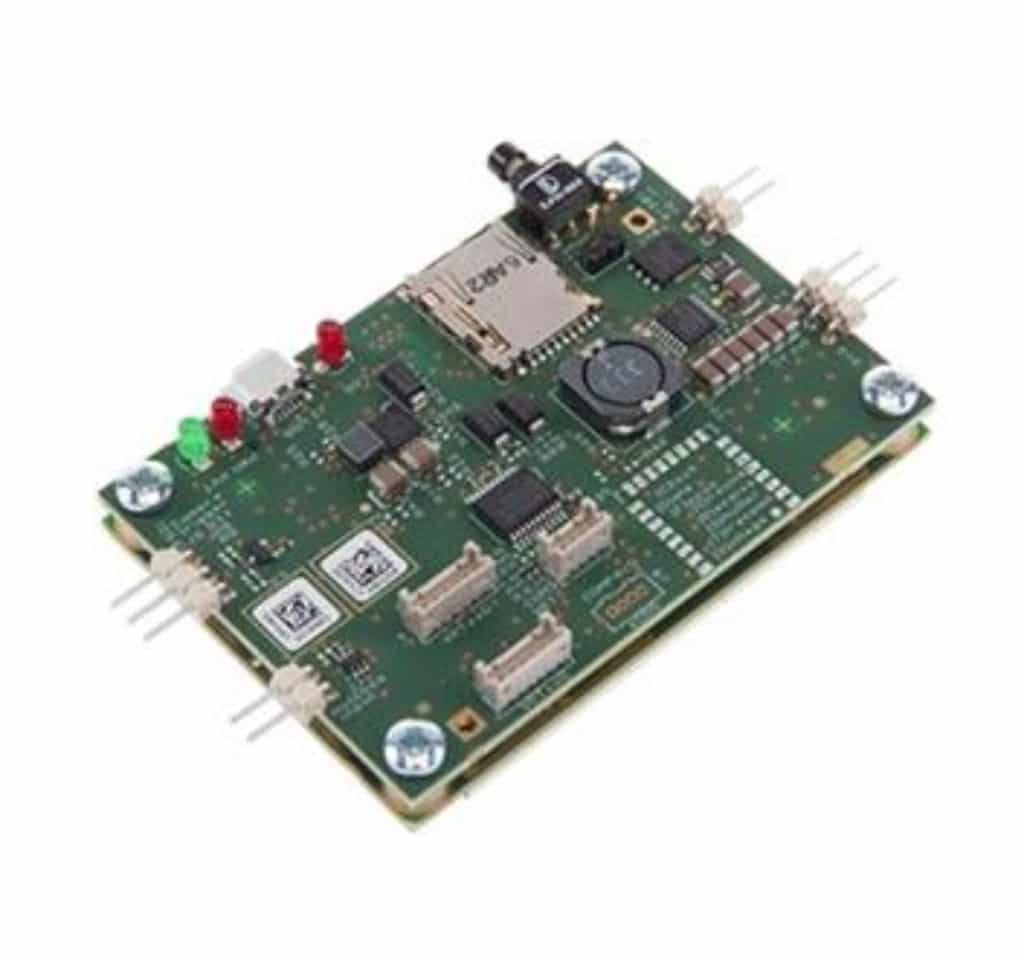

AsteRx-m2a UAS Receiver

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

The Septentrio AsteRx-m2a UAS is specifically designed for straightforward integration into UAS applications, providing centimeter-level RTK positioning and accurate heading for just over 1 W. It features standard connections to Pixhawk and ArduPilot, as well as event marker inputs to accurately timestamp camera shutter events.

SKU: asteRx-m2a UAS Categories: , , , Manufacturer: Septentrio

AsteRx-m2a UAS Receiver

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

The Septentrio AsteRx-m2a UAS is specifically designed for straightforward integration into UAS applications providing centimeter-level RTK positioning and accurate heading for just over 1 W. It features standard connections to Pixhawk and ArduPilot as well as event marker inputs to accurately time stamp camera shutter events.

Designed for UAS
The AsteRx-m2a UAS is designed for easy integration into any system. Standard connectors connect directly to your autopilot (e.g. Pixhawk) and the wide 6-30 V input power range allows powering the receiver directly from the UAS power bus. Event markers can accurately synchronize a camera shutter with GNSS time. The command interface is fully documented and an SDK is provided to help create professional custom applications.

Interference Robustness
The AsteRx-m2a UAS features AIM : one of the most advanced on-board interference mitigation technologies on the market today. It can suppress the widest variety of interferers, from simple continuous narrow band signals to the most complex wideband and pulsed jammers. The RF spectrum can be viewed in real-time in both time and frequency domains.

No need for Ground Control Points
The AsteRx-m2a UAS works seamlessly with GeoTagZ software and its SDK library for PPK (Post Processed Kinematic) offline processing. This gives RTK accuracy without the need for either Ground Control Points or a real-time datalink.

Ultra-low power design
The AsteRx-m2a UAS provides RTK positioning at the lowest power consumption of any comparable device on the market. This means lower heat dissipation, simpler integrations and longer operation on a single battery charge.

Key Features

  • Multi-constellation, multi-frequency all-in-view satellite tracking
  • Centimeter-level (RTK) position accuracy with or without a real-time datalink
  • Heading output for orientation or INS integrations
  • AIM anti-jamming and monitoring system
  • Camera shutter synchronization
  • Plug compatible with ArduPilot/Pixhawk

Septentrio AsteRx-m2a UAS Receiver with RTK Accuracy and Easy Integration Into Autopilot Systems (Pixhawk and ArduPilot)

GPS Spoofing: Is Your Receiver Ready for an Attack?

Septentrio AsteRx-M2 EOL Notice

EOL Models Affected

Short Description Part Number
AsteRx-m2 OEM FULL 410210B1695
AsteRx-m2 OEM C 410210B1694
AsteRx-m2 OEM M 410210B1692
AsteRx-m2 OEM Base 410210B1696
SM-AsteRx-m2 OEM 410210B1691
AsteRx-m2 UAS FULL 410230B1705
AsteRx-m2 UAS RTK & GTZ 410230B1708
AsteRx-m2 UAS C 410230B1704
AsteRx-m2 UAS GTZ 410230B1707
AsteRx-m2 UAS M 410230B1702
AsteRx-m2 UAS Base 410230B1706
AsteRx-m2 UAS Sx 410230B1709
SM-AsteRx-m2 UAS 410230B1701
AsteRx-m2a OEM FULL 410233B1755
AsteRx-m2a OEM C 410233B1754
AsteRx-m2a OEM M 410233B1752
SM-AsteRx-m2a OEM 410233B1751
AsteRx-m2a UAS RTK & GTZ 410238B1768
AsteRx-m2a UAS GTZ 410238B1767
AsteRx-m2a UAS M 410238B1762
SM-AsteRx-m2a UAS 410238B1761

Products Replacement

Short Description Parts Number
AsteRx-m3 ProBase 410356
AsteRx-m3 Pro 410354
AsteRx-m3 Pro+ 410355
AsteRx-m3 Sx 410357
Robotics interface board 410358
