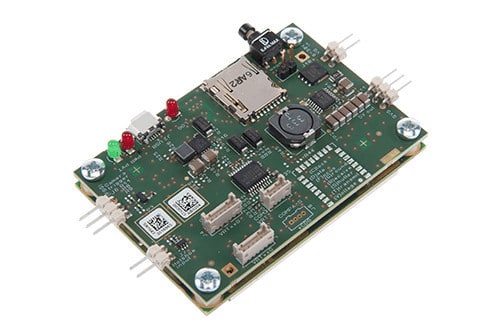

AsteRx-m2 UAS GNSS Receiver

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

The Septentrio AsteRx-m2 UAS GNSS receiver was designed for integration into UAS applications requiring ultra-low power and centimeter-level RTK positioning. It has standard connections to Pixhawk and Ardupilot and wide range 6-30V power input, plus as an event marker input for time stamping camera shutter events.

SKU: 410230B Categories: , , , , Manufacturer: Septentrio

AsteRx-m2 UAS GNSS Receiver from Septentrio

With Connections for Pixhawk and ArduPilot

This Manufacturer has issues an end of life (EOL) notice for this product. The last day to place an order for this product is February 28, 2022. Please see the related product(s) for replacement options or contact us.

The AsteRx-m2 UAS GNSS receiver from Septentrio was designed for straightforward integration into UAS applications requiring ultra-low power and centimeter-level RTK positioning. It has standard connections to Pixhawk and Ardupilot and a wide range 6-30V power input, plus as an event marker input for time stamping camera shutter events.

Designed for UAS

The AsteRx-m2 UAS was designed and built for easy integration into any UAS system. Standard connectors directly connect to your autopilot (e.g. Pixhawk) and the wide 6-30 V input power range allows you to use the power directly from the vehicle power bus.

Interference Robustness

The AsteRx-m2 UAS features AIM ,  advanced onboard interference mitigation technology. It can suppress a wide variety of interferers, from simple continuous narrowband signals, to the most complex wideband and pulsed jammers. The RF spectrum can be viewed in real-time in both time and frequency domains.

No Need for Ground Control Points

The AsteRx-m2 UAS works seamlessly with GeoTagZ software and its SDK library for RPK (ReProcessed Kinematic) offline processing. This gives RTK accuracy without the need for ground control points or a real-time datalink.

Ultra-Low Power Design

The AsteRx-m2 UAS provides RTK positioning at the lowest power consumption of any comparable device on the market.

KEY FEATURES

  • Multi-constellation, multi-frequency all-in-view satellite tracking
  • Centimetre-level (RTK) position accuracy with or without real-time datalink
  • AIM unique anti-jamming system
  • Camera shutter synchronisation
  • Plug compatible with ArduPilot/Pixhawk

AsteRx-m2 UAS Receiver Data Sheet

Jam Proofing Drones

Targeting Interference with AIM Technology

Drone Inspections go nuclear with GPS and RADAR

EOL Models Affected

Short Description Part Number
AsteRx-m2 OEM FULL 410210B1695
AsteRx-m2 OEM C 410210B1694
AsteRx-m2 OEM M 410210B1692
AsteRx-m2 OEM Base 410210B1696
SM-AsteRx-m2 OEM 410210B1691
AsteRx-m2 UAS FULL 410230B1705
AsteRx-m2 UAS RTK & GTZ 410230B1708
AsteRx-m2 UAS C 410230B1704
AsteRx-m2 UAS GTZ 410230B1707
AsteRx-m2 UAS M 410230B1702
AsteRx-m2 UAS Base 410230B1706
AsteRx-m2 UAS Sx 410230B1709
SM-AsteRx-m2 UAS 410230B1701
AsteRx-m2a OEM FULL 410233B1755
AsteRx-m2a OEM C 410233B1754
AsteRx-m2a OEM M 410233B1752
SM-AsteRx-m2a OEM 410233B1751
AsteRx-m2a UAS RTK & GTZ 410238B1768
AsteRx-m2a UAS GTZ 410238B1767
AsteRx-m2a UAS M 410238B1762
SM-AsteRx-m2a UAS 410238B1761

Products Replacement

Short Description Parts Number
AsteRx-m3 ProBase 410356
AsteRx-m3 Pro 410354
AsteRx-m3 Pro+ 410355
AsteRx-m3 Sx 410357
Robotics interface board 410358

Septentrio AsteRx-M2 EOL Notice
