NovAtel SPAN GNSS Inertial Navigation Systems

NovAtel’s SPAN® technology couples OEM precision GNSS receivers with robust Inertial Measurement Units (IMUs) for reliable, continuously available, position, velocity and attitude — even through short time periods when satellite signals are blocked or unavailable.

SKU: SPAN Categories: , , , Manufacturer: NovAtel

NovAtel’s SPAN® Technology

NovAtel’s SPAN technology provides continuous 3D position, velocity and attitude determination even when satellite reception may be compromised for short periods of time.

SPAN® integrates NovAtel’s industry leading Global Navigation Satellite System (GNSS) technology with Inertial Measurement Units (IMUs) to create a tightly coupled GNSS INS solution at data rates up to 200 Hz. A range of receiver, IMU and antenna options are available to meet accuracy and size requirements for nearly any application.

The accuracy of SPAN® products can be optimized with best-in-class post-processing software from our Waypoint® Products Group.

HOW SPAN WORKS

GNSS Solution
With GNSS only positioning, navigating becomes unreliable or impossible when satellites are blocked by obstructions such as trees or buildings.

Drifting INS Solution
In the absence of an external reference, the Inertial Navigation System (INS) solution will drift over time due to accumulated errors in the IMU data.

True Path

SPAN solution
Continuously available and following the true path

SATELLITE Line-of-Sight

When combined, the two navigation techniques augment and enhance each other to create a powerful positioning system. The absolute position and velocity accuracy of the GNSS is used to compensate for the errors in the IMU measurements. The stable relative position of the INS can be used as a bridge to span times when the GNSS solution is degraded or unavailable. Data is available in real-time or can be post-processed for workflows requiring the most robust solution possible and additional quality control.

Novatel street image of how SPAN works





NovAtel SPAN Brochure: Tightly Coupled GNSS INS Technology Performance for Exceptional 3D, Continuous Position, Velocity & Attitude



SPAN on PwrPak7™
The NovAtel PwrPak7 is a compact enclosure that delivers scalable Global Navigation Satellite System (GNSS) with internal storage and INS options.

SPAN on PwrPak7D™
The PwrPak7D is a high precision receiver ideal for ground vehicle, marine or aircraft based systems.

SPAN on PwrPak7-E1™
The PwrPak7-E1 contains an Epson G320 MEMS IMU to deliver NovAtel SPAN technology in an integrated, single box solution

SPAN on PwrPak7D-E1™
The PwrPak7-E1 contains an Epson G320 MEMS IMU to deliver NovAtel SPAN technology in an integrated, single box solution.

SPAN-MEMS IMUs
For space constrained applications, SPAN systems that use our interface card to couple SPAN GNSS receiver boards to a range of light weight, compact MEMS IMUs

IMU-CPT
Stand-alone OEM IMU based on NovAtel's SPAN-CPT. Comprised of fiber-optic gyros and MEMS accelerometers

IMU-KVH1750
IMU-KVH1750 with NovAtel's GNSS Technology Provides continuous 3D Position, Velocity and Attitude Solution

IMU-LN200
Tactical Grade, Low Noise IMU Combines with NovAtel's GNSS Technology to Provide 3D Position, Velocity and Attitude Solution

SPAN IMU-ISA-100C
High performance tactical grade IMU combines with NovAtel's GNSS technology to deliver 3D position, velocity and attitude solutions

UIMU-H58
Economical, tactical grade OEM IMUs from Honeywell

UIMU-H62
Economical, tactical grade OEM IMUs from Honeywell

A SPAN GNSS/INS system is comprised of a NovAtel GNSS receiver plus an Inertial Measurement Unit (IMU). SPAN supporting GNSS receivers include:

SPAN on OEM7700 Receivers
Multi-frequency GNSS receiver delivers robust positioning, simplifies integration and offers maximum connectivity in a small package.

SPAN on OEM7600 Receivers
Multi-frequency GNSS receiver delivers precise positioning in a very small form factor.

SPAN on OEM7720 Receivers
Dual-antenna input, multi-frequency GNSS receiver offers precise positioning plus SPAN functionality for space constrained applications.

SPAN on OEM719 Receivers
Multi-frequency GNSS receiver delivers precise positioning while retaining backwards compatibility with NovAtels popular OEM615 and OEM617 form factors.

SPAN on OEM729 Receivers
Multi-frequency GNSS receiver delivers precise positioning while retaining backwards compatibility with NovAtels OEM628 form factor.

All of NovAtel's OEM7 receivers offer advanced interference mitigation features. The receivers are scalable to offer sub-meter to centimeter-level positioning and are field upgradable to all OEM7 family software options.

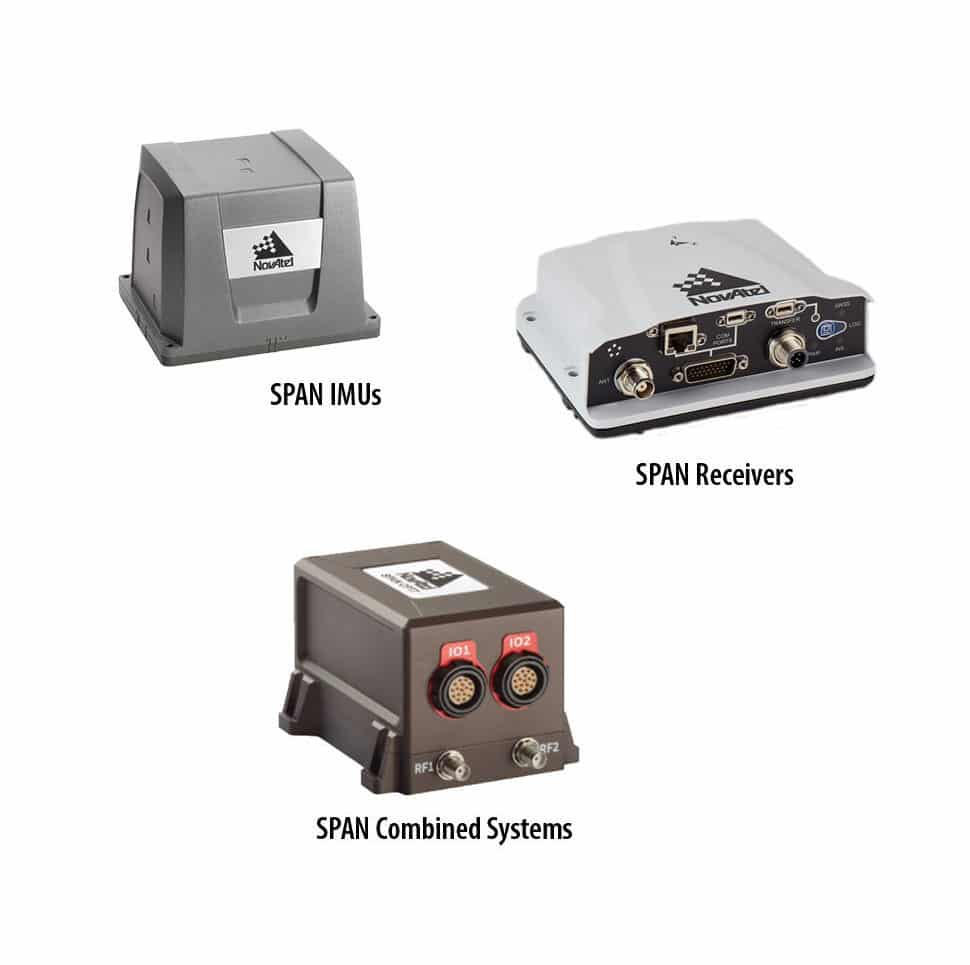

NovAtel SPAN Combined Systems

Single enclosure GPS/INS systems are ideal for space constrained applications, integrating GPS receiver technology with Fiber Optic Gyros (FOG) and Micro Electrical Mechanical Systems (MEMS) accelerometer inertial components in a single compact unit. Tight coupling of the GPS and INS technologies in one enclosure optimizes the raw GPS and Inertial Measurement Unit (IMU) data, delivering a superior position, velocity and attitude solution.

SPAN-CPT7
Single Enclosure GNSS INS Receiver powered by NovAtel OEM7 technology with MEMS IMU unit for  3D position, velocity and attitude

PwrPak7D-E1
A compact dual antenna enclosure that delivers NovAtels leading SPAN GNSS INS technology.

PwrPak7-E1
The PwrPak7-E1 is a compact OEM7 enclosure that delivers NovAtel's leading SPAN GNSS INS technology.
